APPLICATION

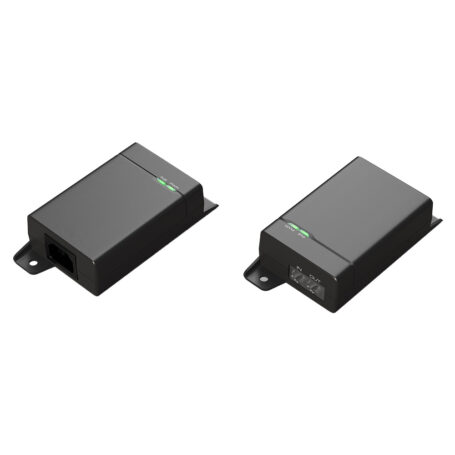

The PA-1300-86LV-TG is a compact, high-efficiency indoor Power over Ethernet (PoE) injector designed for powering 802.3at-compliant devices over a single Ethernet cable. Delivering a constant 54V DC output at 30W, it supports multi-gigabit data rates up to 10Gbps when used with Cat6a shielded cabling, making it ideal for powering next-generation PoE-enabled access points, IP cameras, and IoT gateways.
This injector offers plug-and-play deployment with built-in safeguards including overvoltage, overcurrent, short circuit, and over-temperature protections. It features IEEE 802.3at compliance (backward compatible), automatic device detection, and LED indicators for power and PoE status. Designed with wide AC input (90–264Vac) and energy efficiency Level VII compliance, it ensures reliable performance while minimizing energy consumption.
With a rugged housing measuring 106 x 70 x 35 mm, natural convection cooling, and compliance with global safety and EMC standards including IEC/EN 62368-1, FCC Part 15 Class B, and surge immunity up to ±6KV, the PA-1300-86LV-TG offers dependable performance in enterprise and industrial networking environments.
feature list
Complies with IEEE 802.3at standard and is backward compatible
Supports 10Gbps data rates using Cat6a shielded cable
Built-in LED indicators
Automatic detection and protection
High lightning surge immunity: up to ±6KV on PoE output
Over-voltage, over-current, short-circuit, and over-temperature protection with auto recovery
Natural convection cooling design (fanless)
High reliability with MTBF > 200,000 hours at 25°C
Wide altitude operation support up to 5000 meters
Comprehensive EMC compliance including EN55032, EN55035, and IEC61000 standards
