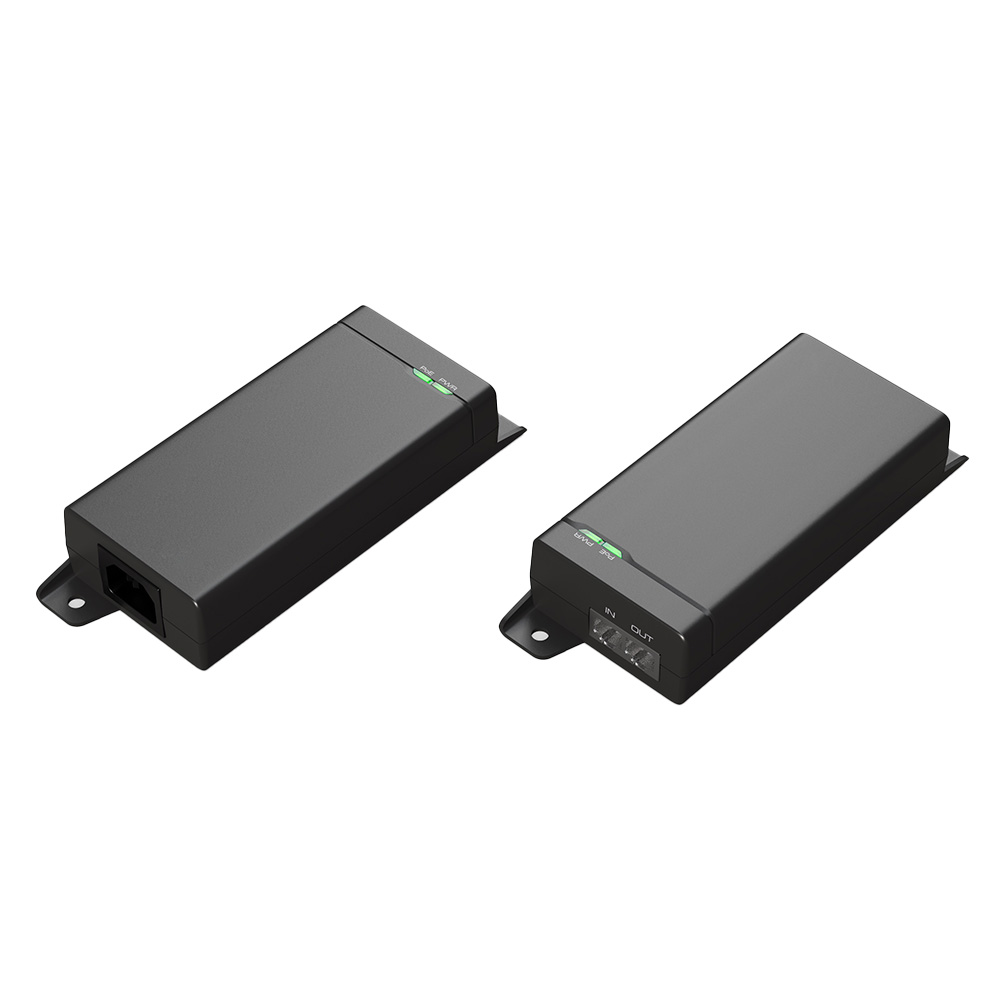

PA-1600-86LV-TG

The PA-1600-86LV-TG 60 W multi-gigabit PoE injector accepts a universal 90–264 Vac input and provides a regulated 54 Vdc output at up to 1.11 A. Shielded RJ45 connections support 1 Gbps, 2.5 Gbps, 5 Gbps and 10 Gbps data transmission, with shielded Cat6a cabling recommended for maximum performance. Automatic powered-device detection and integrated overvoltage, overcurrent, short-circuit and overtemperature protection support reliable operation. The fanless, naturally cooled design is suited to PTZ cameras, wireless access points, IoT gateways, access-control equipment and other remotely installed network devices.

Category:
Brands:

Access detailed specifications, performance data, and technical drawings for the PA-1600-86LV-TG in our comprehensive datasheet.

Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

We’re online and ready to chat.

PA-1600-86LV-TG

The LITEON PA-1600-86LV-TG is a single-port, multi-gigabit PoE injector that delivers up to 60 W of power and Ethernet data through one network cable. Supporting IEEE 802.3bt, backward compatibility with IEEE 802.3at and data transmission rates up to 10 Gbps, it provides a practical power solution for remote industrial and network-connected equipment.

FEATURES

Output Power 60W
Output Voltage 54V dc
PoE Standard IEEE 802.3bt
Data Rate Support 10Gbps
Cooling Method Convection
Certifications IEC/EN/UL 62368-1
