PA-1900-86LV-TG

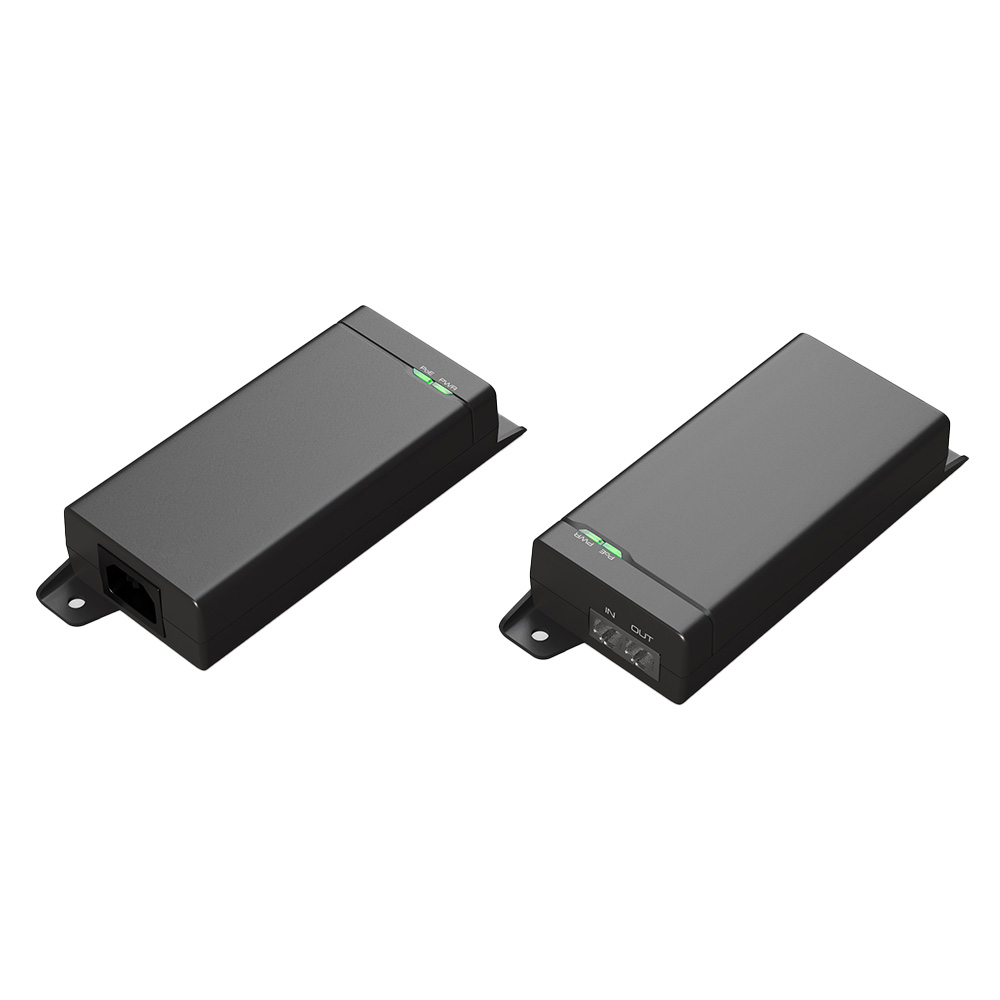

The PA-1900-86LV-TG 90 W PoE injector accepts a universal 90–264 Vac input and delivers 55 Vdc at up to 1.67 A through a shielded RJ45 connection. It supports IEEE 802.3bt and is backward compatible with IEEE 802.3at powered devices. Data transmission rates of up to 10 Gbps are supported when used with suitable shielded Cat6a cabling. Automatic powered-device detection and integrated overvoltage, overcurrent, short-circuit and overtemperature protection support safe operation. Natural convection cooling, high surge capability and compliance with IEC, EN and UL 62368-1 make the injector suitable for PTZ cameras, wireless access points, industrial networking equipment and smart-building systems.

Category:
Brands:

Access detailed specifications, performance data, and technical drawings for the PA-1900-86LV-TG in our comprehensive datasheet.

Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

We’re online and ready to chat.

PA-1900-86LV-TG delivers 90W of output power at 55Vdc, supporting IEEE 802.3bt with 10Gbps data transmission. It ensures efficient and safe operation with built-in overvoltage, overcurrent, and thermal protection. Designed for powering PTZ cameras, wireless access points, and industrial networking applications. Certified to IEC/EN/UL 62368-1, FCC, and energy efficiency level VII.

FEATURES

Output Power 90W
Output Voltage 55V dc
PoE Standard IEEE 802.3bt
Data Rate Support 10Gbps
Cooling Method Convection
Certifications IEC/EN/UL 62368-1
