TFT Displays
Showing 1–16 of 63 results
-
1.77″ QQVGA TFT LCD Display
Size: 1.77″
Active Area: 28.03 x 35.04 mm
Resolution: 128 x 160
Interface: MCU 8080 / SPI-3 wire
Brightness: 200 cd/m²
Touch Panel: None
Operating Temperature: -20°C to 70°C -
10.1″ HDMI TFT LCD Display
Size: 10.1″
Active Area: 216.95 x 135.6 mm
Resolution: 1280 x 800
Interface: HDMI
Brightness: 500-1400 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -30°C to +80°C -
10.1″ WSVGA IPS TFT LCD Display
Size: 10.1″
Active Area: 222.72 x 125.28 mm
Resolution: 1024 x 600
Interface: 8-bit LVDS
Brightness: 350-1000 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -20°C to +70°C -
10.1″ WSVGA TFT LCD Display
Size: 10.1″
Active Area: 222.72 x 125.28 mm
Resolution: 1280 x 800
Interface: TTL 24-bit RGB & 8-bit LVDS
Brightness: 300-1200 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -20°C to +70°C -
10.1″ WXGA IPS TFT LCD Display
Size: 10.1″
Active Area: 216.95 x 135.6 mm
Resolution: 1280 x 800
Interface: 8-bit LVDS & MIPI
Brightness: 350-1400 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -30°C to +80°C -
10.1″ Open Frame Monitor
Size: 10.1″
Resolution: 1280 x 800
Brightness: 1000 cd/m²
Interface: LVDS 40-pin
Touch Options: PCAP
Operating Temperature: -30°C to +85°C -
10.1″ Wide Operating Temperature Display
Size: 10.1″
Resolution: 1280 x 800
Brightness: 700-1200 cd/m²
Interface: LVDS
Touch Options: PCAP
Operating Temperature: -30°C to +80°C -
10.1″ WUXGA IPS TFT LCD Display
Size: 10.1″
Active Area: 216.81 x 135.5 mm
Resolution: 1920 x 1200
Interface: 8-bit LVDS
Brightness: 500-1500 cd/m²
Touch Panel Options: PCAP / Resistive
Operating Temperature: -20°C to +70°C -
10.1″ WXGA USB-C Display
Size: 10.1″
Active Area: 216.95 x 135.6 mm
Resolution: 1280 x 800
Interface: USB-C
Brightness: 550 – 700 cd/m²
Touch Panel Options: PCAP / Resistive
Operating Temperature: 0°C to +70°C -
10.4″ Open Frame Monitor
Size: 10.4″
Active Area: 211.2 x 158.4 mm
Resolution: 1024 x 768
Interface: HDMI 1.4 / USB Touch / Audio Out
Brightness: 1300 cd/m²
Touch Panel: PCAP (USB)
Operating Temperature: -30°C to +70°C -
10.4″ SVGA TFT LCD Display
Size: 10.4″
Active Area: 211.20 x 158.4 mm
Resolution: 800 x 600
Interface: 8-bit LVDS
Brightness: 350-400 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -20°C to +70°C -
10.4″ XGA IPS TFT LCD Display
Size: 10.4″
Active Area: 211.20 x 158.4 mm
Resolution: 1024 x 768
Interface: 8-bit LVDS
Brightness: 500-1000 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -30°C to +85°C -
10.4″ HDMI TFT LCD Display
Size: 10.4″
Active Area: 211.20 x 158.4 mm
Resolution: 1024 x 768
Interface: HDMI
Brightness: 800-2000 cd/m²
Touch Panel Options: PCAP / Resistive
Operating Temperature: -30°C to +80°C -

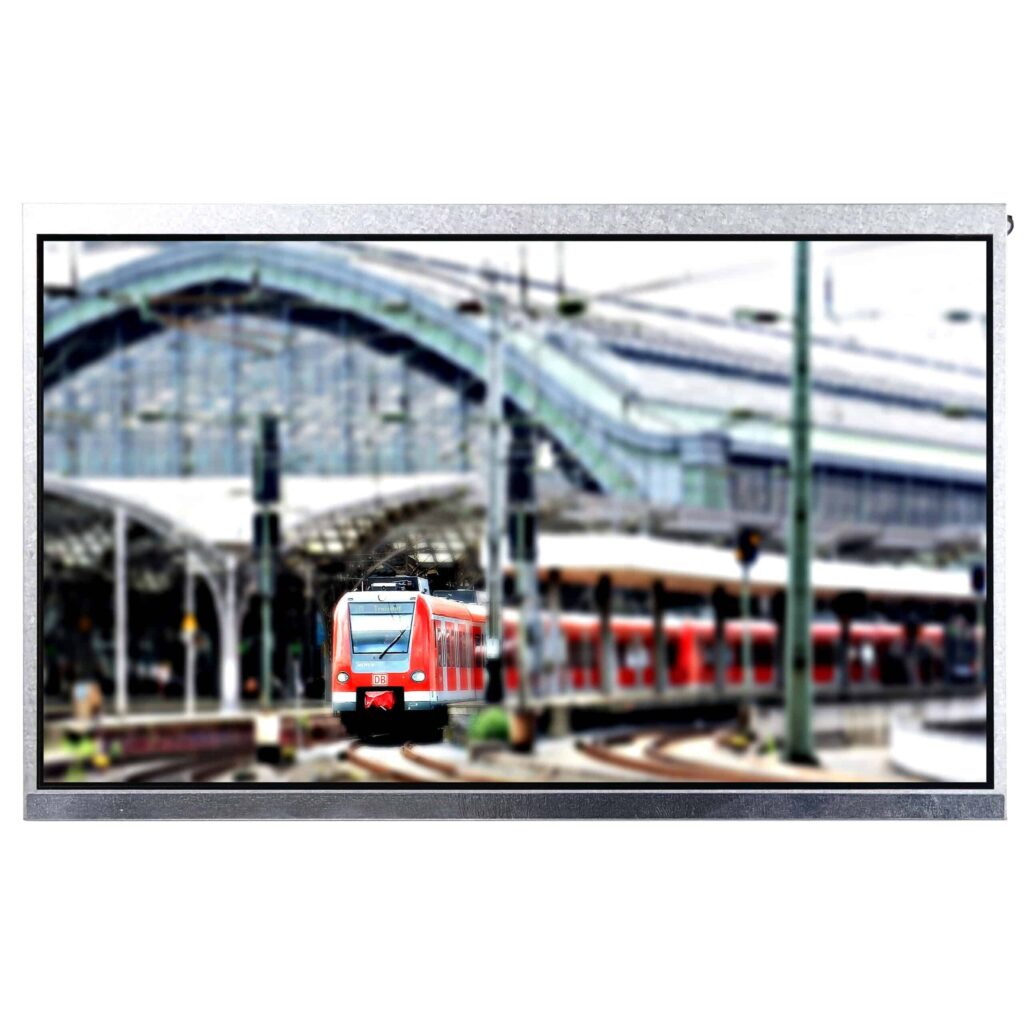

11.6″ FHD IPS TFT LCD Display
Size: 11.6″
Active Area: 256.32 x 144.18 mm
Resolution: 1920 x 1080
Interface: 8-bit LVDS & eDP
Brightness: 900-1500 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -20°C to +70°C -
11.6″ HDMI TFT LCD Display
Size: 11.6″
Active Area: 256.32 x 144.18 mm
Resolution: 1920 x 1080
Interface: HDMI
Brightness: 900-1500 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -20°C to +70°C -
12.1″ IPS TFT LCD Display
Size: 12.1″
Resolutions: 1024 x 768 / 1280 x 800
Interface: LVDS 20-pin / 30-pin
Brightness: 600-1000 cd/m²
Touch Panel: PCAP (USB / I²C)
Operating Temperature: -30°C to +85°C
