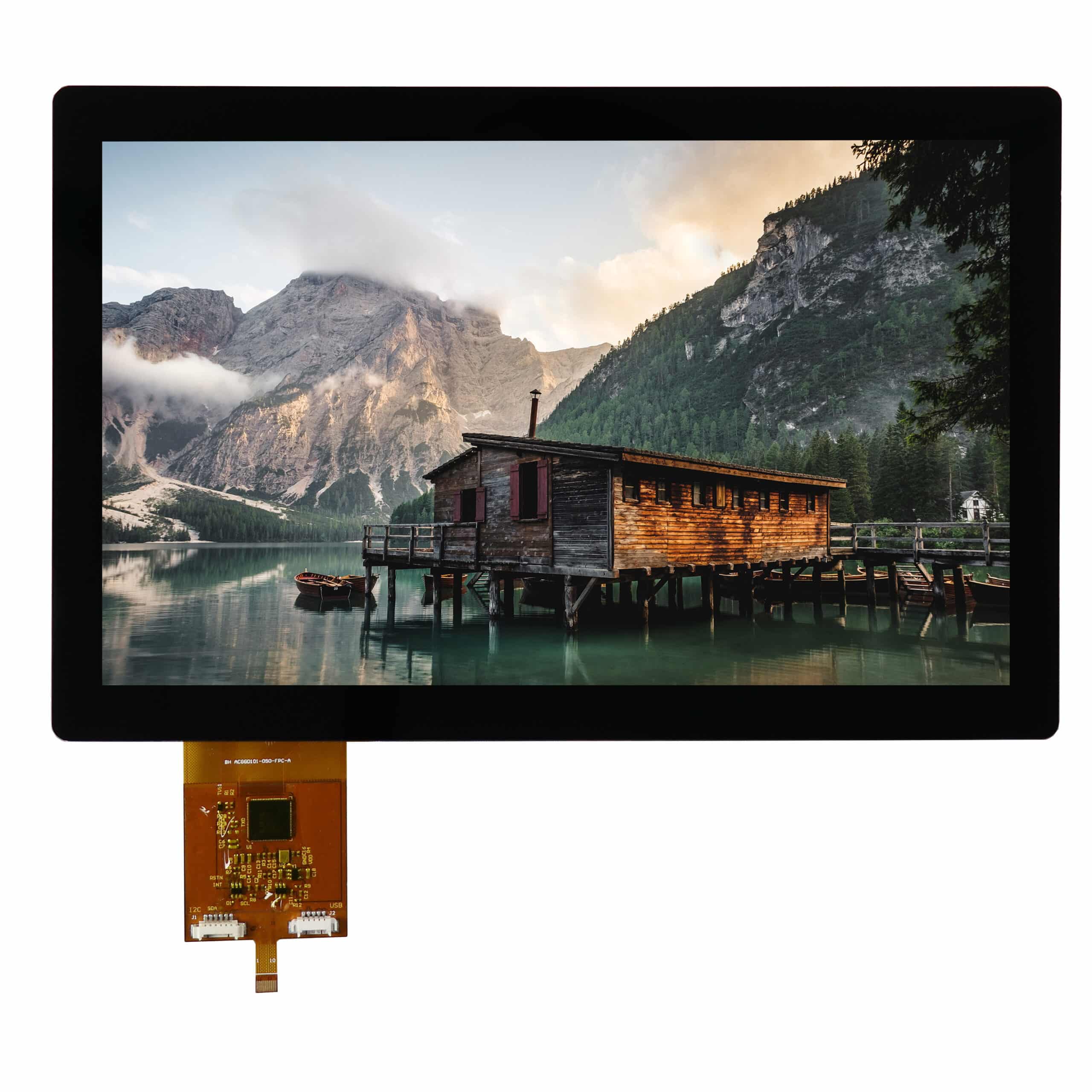

10.1″ WSVGA IPS TFT LCD Display
The 10.1″ WSVGA IPS TFT LCD Display from DigiWise and FutureLabs, a high-quality IPS module offering bright, vivid visuals and full viewing angles.
Designed for industrial, medical, and outdoor applications requiring excellent readability and reliability.
download the 10.1″ WSVGA IPS TFT LCD Display data sheet
Access detailed specifications, performance data, and technical drawings for the 10.1″ WSVGA IPS TFT LCD Display in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The 10.1″ WSVGA IPS TFT LCD Display provides a 1024 x 600 resolution in a 16:9 format with IPS technology for superior colour consistency and full viewing angles. With brightness levels from 350 to 1000 cd/m², it performs reliably in both indoor and outdoor environments, including direct sunlight. The display supports 8-bit LVDS interface and offers PCAP and resistive touch options. Operating between -20°C and +70°C, it features a robust backlight rated for 40,000 hours. Optional enhancements include optical bonding, custom cover lenses, and coating options. Certified to CE, RoHS, and REACH standards, this versatile range is ideal for medical, industrial, and marine applications.
