Drone Monitor – 21.5″ TFT Display Case Study

CASE STUDY
"We need a high brightness display for daylight viewing"

Request

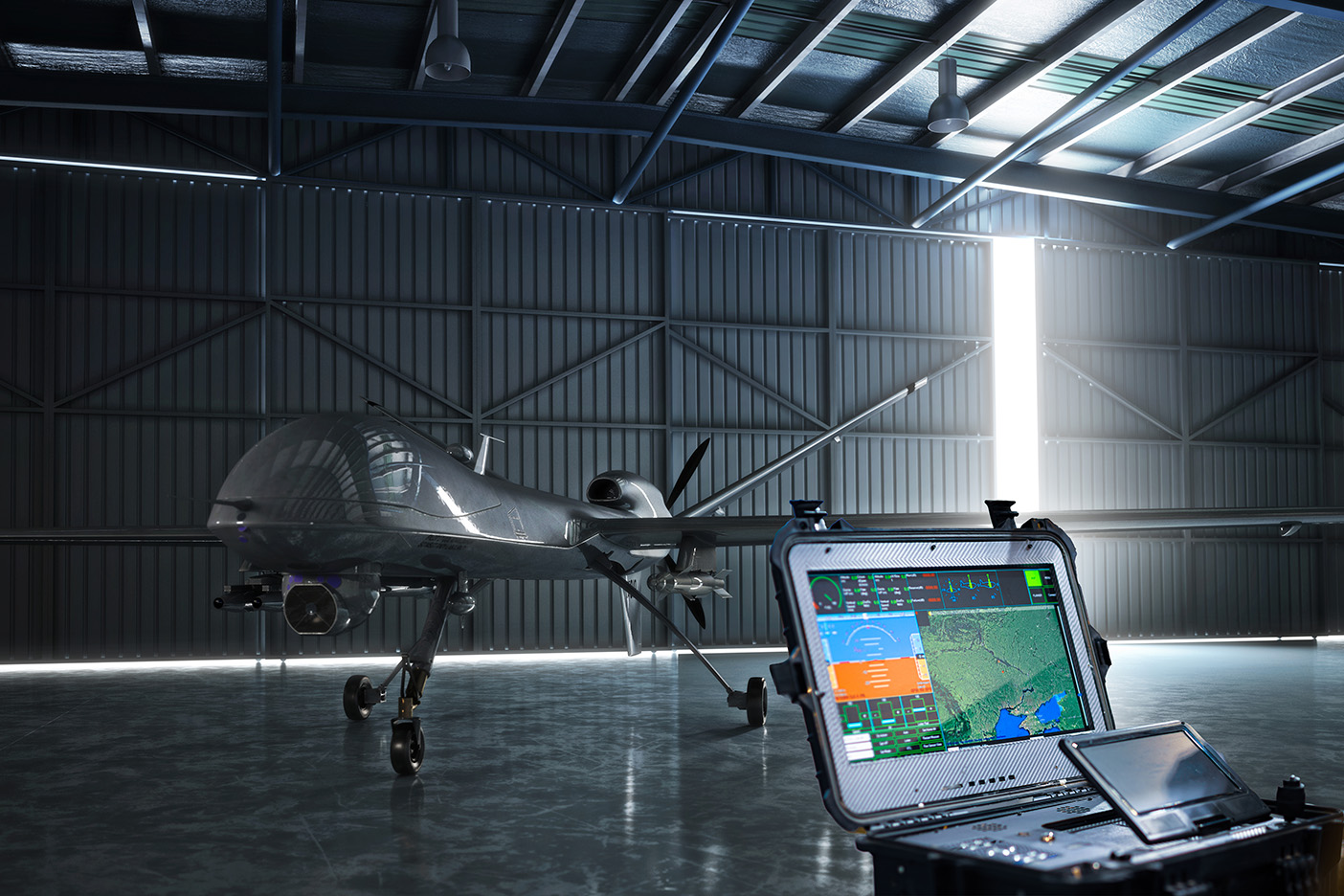

We received a requirement for a 17″ to 21.5″ TFT display which could be used as a monitor for drone surveillance. The monitor had to be mounted in a Peli-Case that would be used outdoors, therefore the display needed to be high brightness, daylight readable, with a composite video connection. A forthcoming exhibition created a 5 week deadline for the customer and requirement for Relec to deliver the first 2 prototypes on time!

  • 19.0 PCAP Touch Panel

    Construction: Glass/Film/Film (GFF)
    Number of fingers: 10
    Cover lens: up to 10mm
    Signal to Noise ratio: 32V

Refine

Working with one of our specialist suppliers, FutureLabs, we designed a semi-custom 21.5″ display that would be fit for purpose based on an already existing standard product in the following areas

  • Increased brightness from 300 cd/m2 to 1000 cd/m2
  • Applied optical bonding into the air gap to make it daylight readable
  • Fitted a 3mm cover glass with anti-reflective polariser to improve ruggedness and reduce reflection
  • Supplied an AD interface card with composite video input and a set of custom cables

Result

Relec delivered the 2 prototypes within 4 weeks as promised  This was achieved with all of the above modifications as well as custom tuning the firmware for the AD interface card.

  • 19.0 LVDS TFT LCD Display

    Screen size: 19.0″
    SXGA Widescreen
    Active area: 376.3(W) x 301.1(H) mm
    Resolution: 1280 RGB x 1024 Pixels
    Interface: Dual CH LVDS-8 bit 30 Pin
