EMC Filters
Relec supplies a comprehensive range of EMC filters and EMI filters designed to suppress conducted electromagnetic interference and help equipment meet EMC requirements. Our range includes AC and DC EMC filters, PCB mount, DIN rail, panel mount and chassis mount filters, with single-phase and three-phase solutions for industrial, medical, rail, defence, telecoms and e-mobility applications. Current ratings extend from compact low-current filters through to 1100A, with single-stage and multi-stage options available. Relec also supplies common-mode chokes, differential-mode inductors and power entry modules with integrated EMC filtering, helping engineers select an effective noise suppression solution for their application.
Showing 1–16 of 26 results
-
5008 Series
Rated Current: 0.5-6 A
Rated Voltage: 250 V ac
Frequency Range: 50-60 Hz
Leakage Current: <0.5 mA (standard), <5 µA (medical)
Form Factor: Panel mount (snap-in or screw)
Certifications: UL, VDE, CE, UKCA, RoHS -
5500 Series
Rated Current: 1-10 A
Rated Voltage: 250 V ac
Frequency Range: 50-60 Hz
Leakage Current: <0.5 mA (standard), <5 µA (medical) Form Factor: PCB mount Certifications: UL, VDE, CE, UKCA, RoHS -
C20F Series
Rated Current: 16 A
Rated Voltage: 250 V ac
Frequency Range: 50-60 Hz
Leakage Current: <0.5 mA (standard), <5 µA (medical)
Form Factor: Panel mount (front/rear, screw or snap-in)
Certifications: UL, ENEC, VDE, CE, RoHS -
DC12 Series
Rated Current: 1-10 A
Rated Voltage: 250 V ac
Frequency Range: 50-60 Hz
Leakage Current: <0.5 mA (standard), <5 µA (medical)
Form Factor: Panel mount (front/rear, screw or snap-in)
Certifications: UL, VDE, CQC, CE, UKCA, RoHS -
EFIL-28
Rated Current: 20 A
Rated Voltage: 9.5-36 V dc
Frequency Range: DC
Leakage Current: <1 mA
Form Factor: Half-brick chassis mount module
Certifications: MIL-STD-461E, UL60950, RoHS -
FM05D200P
Rated Current: 5 A
Rated Voltage: 200 V dc
Frequency Range: DC
Leakage Current: <1 mA
Form Factor: PCB mount, metal housing
Certifications: IEC/UL 60950, RoHS, CE -

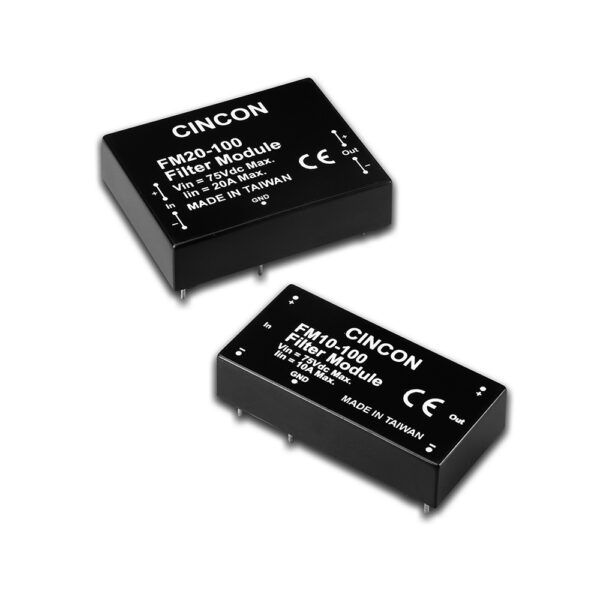

FM10/20-100 Series
Rated Current: 10-20 A
Rated Voltage: 75 V dc
Frequency Range: DC
Leakage Current: <1 mA
Form Factor: PCB mount plastic module
Certifications: IEC/UL 60950, RoHS -
FM10D200P
Rated Current: 10 A
Rated Voltage: 200 V dc
Frequency Range: DC
Leakage Current: <1 mA
Form Factor: PCB mount, metal housing
Certifications: IEC/UL 60950, RoHS, CE -
FM30R Series
Rated Current: 30 A
Rated Voltage: 80 V dc
Frequency Range: DC
Leakage Current: <1 mA
Form Factor: Chassis mount, metal housing
Certifications: IEC/UL 60950, RoHS, CE -
FMAB NEO Series
Rated Current: 1-60 A
Rated Voltage: 250 V ac
Frequency Range: 50-60 Hz
Leakage Current: <1 mA (industrial) Form Factor: Chassis mount (various case sizes) Certifications: UL, VDE, CE, UKCA, RoHS -
FMAB RAIL Series
Rated Current: 10-20 A
Rated Voltage: 250 V ac
Frequency Range: 50-60 Hz
Leakage Current: <2.1 mA
Form Factor: DIN-rail mount, metal housing
Certifications: UL, VDE, CE, UKCA, RoHS -
FMAC RAIL Series
Rated Current: 3-20 A
Rated Voltage: 480 V ac
Frequency Range: 50-60 Hz
Leakage Current: <0.5 mA Form Factor: DIN-rail mount, metal housing Certifications: UL, VDE, CE, UKCA, RoHS -
FMAC Series
Rated Current: 6-1100 A
Rated Voltage: 480/520 V ac
Frequency Range: 50-60 Hz
Leakage Current: <15 mA
Form Factor: Chassis mount, metal housing
Certifications: UL, VDE, CE, UKCA, RoHS -
FMAD RAIL Series
Rated Current: 3-20 A
Rated Voltage: 277/480 V ac
Frequency Range: 50-60 Hz
Leakage Current: <0.5 mA
Form Factor: DIN-rail mount, metal housing
Certifications: UL, VDE, CE, UKCA, RoHS -
FMBB NEO Series
Rated Current: 1-36 A
Rated Voltage: 250 V ac
Frequency Range: 50-60 Hz
Leakage Current: <0.5 mA (standard), <5 µA (medical M5), <80 µA (medical M80) Form Factor: Chassis mount, metal housing Certifications: UL, VDE, CE, UKCA, RoHS -
FMBB RAIL Series
Rated Current: 1-10 A
Rated Voltage: 250 V ac
Frequency Range: 50-60 Hz
Leakage Current: <0.25 mA (standard), 1.5 mA (industrial)
Form Factor: DIN-rail mount, metal housing
Certifications: UL, VDE, CE, UKCA, RoHS
