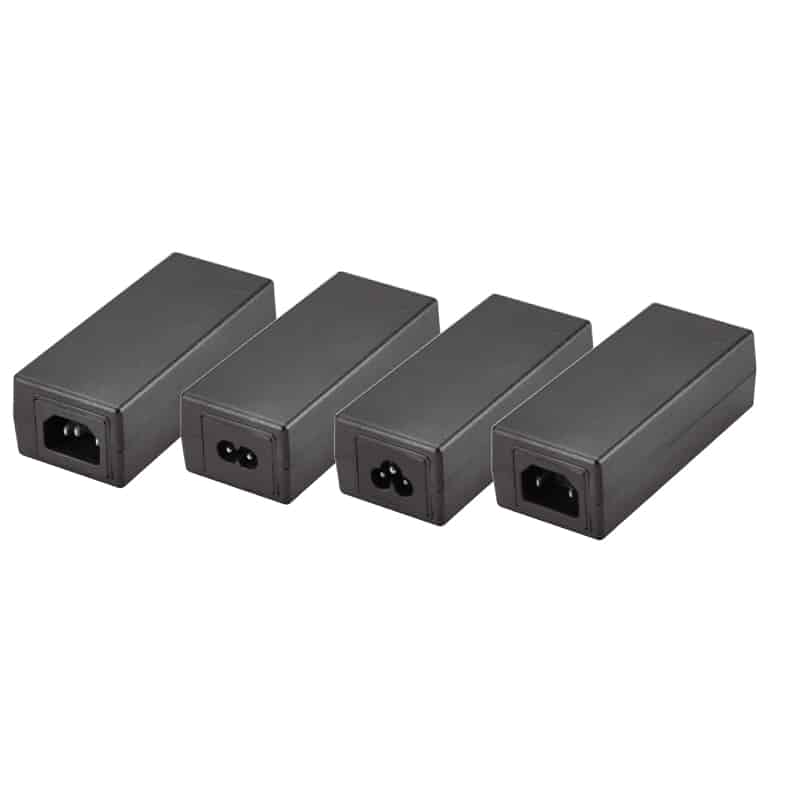

Medical Desk top – EDAC EM1068

CASE STUDY
"We need a high efficiency medical desktop with an accurate output current limit"

Request

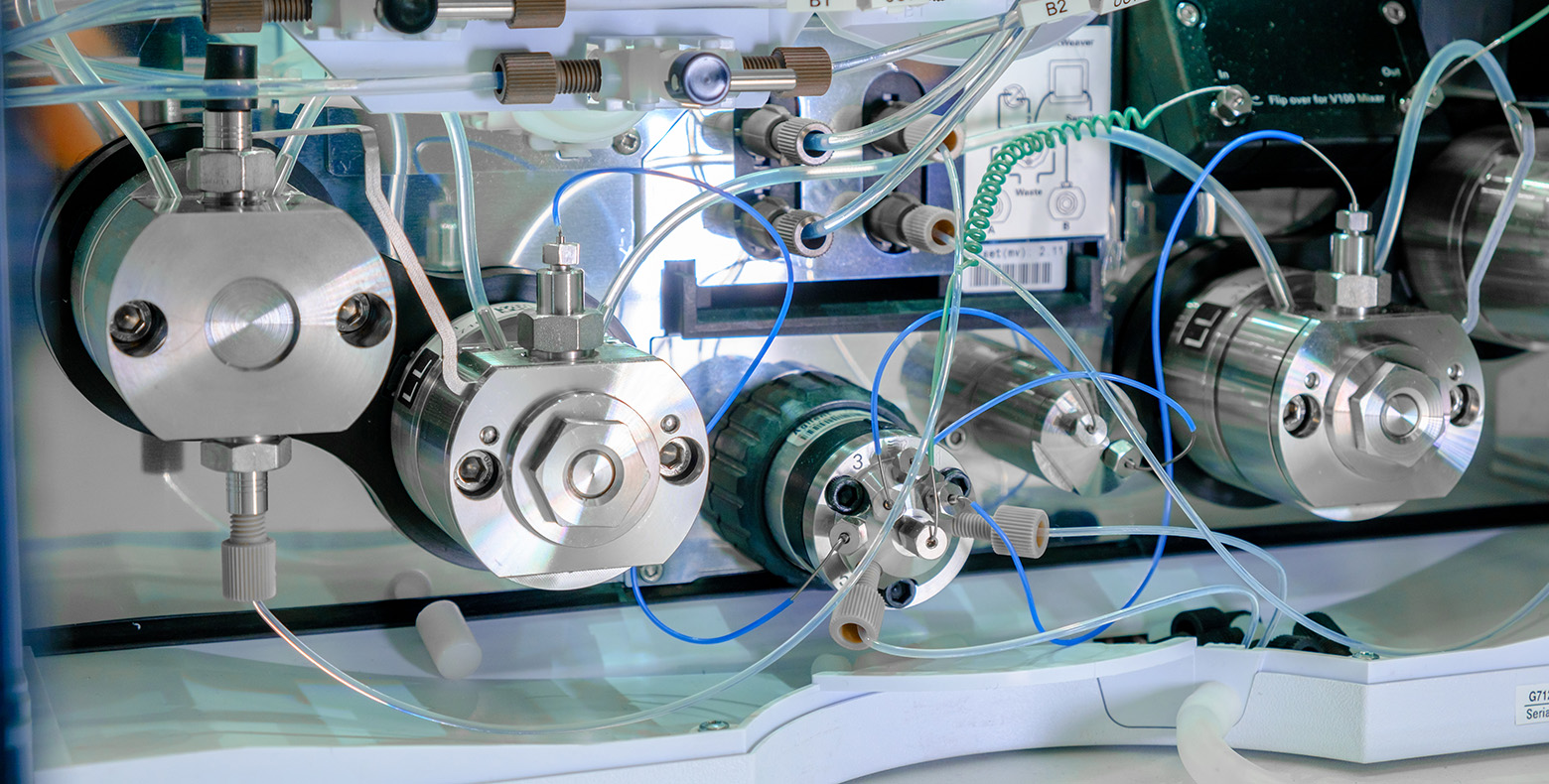

Our customer was looking for a medically approved desktop power supply to run a series of motors and valves for a clinical study.  They need a regulated 6V output but the current had to be limited to a maximum of 5A due to the restrictions placed on the dc connectors.

  • EA1068 Series

    Input: 100-240Vac
    Outputs: 5V to 24V
    Power: 72 Watt
    Tamb: 0 to +40°C
    Dims: 113 x 49 x 35mm
    CEC Level VI/EN/IEC/UL62368-1 approved

Refine

Whilst the initial requirement was for 6V @ 5A (30 Watts), it soon became apparent that this was not going to be sufficient to drive all parts of the system concurrently.  We couldn’t simply offer a larger 6V PSU because of the restrictions placed on the connectors.

We suggested that the customer increase the output voltage to 9V and provide some local regulation within the system to convert back to 6V where necessary.  We were therefore able to offer a 45W solution, but still keep the input current under the 5A limit.

  • EA1095 Series

    Input: 100-240Vac
    Outputs: 5V to 24V
    Power: 100 Watt
    Tamb: 0 to +40°C
    Dims: 137 x 59 x 34mm
    CEC Level VI Compliant

Result

We were able to supply samples quickly for the customer along with Test reports for the medical approvals, general safety and EMC to support the customer through type approvals and into production.

  • EA1170 Series

    Input: 100-240Vac
    Outputs: 12V to 24V
    Power: 180 Watt
    Tamb: 0 to +40°C
    Dims: 179 x 65 x 40mm
    CEC VI/EN/IEV/UL62368-1 approved
