DC DC Converters – PCB Mount

Fixed input, unregulated psb mount dc dc converters offer a simple, ultra low cost solution for the generation of additional power rails, where a regulated primary voltage is already available. Relec Electronics offer a wide range of very competitively priced, industry standard footprint, low power dc dc converters, now available as fully RoHS compliant products. Nearly all of the unregulated dc dc converters listed below are specified from -40 to +85 degrees centigrade and units with input to output isolation values of 1kV, 3kV, 6kV & 12kV are available as standard products, with many products available on a 4 week lead-time.

READ MOREREAD LESS
  • A_S-1WR2 Series

    Input: 5/12/15/24Vdc
    Outputs: ±3V3 to ±24V dc
    Power: 1 Watt
    Tamb: -40°C to +105°C
    Dims: SIP7
    1500V Isolation

  • A_XT-1WR2 Series

    Input: 5/12/15/24Vdc
    Outputs: ±3V3 to ±24V dc
    Power: 1 Watt
    Tamb: -40°C to +105°C
    Dims: SMD10
    1500V Isolation

  • B_S-1WR2 Series

    Input: 3/5/12/24Vdc
    Outputs: 5V to 24V dc
    Power: 1 Watt
    Tamb: -40°C to +105°C
    Dims: SIP4
    1500V Isolation

  • B_S-1WR3 Series

    Input: 5Vdc (others pending)
    Outputs: 3V3 to 24V dc
    Power: 1 Watt
    Tamb: -40°C to +105°C
    Dims: SIP4
    1500V Isolation

  • B_XT-1WR2 Series

    Input: 3/5/12/15/24Vdc
    Outputs: 3V3 to 24V dc
    Power: 1 Watt
    Tamb: -40°C to +105°C
    Dims: SMD8
    1500V Isolation

  • E_S-1WR2 Series

    Input: 3/5/12/15/24Vdc
    Outputs: ±3V3 to ±24V dc
    Power: 1 Watt
    Tamb: -40°C to +105°C
    Dims: SIP7
    3000V Isolation

  • E_XT-1WAR2 Series

    Input: 3/5/12/15/24Vdc
    Outputs: ±5V to ±24V dc
    Power: 1 Watt
    Tamb: -40°C to +105°C
    Dims: DIP10
    3000V Isolation

  • F_S-1WR2 Series

    Input: 3/5/12/15/24Vdc
    Outputs: 3V3 to 24V dc
    Power: 1 Watt
    Tamb: -40 to +105°C
    Dims: SIP7
    3000V Isolation

  • F_XT-1WR2 Series

    Input: 3/5/12/15/24Vdc
    Outputs: 3V3 to 24Vdc
    Power: 1 Watt
    Tamb: -40 to +105°C
    Dims: SMD8
    3000V Isolation

  • G_S-1WR2 Series

    Input: 5/12/15/24Vdc
    Outputs: ±5V to ±15V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP7
    6000V Isolation

  • H_S-1WR2 Series

    Input: 3/5/12/15/24Vdc
    Outputs: 5V to 15V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP7
    6000V Isolation

  • IB_LS-1W Series

    Input: 5/12/15/24Vdc
    Outputs: 5V to 24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP7
    1000V Isolation

  • IB_XT-1WR2 Series

    Input: 5/12/24Vdc
    Outputs: 5V to 15V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SSMD10
    1000V Isolation

  • IF_S-1W Series

    Input: 5/12/24Vdc
    Outputs: 5V to 15V dc
    Power:1 Watt
    Tamb: -40 to +85°C
    Dims: SIP7
    3000V Isolation

  • WRA_S-1WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: ±3V to ±24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    1500V Isolation

  • WRB_S-1WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: 3V to 24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    1500V Isolation

  • WRE_S-1WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: ±3V to ±24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    3000V Isolation

  • WRF_S-1WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: 3V to 24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    3000V Isolation

  • A_S-2WR2 Series

    Input: 5/12/15/24Vdc
    Outputs: ±3V3 to ±24V dc
    Power: 2 Watt
    Tamb: -40°C to +105°C
    Dims: SIP7
    1500V Isolation

  • B_M-2WR2 Series

    Input: 5/12/24Vdc
    Outputs: 5V to 24V dc
    Power: 2 Watt
    Tamb: -40°C to +105°C
    Dims: SIP4
    1500V Isolation

  • B_S-2WR2 Series

    Input: 3/5/9/12/24Vdc
    Outputs: 5V to 24V dc
    Power: 2 Watt
    Tamb: -40°C to +105°C
    Dims: SIP7
    1500V Isolation

  • B_XT-2WR2 Series

    Input: 5/12/15/24Vdc
    Outputs: 3V to 24V dc
    Power: 2 Watt
    Tamb: -40°C to +105°C
    Dims: SIP7
    1500V Isolation

  • E_S-2WR2 Series

    Input: 5/12/15/24Vdc
    Outputs: ±3V3 to ±24V dc
    Power: 2 Watt
    Tamb: -40°C to +105°C
    Dims: SIP7
    3000V Isolation

  • F_S-2WR2 Series

    Input: 5/12/15/24Vdc
    Outputs: 3V3 to 24V dc
    Power: 2 Watt
    Tamb: -40 to +105°C
    Dims: SIP7
    3000V Isolation

  • F_XT-2WR2 Series

    Input: 5/12/15/24Vdc
    Outputs: 3V3 to 24V dc
    Power: 2 Watt
    Tamb: -40 to +105°C
    Dims: SMD8
    3000V Isolation

  • G_S-2WR2 Series

    Input: 5/12/15/24Vdc
    Outputs: ±5V to ±15V dc
    Power: 2 Watt
    Tamb: -40 to +85°C
    Dims: SIP7
    6000V Isolation

  • H_S-2WR2 Series

    Input: 5/12/15/24Vdc
    Outputs: 5V to 15Vdc
    Power: 2 Watt
    Tamb: -40 to +85°C
    Dims: SIP7
    6000V Isolation

  • IB_S-2W Series

    Input:5/12/15/24Vdc
    Outputs: 5V to 15V dc
    Power: 2 Watt
    Tamb: -40 to +85°C
    Dims: SIP7
    1000V Isolation

  • IF_S-2W Series

    Input: 5/12/24Vdc
    Outputs 5V dc
    Power: 2 Watt
    Tamb: -40 to +85°C
    Dims: SIP7
    3000V Isolation

  • IF_XT-1WR2 Series

    Input: 5/12/24Vdc
    Outputs: 5V to 15V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SMD10
    3000V Isolation

  • WRB_S-3WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: 3V to 24V dc
    Power: 3 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    1500V Isolation

  • WRA_S-3WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: ±3V to ±24V dc
    Power: 3 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    1500V Isolation

  • WRF_S-3WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: 3V to 24V dc
    Power: 3 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    3000V Isolation

  • WRE_S-3WR2 Series

    Input: Wide input(2:1) 4.5 to 75Vdc
    Outputs: ±3V to ±24V dc
    Power: 1 Watt
    Tamb: -40 to +85°C
    Dims: SIP8
    3000V Isolation

  • URE_P-6WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs: ±5V to ±24V dc
    Power: 6 Watt
    Tamb: -40 to +85°C
    Dims: DIP24 - 32 x 20 x 10.80mm
    3000V Isolation

  • URF_P-6WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to 24V dc
    Power: 6 Watt
    Tamb: -40 to +85°C
    Dims: DIP24 - 32 x 20 x 10.80mm
    3000V Isolation

  • URH_P-6WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to 24V dc
    Power: 6 Watt
    Tamb: -40 to +85°C
    Dims: DIP24 - 32 x 20 x 10.80mm
    6000V Isolation

  • URB_YMD-6WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs 3V to 24V dc
    Power: 6 Watt
    Tamb: -40 to +85°C
    Dims: 1" x 1" x 0.465"
    1500V Isolation

  • URA_YMD-6WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs ±3V to ±24V dc
    Power: 6 Watt
    Tamb: -40 to +85°C
    Dims: 1" x 1" x 0.465"
    1500V Isolation

  • URB_ZP-6WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs 3V to 24V dc
    Power: 6 Watt
    Tamb: -40 to +85°C
    Dims: DIP24 - 32 x 20 x 10.80mm
    1500V Isolation

  • URA_ZP-6WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs ±3V to ±24V dc
    Power: 6 Watt
    Tamb: -40 to +85°C
    Dims: DIP24 - 32 x 20 x 10.80mm
    1500V Isolation

  • K78_T-500R3 Series

    Input: 4.75-36Vdc
    Outputs: 1 to 15Vdc
    Power: 0.75-6.0 Watt
    Tamb: -40 to +85°C
    Dims: SMD10
    Non isolated

  • URB1D_YMD-6WR3 Series

    Input: 40-160Vdc
    Outputs: 3V to 24V dc
    Power: 6 Watt
    Tamb: -40 to +85°C
    Dims: 1" x 1" x 0.465"
    2250V Isolation

  • K78xx-500R3 Series

    Input: 4.75-36Vdc
    Outputs: 3 to 15V dc
    Power: 1.65-7.5 Watt
    Tamb: -40 to +85°C
    Dims: SIP3
    Non isolated

  • K78Lxx-500R3 Series

    Input:4.75-36Vdc
    Outputs: 3 to 15V dc
    Power:1.65-7.5 Watt
    Tamb: -40 to +85°C
    Dims: SIP3
    Non isolated

  • URF_LP-10WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to 24V dc
    Power: 10 Watt
    Tamb: -40 to +85°C
    Dims: 2" x 1" x 0.465"
    3000V Isolation

  • URE_LP-10WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs: ±3V to ±24V dc
    Power: 10 Watt
    Tamb: -40 to +85°C
    Dims: 2" x 1" x 0.465"
    3000V Isolation

  • URB_YMD-10WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs 3V to 24V dc
    Power: 10 Watt
    Tamb: -40 to +85°C
    Dims: 1" x 1" x 0.465"
    1500V Isolation

  • URA_YMD-10WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs ±3V to ±24V dc
    Power: 10 Watt
    Tamb: -40 to +85°C
    Dims: 1" x 1" x 0.465"
    1500V Isolation

  • K78_T-1000R3 Series

    Input: 4.75-36Vdc
    Outputs: 1 to 15Vdc
    Power: 0.75-7.5 Watt
    Tamb: -40 to +85°C
    Dims: SMD10
    Non isolated

  • K78Uxx-500 Series

    Input: 9.0-72Vdc
    Outputs: 3 to 24Vdc
    Power: 1.65-7.5 Watt
    Tamb: -40 to +85°C
    Dims: SIP3
    Non isolated

  • K78Lxx-1000R3 Series

    Input: 6-36Vdc
    Outputs: 3 to 15V dc
    Power: 3.3-15 Watt
    Tamb: -40 to +85°C
    Dims: SIP3
    Non isolated

  • K78xx-1000R3 Series

    Input: 6-36Vdc
    Outputs: 3 to 15V dc
    Power: 3.3-15 Watt
    Tamb: -40 to +85°C
    Dims: SIP3
    Non isolated

  • 0RQB-15Y05 Series

    Input:14.5 to 154V dc
    Outputs: 5Vdc
    Power: 15 Watt
    Tamb: -40°C to +105°C
    Dims: 2.3 x 1.1 x 0.425"
    2250V dc isolation

  • URF_LP-20WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to 24V dc
    Power: 20 Watt
    Tamb: -40 to +85°C
    Dims: 2" x 1" x 0.465"
    3000V Isolation

  • URB_LD-20WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to 24V dc
    Power: 20 Watt
    Tamb: -40 to +85°C
    Dims: 2" x 1" x 0.465"
    1500V Isolation

  • URA_LD-20WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs ±3V to ±24V dc
    Power: 20 Watt
    Tamb: -40 to +85°C
    Dims: 2" x 1" x 0.465"
    1500V Isolation

  • URB1D_LD-20WR3 Series

    Input: 40-160Vdc
    Outputs 3V to 24V dc
    Power: 20 Watt
    Tamb: -40 to +85°C
    Dims: 2" x 1" x 0.465"
    2250V Isolation

  • VRB_LD-30WR3 Series

    Input: 18-36V or 36-75V dc
    Outputs: 3V to 24V dc
    Power: 30 Watt
    Tamb: -40 to +80°C
    Dims: 2" x 1" x 0.465"
    1500V Isolation

  • 0RQB-30Y05 Series

    Input:14.5 to 154V dc
    Outputs: 5Vdc
    Power: 30 Watt
    Tamb: -40°C to +105°C
    Dims: 2.3 x 1.45 x 0.59"
    2250V dc isolation

  • K78xx-2000R3 Series

    Input: 6-36Vdc
    Outputs: 3V3 to 15V dc
    Power: 6.6-36 Watt
    Tamb: -40 to +85°C
    Dims: SIP3
    Non isolated

  • URB_LD-30WR3 Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to 24V dc
    Power: 30 Watt
    Tamb: -40 to +85°C
    Dims: 2" x 1" x 0.465"
    1500V Isolation

  • PVxx-27BxxR2 series

    Input: 100 to 1000Vdc
    Output: 5 to 24Vdc
    Power: 5 to 20W
    Tamb: -40 to 70°C
    Dims: 70 x 48 x 23.5mm
    Isolation 4.0kV ac

  • ECLB-40W Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to +/-15V dc
    Power: 40 Watt
    Tamb: -40°C to +105°C
    Dims: 2.05" x 1.2" x 0.4"
    1500V dc Isolation

  • VRB_LD-50W Series

    Input: 18-36V or 36-75V dc
    Outputs: 3V to 24V dc
    Power: 50 Watt
    Tamb: -40 to +85°C
    Dims: 2" x 1" x 0.465"
    1500V Isolation

  • 0RQB-50Yx Series

    Input:14.5 to 154V dc
    Outputs: 5V & 12V dc
    Power: 50 Watt
    Tamb: -40°C to +105°C
    Dims: 2.3 x 1.45 x 0.59"
    3000V dc isolation

  • CQE50W Series

    Input: 9-36V or 18-75V dc
    Outputs: 5V to 48V dc
    Power: 60 Watt
    Tamb: -40°C to +100°C
    Dims: Quarter Brick
    3000V dc isolation

  • CHB50W Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to 48V dc
    Power: 100 Watt
    Tamb: -40°C to +100°C
    Dims: Half Brick
    UL / CE EN60950 Approved

  • CQB50W12 Series

    Input:14 to 160V dc
    Outputs: 5V to 48V dc
    Power: 50 Watt
    Tamb: -40°C to +100°C
    Dims: Quarter Brick
    3000V dc isolation

  • ECLB-60W Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to +/-15V dc
    Power: 60 Watt
    Tamb: -40°C to +105°C
    Dims: 2.05" x 1.2" x 0.4"
    1500V dc Isolation

  • CQB60W-110S Series

    Input: 43 to 160V dc
    Outputs: 5V to 48V dc
    Power: 60 Watt
    Tamb: -40°C to +100°C
    Dims: Quarter Brick
    3000V dc isolation

  • CHB100-110S Series

    Input: 66 to 160V dc
    Outputs: 5V to 48V dc
    Power: 100 Watt
    Tamb: -40°C to +100°C
    Dims: Half Brick
    3000Vrms isolation

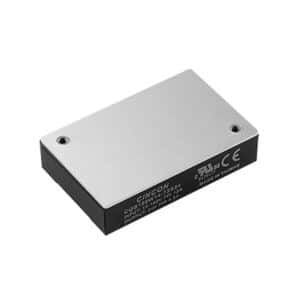

  • CQB100W Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to 48V dc
    Power: 100 Watt
    Tamb: -40°C to +100°C
    Dims: Quarter Brick
    1500V dc Isolation

  • CQB100-110S Series

    Input: 43 to 160V dc
    Outputs: 5V to 24V dc
    Power: 100 Watt
    Tamb: -40°C to +100°C
    Dims: Quarter Brick
    3000V dc isolation

  • CHB100W Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to 48V dc
    Power:100 Watt
    Tamb: -40°C to +100°C
    Dims: Half Brick
    UL / CE EN60950 Approved

  • CQB150-110S Series

    Input: 43 to 160V dc
    Outputs: 5V to 48V dc
    Power: 150 Watt
    Tamb: -40°C to +100°C
    Dims: Quarter Brick
    3000V dc isolation

  • CQB150W Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to 48V dc
    Power: 150 Watt
    Tamb: -40°C to +100°C
    Dims: Quarter Brick
    2250V dc Isolation

  • CHB200W Series

    Input: 9-36V or 18-75V dc
    Outputs: 3V to 48V dc
    Power: 200 Watt
    Tamb: -40°C to +100°C
    Dims: Half Brick
    UL / CE EN60950 Approved

  • CHB300W Series

    Input: 9-36V or 18-75V dc
    Outputs: 5V to 48V dc
    Power: 300 Watt
    Tamb: -40°C to +100°C
    Dims: Half Brick
    Meets UL / CE EN60950

  • CHB300-110S Series

    Input: 43 to 160V dc
    Outputs: 5V to 48V dc
    Power: 300 Watt
    Tamb: -40°C to +100°C
    Dims: Half Brick
    3000V dc isolation

LET’S MAKE THIS EASY. CALL 01929 555 700

why choose relec?
  • Faster

    Our aim is to get back to you with an initial response within the hour.

  • Attention to detail

    We pride ourselves on getting you the right product, at the right price and on time.

  • New ideas

    We are constantly looking for latest technology and products for your applications.

  • Beyond standard

    It’s not just about the product.  Our service goes way beyond the norm.

  • Easy

    We want to make your life as simple as it can be. Call us to find out what we can offer.

sign up for our newsletter

Enter your email address below
  • This field is for validation purposes and should be left unchanged.
