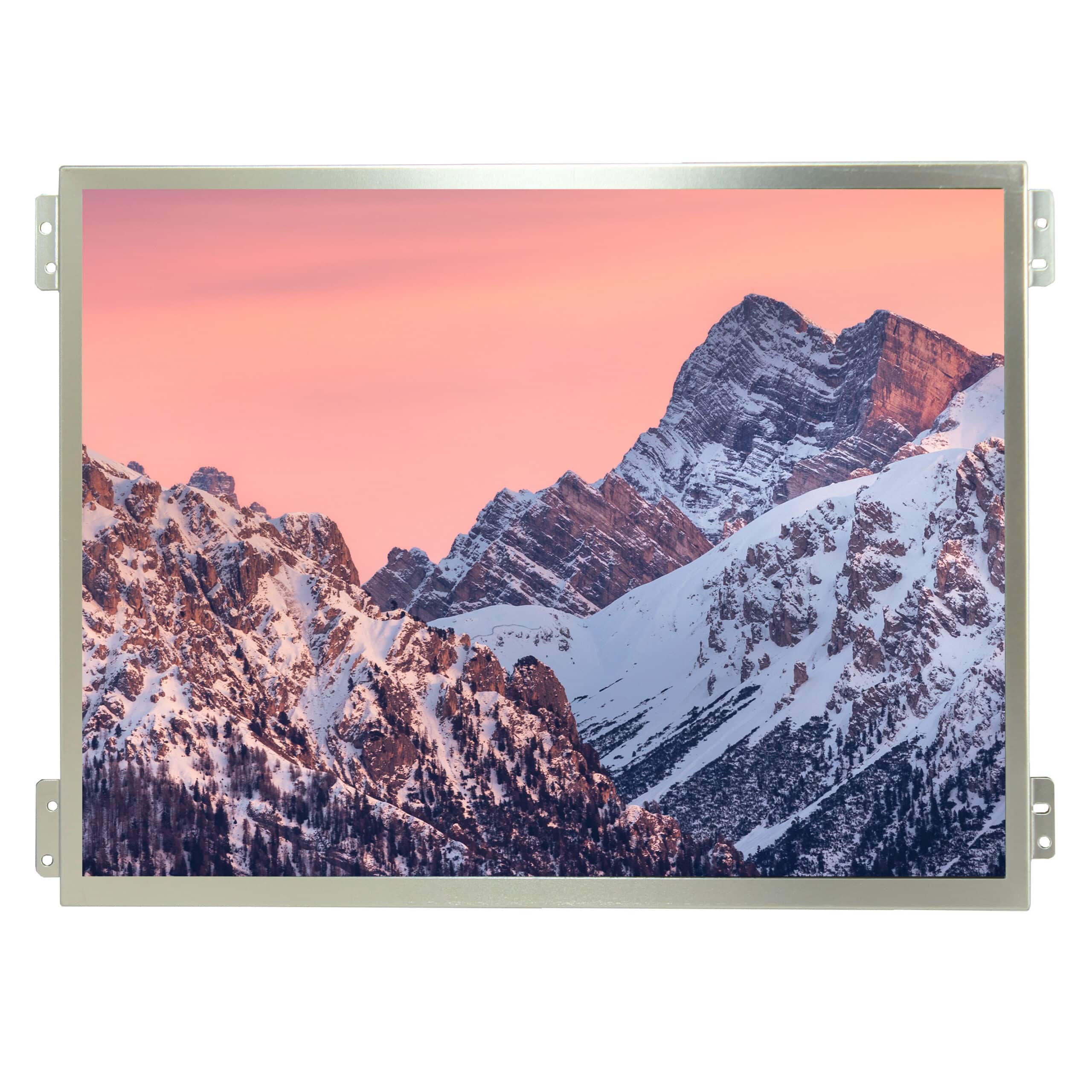

10.4″ XGA IPS TFT LCD Display
The 10.4″ XGA IPS TFT LCD Display from FutureLabs and DigiWise, a robust high-brightness module designed for industrial and medical systems requiring superior clarity and reliability.
With IPS technology, up to 1000 cd/m² brightness, and wide -30°C to +85°C operation, it delivers consistent performance in harsh conditions.
download the 10.4″ XGA IPS TFT LCD Display data sheet
Access detailed specifications, performance data, and technical drawings for the 10.4″ XGA IPS TFT LCD Display in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The 10.4″ XGA IPS TFT LCD Display provides 1024 x 768 resolution in a 4:3 aspect ratio for clear, detailed visuals. The IPS panel offers full viewing angles, high colour accuracy, and contrast ratios up to 900:1. With brightness levels between 500 and 1000 cd/m² and operating temperatures from -30°C to +85°C, it’s ideal for demanding indoor and outdoor environments. The display uses an 8-bit LVDS interface and supports both PCAP and resistive touch options. Long backlight lifetime and low power consumption ensure durability and efficiency. Optional enhancements include optical bonding, cover lens printing, and screen coatings.
