TFT Displays
Showing 33–48 of 60 results
-
2″ QVGA IPS TFT LCD Display
Size: 2″
Active Area: 30.6 x 40.8 mm
Resolution: 240 x 320
Interface: MCU 8080 8-bit
Brightness: 250 cd/m²
Touch Panel: None
Operating Temperature: -20°C to +70°C -
21.5″ FHD IPS TFT LCD Display
Size: 21.5″
Active Area: 476.06 x 267.79 mm
Resolution: 1920 x 1080
Interface: 8-bit LVDS
Brightness: 400-450 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -10°C to +60°C -
21.5″ HDMI TFT LCD Display
Size: 21.5″
Active Area: 476.06 x 267.79 mm
Resolution: 1920 x 1080
Interface: HDMI
Brightness: 450-500 cd/m²
Touch Panel Options: PCAP / Resistive
Operating Temperature: -10°C to +60°C -

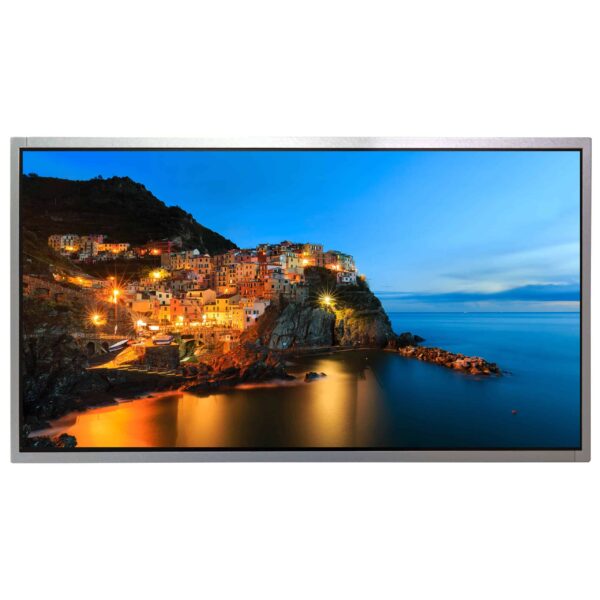

23.8″ FHD IPS TFT LCD Display
Size: 23.8″
Active Area: 527.04 x 294.46 mm
Resolution: 1920 x 1080
Interface: 8-bit LVDS
Brightness: 850 cd/m²
Touch Panel Options: PCAP
Operating Temperature: -20°C to +70°C -
3.5″ QVGA IPS TFT LCD Display
Size: 3.5″
Active Area: 70.08 x 52.56 mm
Resolution: 320 x 240
Interface: TTL 24-bit RGB
Brightness: 400-1200 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -20°C to +70°C -
4.3″ HDMI TFT LCD Display
Size: 4.3″
Active Area: 95.04 x 53.86 mm
Resolution: 800 x 480
Interface: HDMI
Brightness: 450-1100 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -30°C to +80°C -
5.7″ QVGA TFT LCD Display
Size: 5.7″
Active Area: 115.2 x 86.4 mm
Resolution: 320 x 240
Interface: TTL 18-bit RGB
Brightness: 480-1500 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -20°C to +70°C -
5.7″ VGA TFT LCD Display
Size: 5.7″
Active Area: 115.2 x 86.4 mm
Resolution: 640 x 480
Interface: TTL 18-bit RGB & 6-bit LVDS
Brightness: 360-1500 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -20°C to +70°C -
5″ HDMI TFT LCD Display
Size: 5″
Active Area: 108 x 64.8 mm
Resolution: 800 x 480
Interface: HDMI
Brightness: 450-1000 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -30°C to +70°C -
5″ WVGA IPS TFT LCD Display
Size: 5″
Active Area: 108 x 64.8 mm
Resolution: 800 x 480
Interface: TTL 24-bit RGB & 8-bit LVDS
Brightness: 450-1000 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -30°C to +85°C -

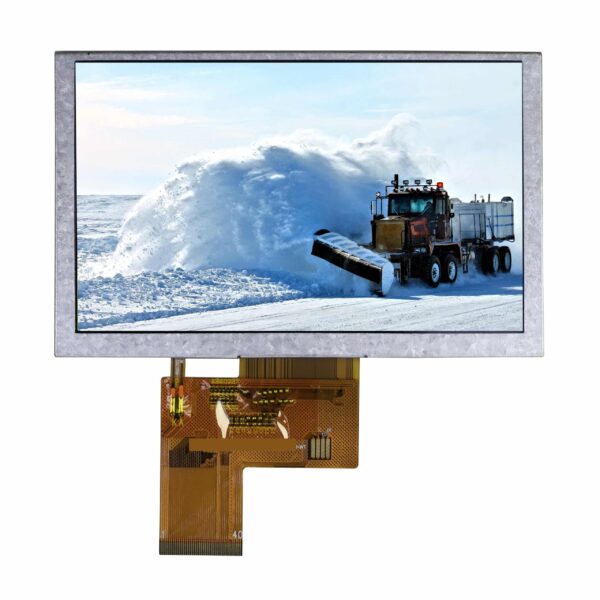

5″ WVGA TFT LCD Display
Size: 5″
Active Area: 108 x 64.8 mm
Resolution: 800 x 480
Interface: TTL 24-bit RGB
Brightness: 460 cd/m²
Touch Panel: PCAP
Operating Temperature: -20°C to +70°C -

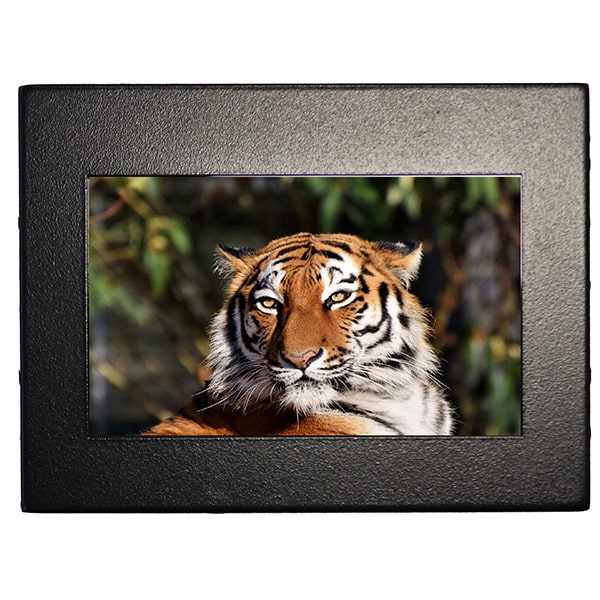

5″ Open Frame Monitor
Size: 5″
Resolution: 800 x 480
Brightness: 1000 cd/m²
Interface: LVDS 40-pin
Touch Options: PCAP / Resistive
Operating Temperature: -30°C to +80°C -
7″ Open Frame Monitor
Size: 7″
Active Area: 154.21 x 85.92 mm
Resolution: 1024 x 600
Interface: HDMI 1.4 / USB Touch / Audio Out
Brightness: 1500 cd/m²
Touch Panel: PCAP (1-point, USB)
Operating Temperature: -20°C to +60°C -
7″ WSVGA IPS TFT LCD Display
Size: 7″
Active Area: 154.21 x 85.92 mm
Resolution: 1024 x 600
Interface: TTL 24-bit RGB & 8-bit LVDS
Brightness: 400-1500 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -20°C to +70°C -
7″ WVGA IPS TFT LCD Display
Size: 7″
Active Area: 152.4 x 91.44 mm
Resolution: 800 x 480
Interface: TTL 24-bit RGB & 8-bit LVDS
Brightness: 450-1000 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -40°C to +85°C -
7″ WVGA TFT LCD Display
Size: 7″
Active Area: 152.4 x 91.44 mm
Resolution: 800 x 480
Interface: TTL 24-bit RGB & 8-bit LVDS
Brightness: 320-2500 cd/m²
Touch Panel: PCAP / Resistive
Operating Temperature: -30°C to +85°C
