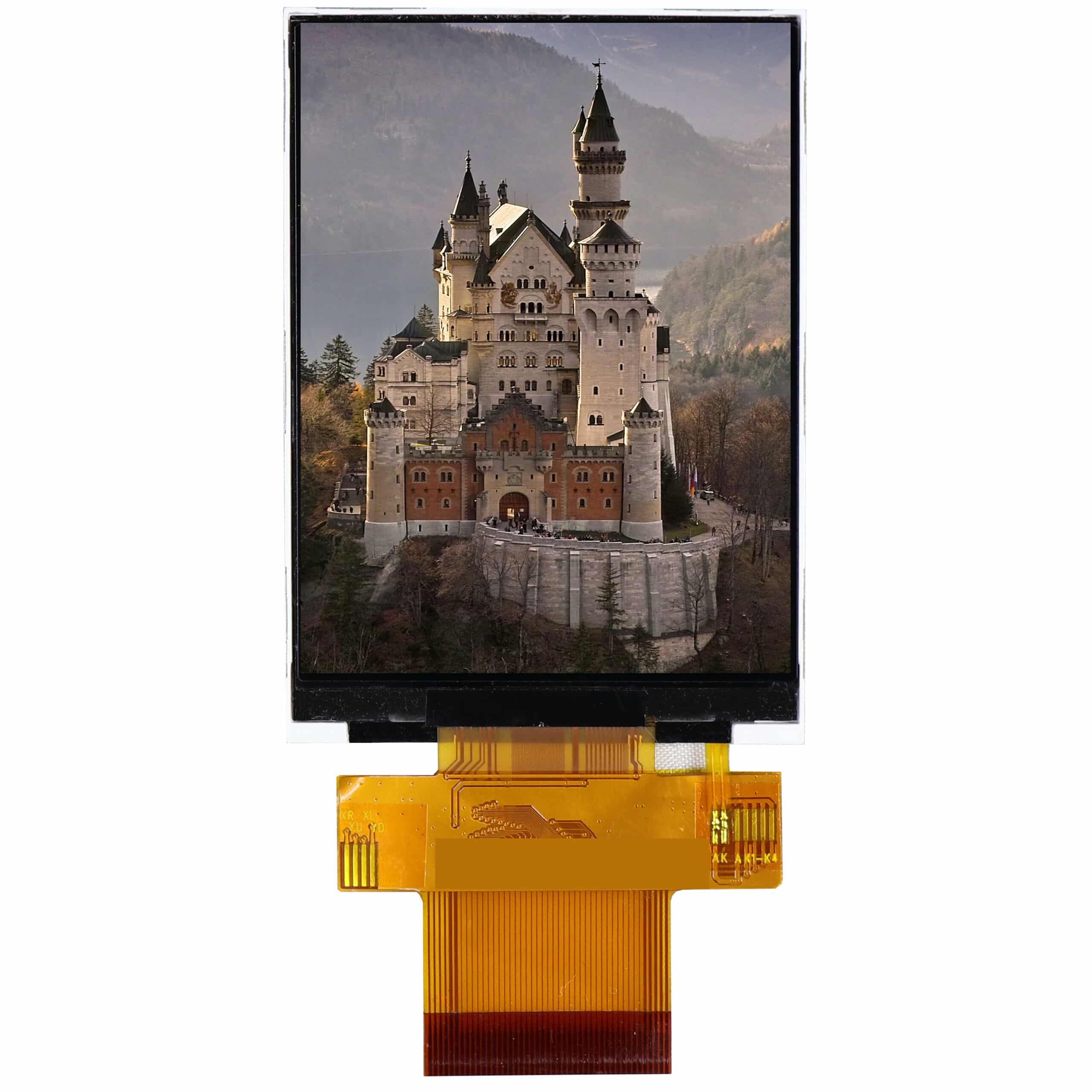

2.8″ QVGA IPS TFT LCD Display
The 2.8″ QVGA IPS TFT LCD Display from DigiWise, a compact and high-brightness module ideal for handheld, portable, and embedded equipment.
With IPS technology and 1000 cd/m² brightness, it ensures excellent colour performance and full viewing angles even in direct sunlight.
download the 2.8″ QVGA IPS TFT LCD Display data sheet
Access detailed specifications, performance data, and technical drawings for the 2.8″ QVGA IPS TFT LCD Display in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The 2.8″ QVGA IPS TFT LCD Display delivers 240 x 320 resolution in a portrait 3:4 aspect ratio, providing sharp detail and vivid colour. Designed with IPS technology, it offers wide viewing angles and an anti-glare surface for enhanced visibility. Featuring a typical brightness of 1000 cd/m², contrast ratio of 800:1, and interfaces supporting MCU 8080 and 3-wire SPI, it operates from -20°C to +70°C, meeting industrial-grade standards. Available with PCAP and resistive touch options, this display is ideal for portable, outdoor, and marine applications. Optional features include optical bonding, custom cover lenses, and screen enhancements.
