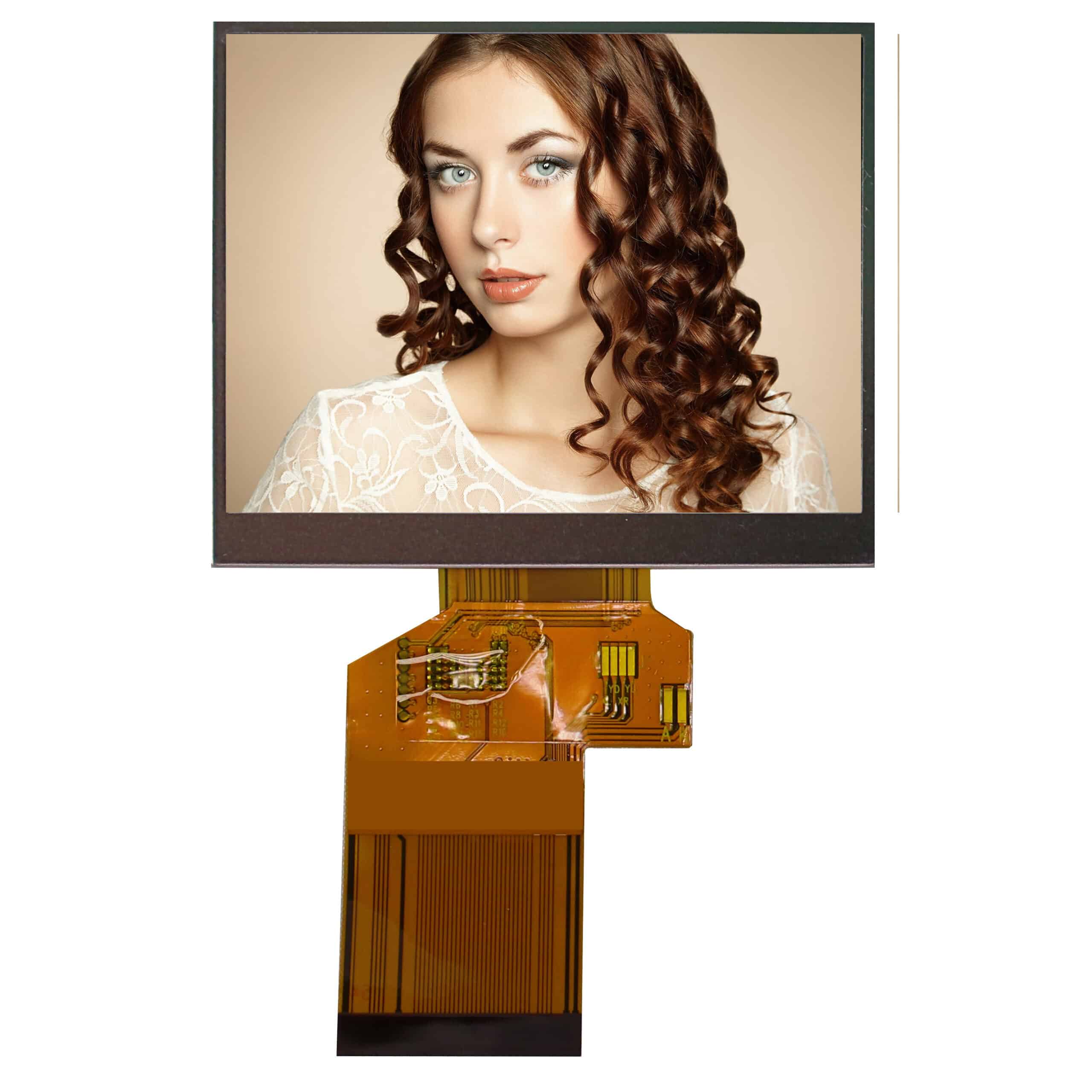

3.5″ QVGA IPS TFT LCD Display
The 3.5″ QVGA IPS TFT LCD Display from DigiWise, a compact, high-performance TFT module combining IPS technology with high brightness for excellent readability.
With brightness options up to 1200 cd/m² and wide viewing angles, it’s ideal for outdoor, medical, and industrial applications.
download the 3.5″ QVGA IPS TFT LCD Display data sheet
Access detailed specifications, performance data, and technical drawings for the 3.5″ QVGA IPS TFT LCD Display in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The 3.5″ QVGA IPS TFT LCD Display delivers a 320 x 240 resolution in a 4:3 aspect ratio with vivid colour reproduction and a contrast ratio of up to 800:1. Its TTL 24-bit RGB interface ensures seamless integration, while brightness options from 400 to 1200 cd/m² provide strong visibility in all lighting conditions. The module operates from -20°C to +70°C and supports PCAP and resistive touch options. Designed for compact enclosures and portable systems, it offers long backlight life and consistent image quality. Optional enhancements include optical bonding, custom cover lenses, and coating options.
