The PA-1300-86LV-TG 30 W multi-gigabit PoE injector accepts a universal 90–264 Vac input and delivers a regulated 54 Vdc output at up to 0.555 A. Its shielded RJ45 connections support 1 Gbps, 2.5 Gbps, 5 Gbps and 10 Gbps data transmission, with shielded Cat6a cabling recommended for maximum data rates. The injector includes automatic device detection and protection against overvoltage, overcurrent, short circuits and overtemperature. Natural convection cooling enables fanless operation, while the IEC 320-C14 input supports straightforward system integration. Typical applications include IP and PTZ cameras, wireless access points, industrial network endpoints, IoT gateways, building automation and access-control equipment.

download the PA-1300-86LV-TG data sheet
Access detailed specifications, performance data, and technical drawings for the PA-1300-86LV-TG in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

Stuck on specs? Let’s chat

We’re online and ready to chat.

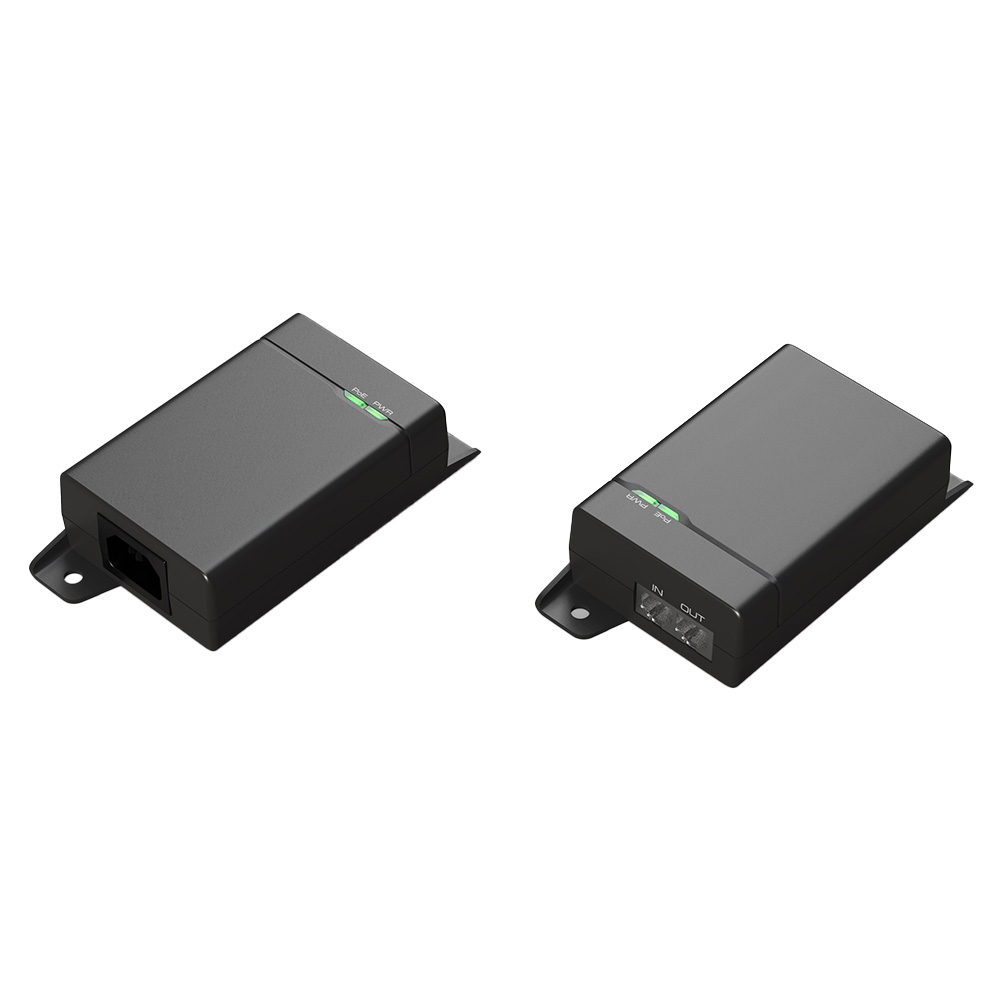

PA-1300-86LV-TG
PA-1300-86LV-TG delivers 30W of output power at 54Vdc, supporting IEEE 802.3at for reliable PoE operation. Designed for 10Gbps data rates, it ensures stable performance with high efficiency, automatic protection, and natural convection cooling. Ideal for powering IP cameras, wireless access points, and industrial networking equipment. Certified to IEC/EN/UL 62368-1, FCC, VCCI, and energy efficiency level VII.
