What Makes “Melcher” Converters, The Best In Class?

The Melcher name has always been associated with rugged Power Supplies and DC-DC Converters, and has been a leading supplier to the Railway industry of over 40 years.

In this article, we look at the design and verification processes that make a ‘Melcher’ converter a true fit and forget the power supply. All new products which come out of the Melcher stable are designed in accordance with the very strict specification and design guidelines. Component derating is an important philosophy at Melcher and all components are checked to ensure that they never exceed the derating factors which the Melcher philosophy demands.

The engineering team also make use state of the art software to conceptualize and test circuits before they get anywhere near a breadboard.

Extensive use of Program Tools ensures the Integrity of the Design

Mathcad is used to confirm key parameters within the circuit and is also used to help design key components such has transformer and inductors.

Program Tools example | What Makes Melcher Converters the Best? | Melcher Power | Relec News

Verification of Circuit Operation

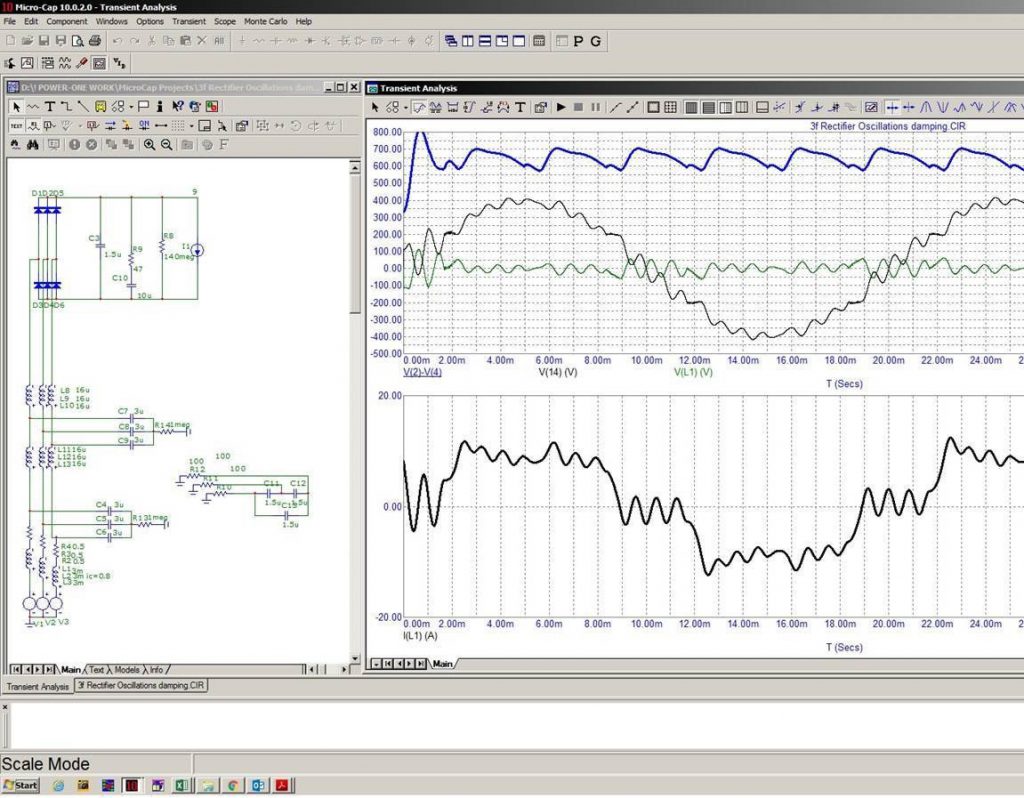

Microcap is a circuit simulation software package that can be used to check correct operation of complete circuits and test the effects of tolerances in key components.

Verification of Circuit Operation example | What Makes Melcher Converters the Best? | Melcher Power | Relec News

Mechanical & Thermal Checking

One of the key driving factors in any new power supply design is efficiency and hence power loss. With a drive to make products smaller and cheaper, it is important to make sure there are no thermal hotspots or overloads within a system. Mechanical and thermal checks are made using FloTherm and solid-Edge-FloEFD packages.

Mechanical & Thermal Checking | What Makes Melcher Converters the Best? | Melcher Power | Relec News

Extensive Prototype Testing

Once prototypes have been built, Melcher units are subject to extensive HALT (highly accelerated life test) and STRIFE (Stress + Life) test protocols. The units are tested at the extremes of their environmental specifications and also on the most demanding electrical characteristics. These might include operation with a highly pulsed load at maximum operating temperature whilst also vibrating the unit at the same time. This level of testing can very quickly pick out weak points in a design before they go to production.

HALT & STRIFE process | What Makes Melcher Converters the Best? | Melcher Power | Relec News

Design Verification Testing

And last, but not least, Melcher Converters (and other products) go through a thorough protocol of DVT (Design verification testing) and AVT (acceptance verification testing). This includes checking all of the published parameters over all environmental conditions as well as compliance to external standards. In the case of railway products this includes EN50155 and EN50121 standards. To help facilitate this Melcher have in-house thermal, humidity and vibration chambers to check compliance.

Production Burn In Testing

Once into production all units go through a 24-hour extended temperature burn in process. This ensures that any component infant mortality issues are identified before units go into the field. Whilst some of the modelling and test tools might have changed over the years, the Melcher philosophy is still as strong as ever. The Melcher name has stood for reliability and technical excellence for the past 40 years and with these tools in place it will remain the case for the next 40.

Melcher Product Burn | What Makes Melcher Converters the Best? | Melcher Power | Relec News
