Compact DIN Rail Power Supplies with Compact Pricing
4th January 2021Compact DIN Rail Power Supplies with Compact Pricing
Relec Electronics are pleased to announce the availability of the LI15, LI30, LI60, LI100 and LI150 Series Compact DIN Rail Power Supplies with stock available for immediate delivery.
The LI Series are a family of 15, 30, 60, 100 & 150 Watt DIN rail mount power supplies designed primarily for the building automation market but are equally suited to demanding industrial applications. All units are approved to both EN62368-1 and UL62368-1* making them suitable for applications in a global market. The LI series are available with 5V, 12V, 15V, 24V and 48V outputs as standard which can be trimmed in the range -10 / + 20% on certain models
The LI series case has been designed around a standard low profile housing making them suitable to be fitted along side circuit breakers in both domestic and industrial control panels. All units have the same height and depth profile, whilst the width increases with higher output power levels.
*Currently excludes LI15 & L150
Safety, Reliability & Protection as Standard
The LI Series are approved to both EN62368-1 and UL62368-1 and feature 4000Vac input to output isolation and have a 300Vac surge withstand for 5 seconds across the range, meeting EN61558 overvoltage category class III.
Feature Rich Products
The LI series have a feature set that make them suitable for a broad range of applications. These include the below:
Typical applications include building automation, agricultural control, network security systems, consumer products and industrial control.
Low Prices & Short Leadtimes
The LI series have been designed to the highest standards but also with a price tag to suit the most competitive applications. Stock is available for next day dispatch at Relec and we also offer a custom branding service if you would like your logo on the front face.
The LI Series From Mornsun
LI15 Series
Input: 85-264V ac
Outputs: 5V to 48V dc
Power: 15 Watt
Tamb: -40 to 70°C
Dims: 91 x 58.0 x 17.5mm
EN/IEC62368 approved
3 Years Warranty

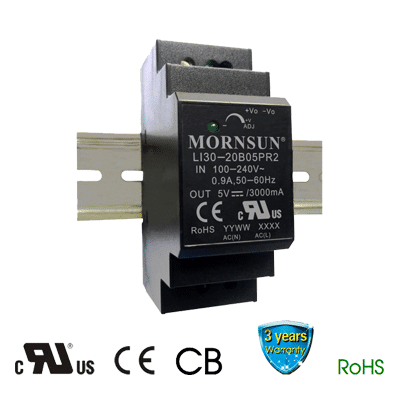

LI30 Series
Input: 85-264V ac
Outputs: 5V to 48V dc
Power: 36 Watt
Tamb: -40 to 70°C
Dims: 91 x 58.0 x 35mm
UL/EN/IEC62368 approved
3 Years Warranty
LI60 Series
Input: 85-264VAC
Outputs: 5V to 48V dc
Power: 60 Watt
Tamb: -40 to 70°C
Dims: 91 x 58 x 52mm
UL/EN/IEC62368 Approved
3 Years Warranty

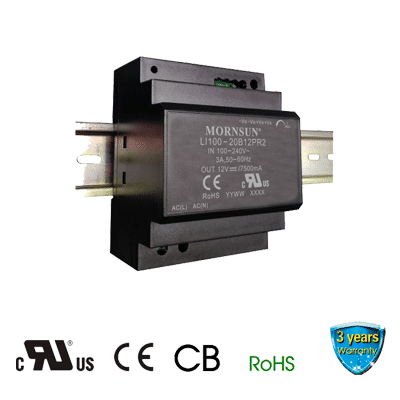

LI100 Series
Input: 85-264V ac
Outputs: 12V to 48V dc
Power: 100.8 Watt
Tamb: -40 to 70°C
Dims: 91 x 58 x 70mm
UL/EN/IEC62368 Approved
3 Years Warranty
LI150 Series
Input: 85-264V ac
Outputs: 12V to 48V dc
Power: 150 Watt
Tamb: -40 to 70°C
Dims: 91 x 58 x 105mm
EN/IEC62368 Approved
3 Years Warranty
