Low Profile Enclosed AC DC Converters with PFC

4th December 2020

Low Profile Enclosed 100 to 320W Cased AC DC Converters, with PFC for Industrial Applications

The new LMF Series AC-DC Converters from Mornsun offer up to 320 Watts of Low Profile Enclosed power factor corrected (PFC) DC outputs in low profile enclosures (<30.00mm). The LMF series are designed to meet the harshest of requirements but with a  price tag to meet the most commercially sensitive.

The LMF series are available in 4 input ranges covering 100, 150, 200 & 320 Watts.  All units have been designed with isolation values greater than 4000Vac and are approved to EN62368-1 and UL62368-1.  The LMF Series have been designed to meet the requirements of the most cost-conscious applications but without compromise when it comes to the technical aspects.  Key features of the LMF series include:

Low Profile Enclosed AC DC Converters with PFC | Mornsun Power UK

Wide Input voltage range

All units are designed to operate from 85 – 305Vac and 110 – 430Vdc, making them truly universal for a global market.

High Altitude Operation

The LMF series has been approved for operation up to 5000m and at temperatures as low as -30°C up to +70°C

EMC

All products meet EN55032 Class B Emissions as standard and have been tested to 2kV surge requirements in accordance with EN61000-4-5.

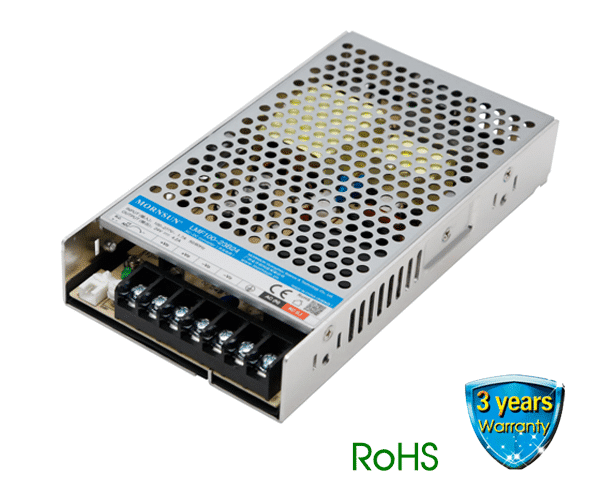

LMF100-23B Series

Input: 85 – 305Vac
Outputs: 12 to 48V
Power: 100 Watt
Tamb: -30 to +70°C
Dims: 179 x 99 x 30mm
CE EN62368 Approved
Built in PFC Function

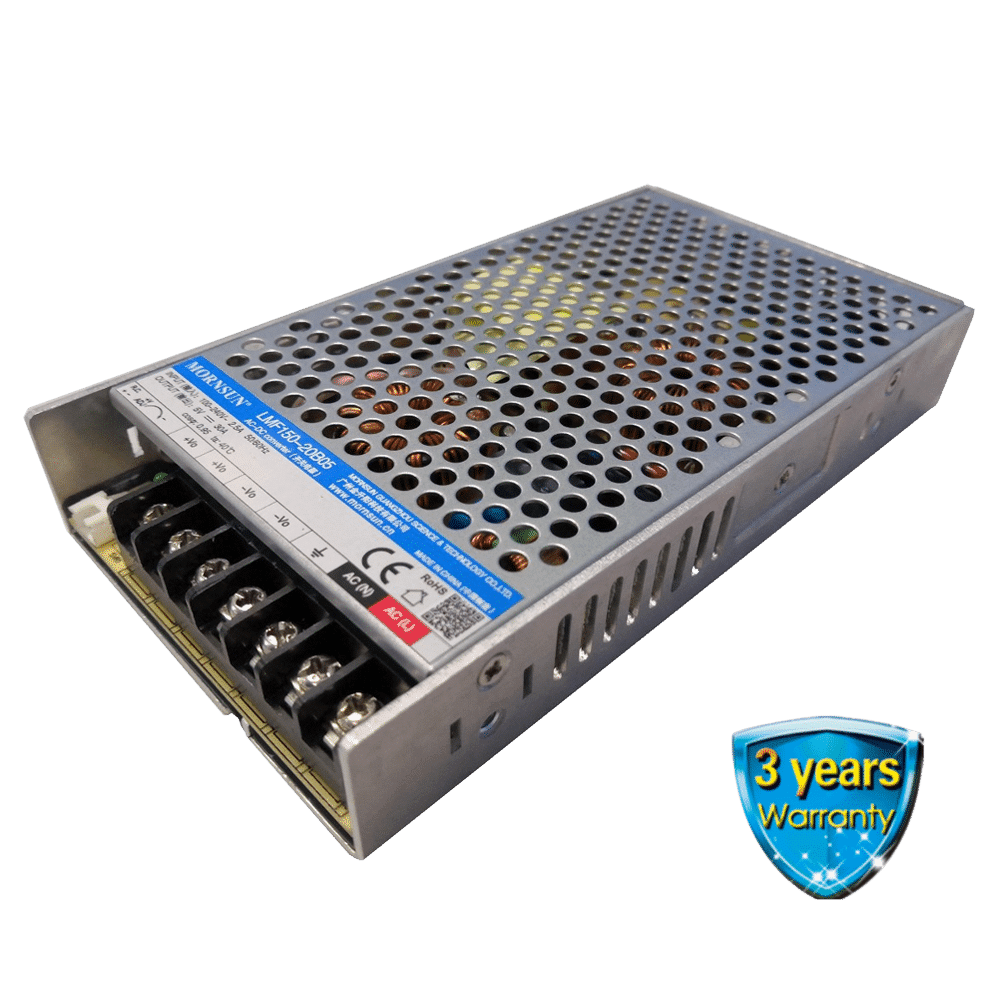

LMF150-23B Series

Input: 85 – 305Vac
Outputs: 12 to 48V
Power: 150 Watt
Tamb: -30 to +70°C
Dims: 179 x 99 x 30mm
CE EN62368 Approved
Built in PFC Function

LMF200-23Bxx Series | 200 Watt | AC-DC Converter | 3 Years Warranty

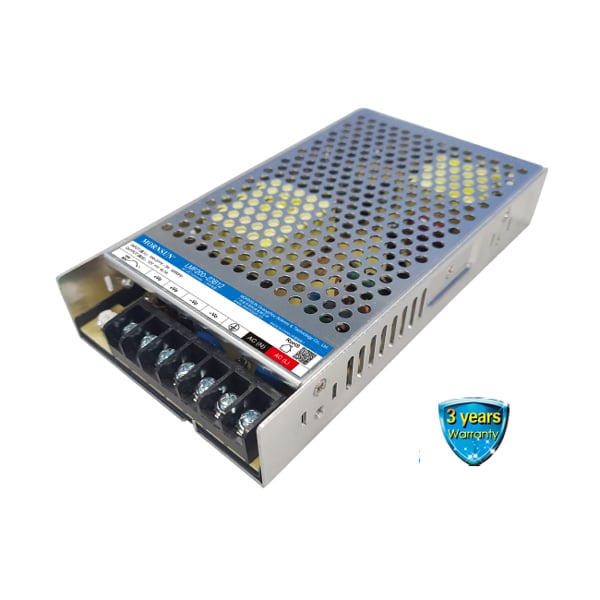

LMF200-23B Series

Input: 85 – 305Vac
Outputs: 12 to 48V
Power: 200 Watt
Tamb: -30 to +70°C
Dims: 179 x 99 x 30mm
CE EN62368 Approved
Built in PFC Function

LMF320-23Bxx Series | 200 Watt | AC-DC Converter | 3 Years Warranty

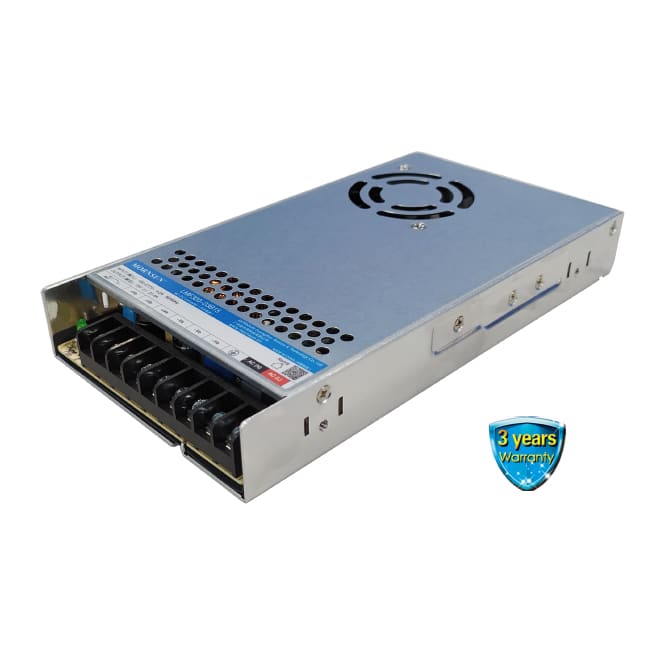

LMF320-23B Series

Input: 85 – 305Vac
Outputs: 5 to 48V
Power: 320 Watt
Tamb: -30 to +70°C
Dims: 215 x 115 x 30mm
CE EN62368 Approved
Built in PFC Function

Other Mornsun AC-DC Products

All units are available to sample now, with production lead-times as low as 6 weeks. Contact Relec Electronics Technical team for more information.
