AIF Series – Highly Efficient PFC in Extreme Temperatures

6th August 2021

The full-brick AIF Series by Artesyn. High-efficiency next-gen compact PFC module withstands extreme temperatures

Advanced Energy’s Artesyn AIF Series is the size of a smartphone but can withstand extremes of heat and cold for high-voltage, reliable power in a wide variety of demanding applications.

The compact AIF06ZPFC Series power factor correction (PFC) module is rated at 2400W and accepts 85 – 264 Vac input and provides a nominal non-isolated output of 400 Vdc.  It has a high efficiency of 97.3% and a power density of 395W per cubic inch.

It is ideal for a wide range of high-voltage applications including medical devices, unmanned aerial and terranean vehicles, and industrial applications where extreme heat and cold conditions are encountered.

AIF Series By Artesyn Banner | 2400 Watt | Full-Brick PFC | Extreme Temperatures

AIF06ZPFC series PFC modules offer extensive monitoring, protection and adjustment facilities. Remote communications are supported by a built-in PMBus interface and there is an internal memory for user data storage. The modules feature accurate current sharing for parallel operation with 2 units without ORing diodes, and there is an option to use external diodes with three or more modules in parallel for high power solutions.

The encapsulated module incorporates a thermal baseplate and operates across a wide temperature range (-20 to +100˚C) and can start from temperatures as low as -40˚C.

Military Banner | AIF Series By Artesyn | 2400 Watt | Full-Brick PFC | Extreme Temperatures
Artesyn Embedded Power | UK Trusted Distributor | Relec Electronics Ltd 2020
Motors & Pumps Banner | AIF Series By Artesyn | 2400 Watt | Full-Brick PFC | Extreme Temperatures
Medical Equipment | Insulation Tests | Process Control | Automation Systems | High-Voltage Motors & Pumps | Tethered Drones

The full brick module measures 61 x 116.8 mm (2.4 x 4.6-inch) and is only 13.7mm in height. It is available from Relec Electronics.

The AIF06ZPFC can operate as a standalone power supply in medical equipment, insulation tests, process control and automation systems and high-voltage motors and pumps. It can also be used in tethered drones, requiring power transmission over longer distances.

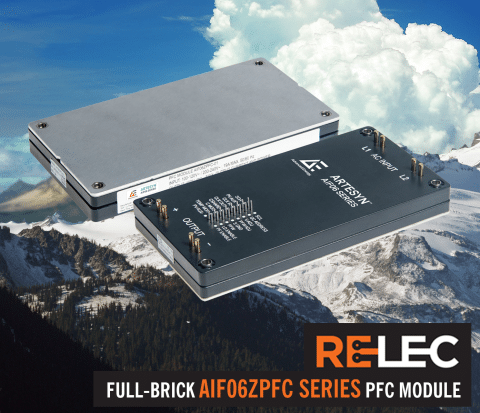

AIF Series Full-Brick Power Factor Correction Modules from Artesyn

AIF06ZPFC Series | 2400W Power | Artesyn Embedded Power | Distributor

AIF06ZPFC Series

Input: 85 – 264V ac
Output: 380V dc
Power: 2400 Watt
Tamb: -40 to 100˚C
Dims: 116.8 x 61 x 13.95mm
UL / CE Approved & 2 Year Warranty

AIF04ZPFC Series | Artesyn Embedded Technologies | Relec Electronics Ltd 2020

AIF04ZPFC Series

Input: 85 – 264V ac
Output: 380V dc
Power: 1600 Watt
Tamb: -40 to 100˚C
Dims: 116.8 x 61 x 13.95mm
UL / CE Approved & 2 Year Warranty
