APPLICATION

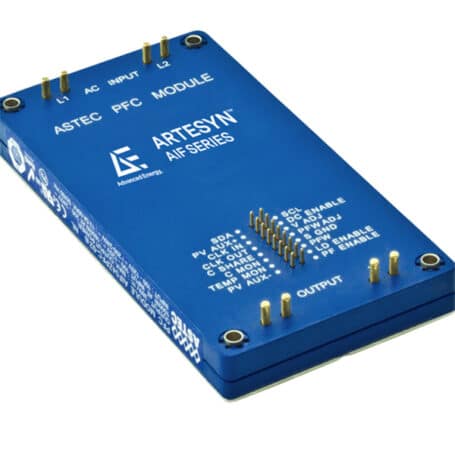

The AIF04ZPFC series full-brick power factor correction module accepts a wide 85–264 Vac input and presents a unity power factor. It can also be configured to accept a DC input within the range 120–370 Vdc. Rated at 1,600 watts, the module has a high conversion efficiency of 95% and provides a nominal non-isolated output voltage of 380 Vdc. Featuring an industry-standard 2.4 x 4.6 full-brick form factor and a height of only 0.5 inch, they have a power density of 290 watts per cubic inch.
AIF04ZPFC series PFC modules offer extensive monitoring, protection and adjustment facilities. Remote communications are supported by a built-in I2C interface and there is an internal EEPROM for user data storage. The modules feature accurate current sharing for parallel operation and there is an optional version for applications above 16 A, which requires external rail rectifiers.
Based on an encapsulated design that incorporates a thermal baseplate, the AIF04ZPFC series PFC module has a very high power density of 290 watts/in3 (17.7 watts/cm3). It accommodates a baseplate operating temperature range of -20 to 100˚C and can start up from temperatures as low as -40˚C. The module has an industry-standard 2.4 x 4.6 inch (61 x 116.8 mm) footprint and an installed height of only 0.5 inch (12.7 mm).
feature list
Unity power factor
High efficiency - up to 95%
Universal input voltage and frequency range
Up to 1600 W output power
Positive and Negative enable function
Parallelable with accurate current sharing
<10% harmonic distortion conforming to IEC1000-3-2 Compliance
100°C baseplate operating temperature
DC Input option
Power fail warning signal
Enable output to control DC-DC converter
EEPROM data storage via I2C Interface
External inrush current limited protection
Power density up to 290 W/in3
Two year warranty
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| AIF04ZPFC-01L | 85-264VAC | 380V | 1600W For parallel operation the total input current must be <16Arms. |
| AIF04ZPFC-02L | 85-264VAC | 380V | 1600W Designed for parallel operation where the total input current >16Arms, requires external rail rectifiers. |
| AIF04ZPFC-01NL | 85-264VAC | 380V | 1600W Negative enable |
