AIF06ZPFC Series

Input: 85 - 264Vac
Output: 380Vdc
Power: 2400 Watts
Temp: -40 to 100˚C
Dims: 116.8x61x13.95mm (4.6x2.4x0.55")
UL / CE Approved
2 Year Warranty

Make an enquiry
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? call us now

APPLICATION

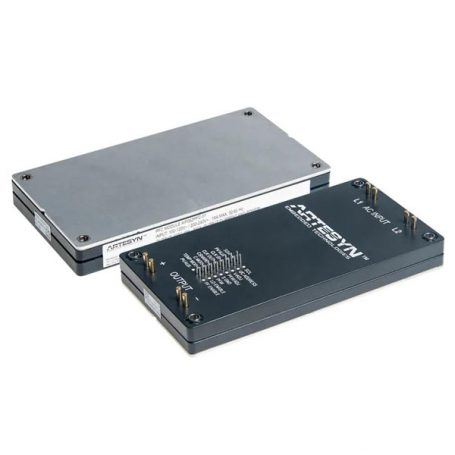

The AIF06ZPFC Series full-brick power factor correction module accepts a wide 85–264 Vac input and presents a unity power factor. Rated at 2400 watts, the module has a high conversion efficiency of 97.3% and provides a nominal non-isolated output voltage of 400 Vdc. Featuring an industry-standard 2.4 x 4.6 full-brick form factor and a height of only 0.55 inch, they have a power density of 395 watts per cubic inch.

AIF06ZPFC Series PFC modules offer extensive monitoring, protection and adjustment facilities. Remote communications are supported by a built-in PMBus interface and ther  is an internal memory for user data storage. The modules feature accurate current sharing for parallel operation and there is an optional version for applications that require 3 or more module, which requires external rail rectifiers.

The AIF06ZPFC also features an internal inrush limiting function that eliminates the requirement to provide this function externally, significantly simplifying application design and realization with increased overall efficiency.

Based on an encapsulated design that incorporates a thermal baseplate, the AIF06ZPFC series PFC module has a very high power density of 395 watts/in3. It accommodates a baseplate operating temperature range of -20 to 100˚C and can start up from temperatures as low as -40˚C. The module has an industry-standard 2.4 x 4.6 inch (61 x 116.8 mm) footprint and an installed height of only 0.55 inch (13.7 mm).

MODEL NUMBERINPUT RANGEOUTPUTPOWER
AIF06ZPFC-01L85-264VAC380V2400W
Single module operation and 2-module power sharing operation (TBC), Positive enable, RoHS-6, Threaded-inserts for mounting
AIF06ZPFC-01NL85-264VAC380V2400W
Single module operation and 2-module power sharing operation (TBC), Negative enable, RoHS-6, Threaded-inserts for mounting
AIF06ZPFC-02L85-264VAC380V2400W
3 to 10 module power sharing operation, external diodes required, Positive enable, RoHS-6, Threaded-inserts for mounting
AIF06ZPFC-02NL85-264VAC380V2400W
3 to 10 module power sharing operation, external diodes required, Negative enable, RoHS-6, Threaded-inserts for mounting
AIF06ZPFC-01NTL85-264VAC380V2400W
Single module operation or 2-module power sharing operation (TBC), Positive enable, RoHS-6, Non-Threaded-inserts for mounting
AIF06ZPFC-01NNTL85-264VAC380V2400W
Single module operation or 2-module power sharing operation (TBC), Negative enable, RoHS-6, Non-Threaded-inserts for mounting
AIF06ZPFC-02NTL85-264VAC380V2400W
3 to 10 module power sharing operation, external diodes required, Positive enable, RoHS-6, Non-Threaded-inserts for mounting
AIF06ZPFC-02NNTL85-264VAC380V2400W
3 to 10 module power sharing operation, external diodes required, Negative enable, RoHS-6, Non-Threaded-inserts for mounting

Downloads

Click on the link below for an instant download.

  • AIF06ZPFC Series Datasheet
