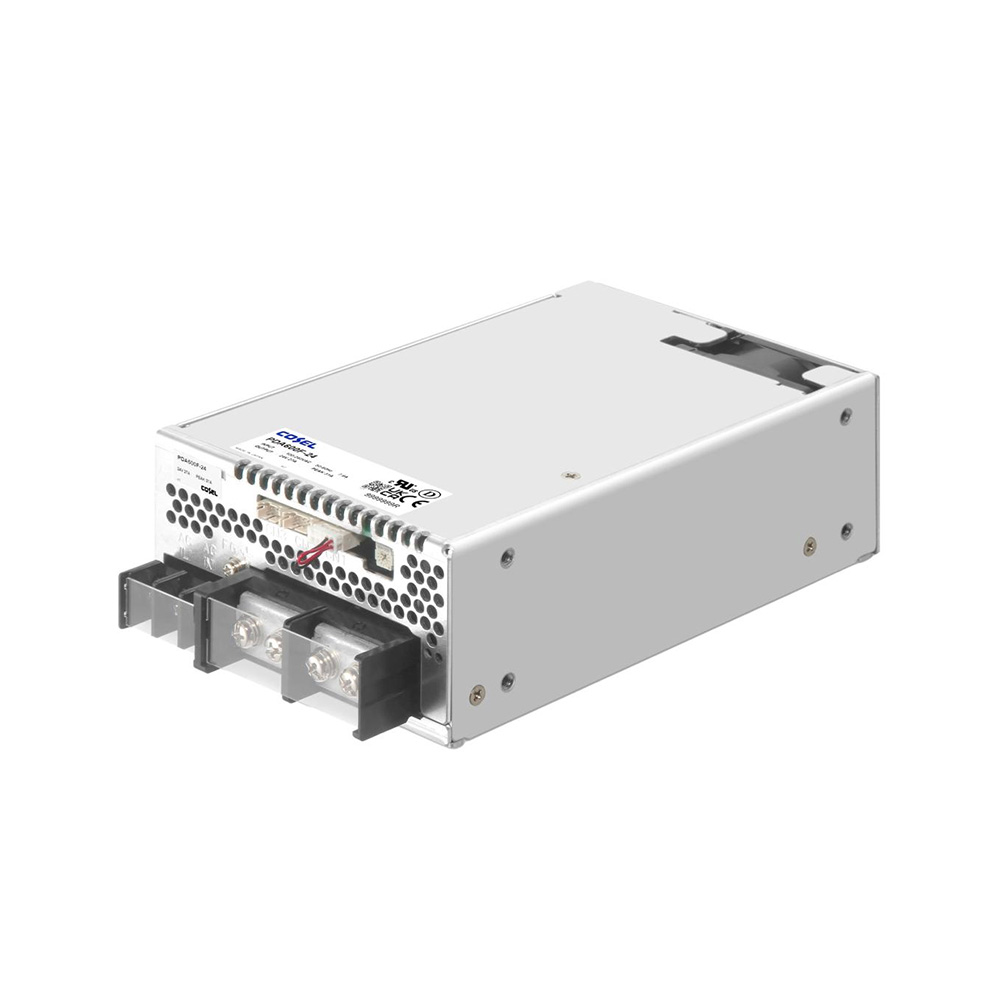

PDA600F Series

The PDA600F accepts a universal input of 85–264 Vac at 50 or 60 Hz. Single-output models are available with nominal outputs of 3.3, 5, 12, 15, 24, 36 or 48 Vdc.

Maximum output power depends on the selected voltage model and ranges from 396 to 648 W. For example, the 5 V model delivers 600 W, while the 24 V model provides up to 648 W continuously and supports a temporary peak output of 744 W when operated from a 230 Vac input.

Yes. The PDA600F supports parallel operation for increased output capacity. It also supports N+1 redundant configurations, allowing designers to improve power-system availability in critical industrial equipment.

Yes. The power supply includes remote on/off control, remote sensing, a Power Good signal and a 12 V auxiliary output. Remote sensing compensates for voltage drops across the output wiring between the power supply and load.

The PDA600F is suitable for industrial automation, semiconductor manufacturing equipment, communications infrastructure, test and measurement systems, production machinery and other equipment requiring a regulated, high-power dc output.

The output ratings vary considerably by model, so the page should avoid describing every variant simply as a 600 W supply. The current Cosel datasheet specifies outputs from 396 to 648 W, with the 24 V model also offering a time-limited peak-current capability.
