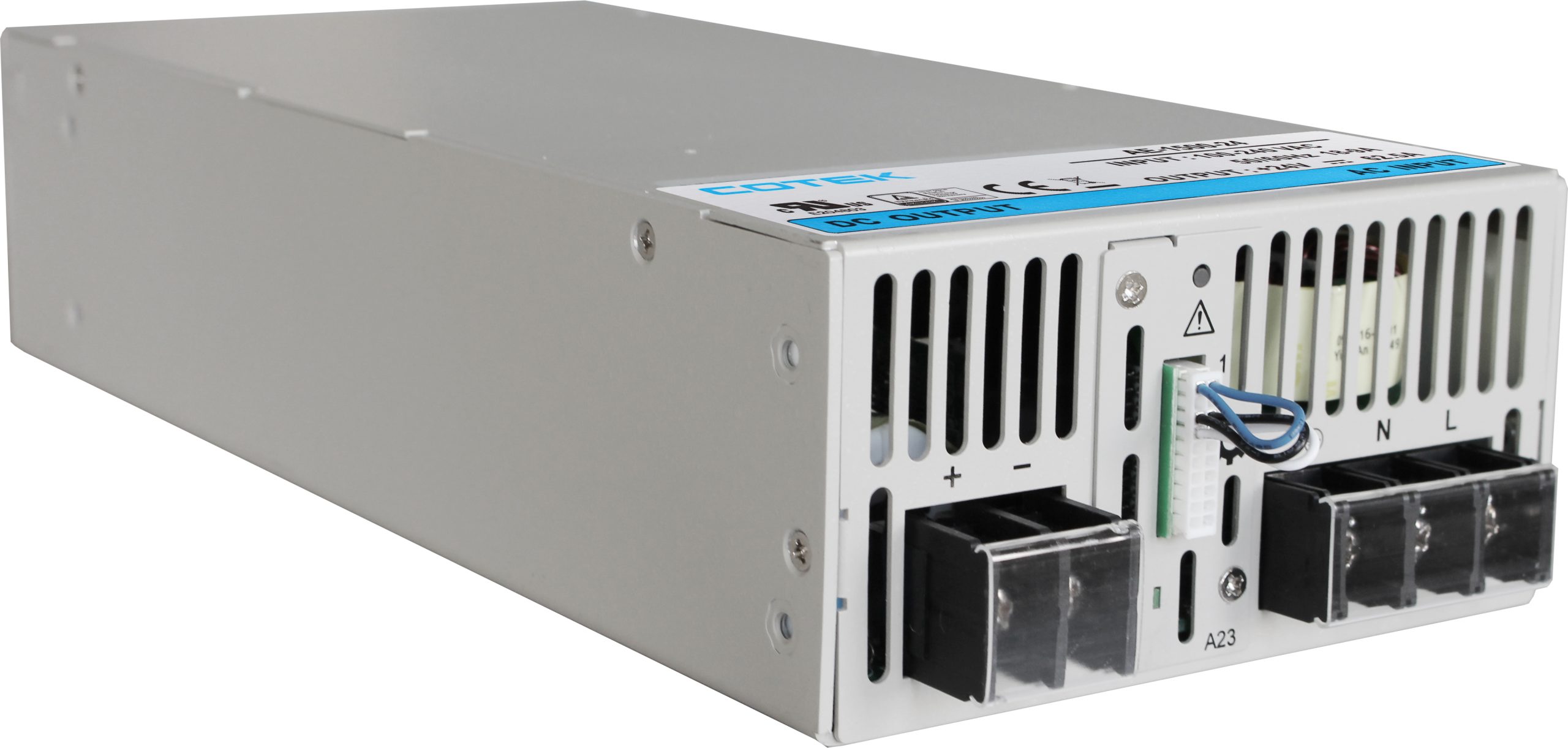

AD-1500-HV Series
The AD-1500-HV Series is a 1500W programmable AC-DC power supply designed for demanding industrial, automation and test applications requiring accurate high voltage DC output. Available with outputs from 120V to 400VDC, this chassis mount power supply combines programmable voltage and current control, high efficiency and comprehensive protection features in a compact package. With communication options including PMBus, MODBUS, RS-485 and Ethernet, the AD-1500-HV is an ideal high voltage AC-DC power supply for system integration, automated test equipment, battery charging and industrial control systems.
download the AD-1500-HV Series data sheet
Access detailed specifications, performance data, and technical drawings for the AD-1500-HV Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
1500W Programmable AC-DC Power Supply for High Voltage Applications
The Cotek AD-1500-HV Series is a 1500W programmable AC-DC power supply engineered for applications that require reliable, adjustable high voltage DC power. Delivering up to 1500W of continuous output, the series is available with 120V, 150V, 250V and 400VDC output options while accepting a universal 90-264VAC input for worldwide operation.
Designed as a robust chassis mount power supply, the AD-1500-HV provides programmable output voltage and current adjustment from 0-105%, allowing engineers to precisely configure the power supply for changing load requirements. Integrated constant current operation, programmable over-voltage protection and remote on/off control make the series suitable for automated systems and production environments.
Communication flexibility is a key advantage of the AD-1500-HV Series. Depending on the model selected, users can integrate the power supply using PMBus, MODBUS, RS-485 or Ethernet, enabling remote monitoring, configuration and diagnostics within industrial control systems. Selected models also support parallel operation via CANBus with built-in isolation for higher power applications.
With efficiency up to 92%, active power factor correction and intelligent temperature-controlled cooling, this high voltage AC-DC power supply delivers reliable performance while minimising energy consumption. Comprehensive protection features include over-voltage, over-current, overload, over-temperature and fan failure protection, ensuring safe operation in demanding industrial environments.
The AD-1500-HV is well suited to applications including industrial automation, battery charging systems, semiconductor equipment, laboratory instrumentation, laser systems, test and measurement equipment and other high voltage DC power requirements where programmable control and reliable operation are essential.
