FLEX50048A Series

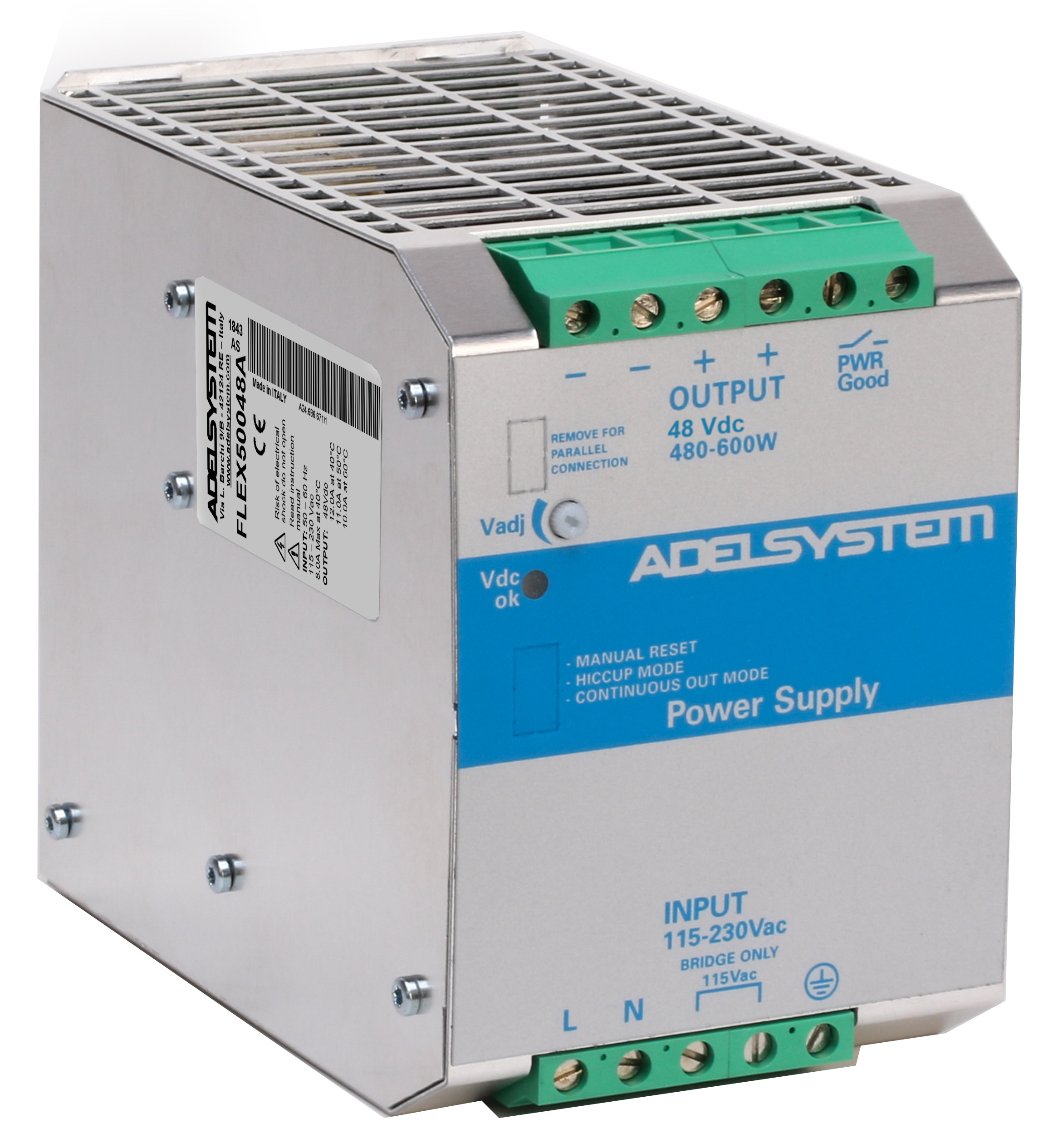

FLEx50048A Series from ADEL System, 600w DIN-rail ac-dc power supply
High power 48V industrial PSU with selectable protection modes and parallel capability.
download the FLEX50048A Series data sheet
Access detailed specifications, performance data, and technical drawings for the FLEX50048A Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
FLEx50048A Series delivers up to 480W from 115-230V ac input with efficiency up to 92%. It provides a regulated 48V dc output adjustable 41-56V and current up to 10A. Features include three selectable short-circuit protection modes (hiccup, continuous, manual reset), strong overload handling up to 50%, and support for parallel operation. Applications include industrial automation, machinery, and control panels. Certified to UL508, EN61010-2-201, EN60950, and EN50178.
