Conduction or Baseplate Cooled
Showing 33–48 of 63 results
-
GHA700F Series
Input Range: 85-264V ac.
Output Range: 12-56V.
Power: 650-701W.
Form Factor: 3″x5″ open frame.
Cooling Method: Conduction / Convection / Forced Air.
Certifications: UL62368-1, ANSI/AAMI ES60601-1, EN62368-1, EN60601-1, EN61558-2-16 -
HCA3500TF Series
Input Range: 180-528V ac 3-phase.
Output Range: 48-65V.
Power: 3500W.
Form Factor: Enclosed 1.5U.
Cooling Method: Conduction .
Certifications: UL62368-1, EN62368-1, CSA62368-1 -
IHC Series
Input Range: 90-264V ac.
Output Range: 12-48V.
Power: 600W.
Form Factor: Fully enclosed sealed module.
Cooling Method: Conduction via baseplate.
Certifications: IEC/EN/UL/CSA 60950-1, IEC/EN/UL/CSA 62368-1, CE, RoHS3 -
LCC1200 Series
Input Range: 90-264V ac / 127-374V dc.
Output Range: 24-48V adjustable .
Power: 1200W.
Form Factor: Enclosed conduction-cooled case.
Cooling Method: Baseplate conduction .
Certifications: IEC/UL62368-1, CCC, CE, UKCA -
LCC250 Series
Input Range: 90-264V ac.
Output Range: 12-48V adjustable.
Power: 250W.
Form Factor: Fully enclosed conduction/convection cooled.
Cooling Method: Conduction or convection.
Certifications: UL/CSA 62368-1, IEC60601-1, IEC61347-1/-2-13, CCC, CE -
LCC600 Series
Input Range: 90-264V ac / 127-374V dc or 180-305V ac / 254-420V dc.
Output Range: 12-54V adjustable.
Power: 600W.
Form Factor: Fully enclosed conduction-cooled.
Cooling Method: Baseplate conduction.
Certifications: IEC/EN/UL 62368-1, IEC/EN 60601-1, EN55032 Class B -

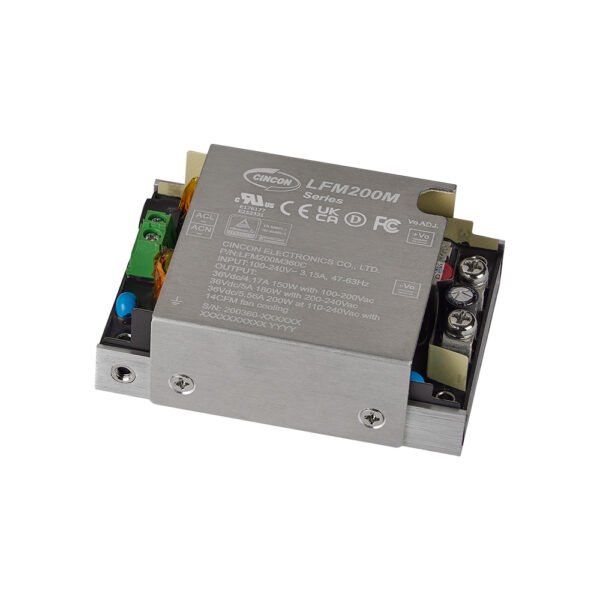

LFM200M Series
Input Range: 85-264V ac.
Output Range: 12-54V.
Power: 200W.
Form Factor: Low profile, 77.2 x 50.8 x 25.4 mm .
Cooling Method: Conduction or forced air .
Certifications: IEC/EN/UL60601-1, IEC/EN/UL62368-1, IEC/EN60335-1, CE, RoHS -
LFM200S Series
Input Range: 85-264V ac.
Output Range: 12-54V.
Power: 200W.
Form Factor: Low profile, 77.2 x 50.8 x 25.4 mm .
Cooling Method: Conduction or forced air .
Certifications: IEC/EN/UL62368-1, IEC/EN60335-1, CE, RoHS -

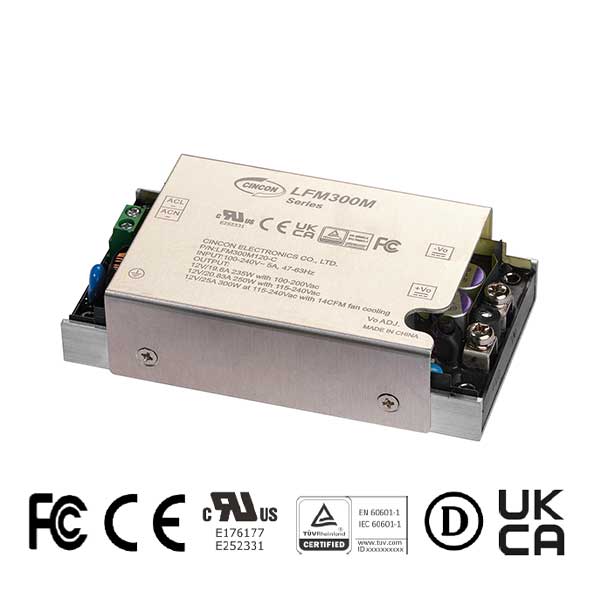

LFM300M Series
Input Range: 85-264V ac.
Output Range: 12-54V.
Power: 300W.
Form Factor: Low profile module with baseplate or cover options.
Cooling Method: Conduction, convection or forced air.
Certifications: IEC/EN/UL60601-1 , IEC/EN/UL62368-1, IEC/EN60335-1 -
LFM300S Series
Input Range: 85-264V ac.
Output Range: 12-54V.
Power: 300W.
Form Factor: Low profile module with baseplate or cover options.
Cooling Method: Baseplate conduction, convection or forced air.
Certifications: IEC/EN/UL62368-1, EN60335-1 -

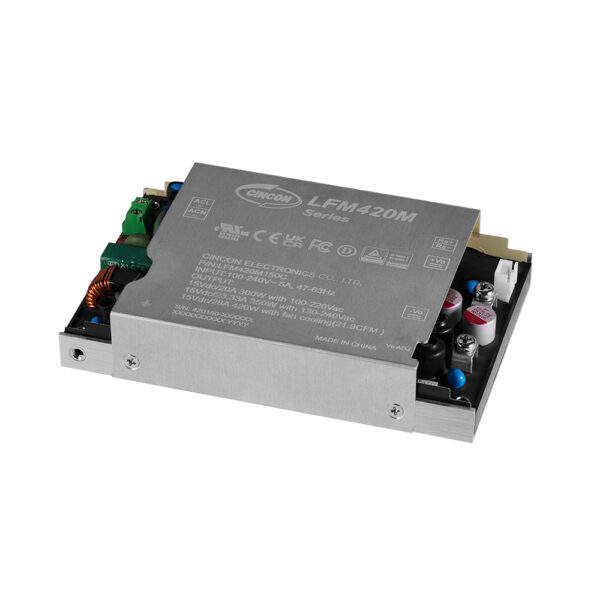

LFM420M Series
Input Range: 85-264V ac.
Output Range: 12-54V.
Power: 420W.
Form Factor: Low profile, 127 x 76.2 x 25.4 mm .
Cooling Method: Conduction or forced air .
Certifications: IEC/EN/UL60601-1, IEC/EN/UL62368-1, IEC/EN60335-1, CE, RoHS -
LFM420S Series
Input Range: 85-264V ac / 120-370V dc.
Output Range: 12-54V.
Power: 420W.
Form Factor: Low profile module with baseplate or cover options.
Cooling Method: Baseplate conduction, convection or forced air.
Certifications: IEC/EN/UL62368-1, EN60335-1 -

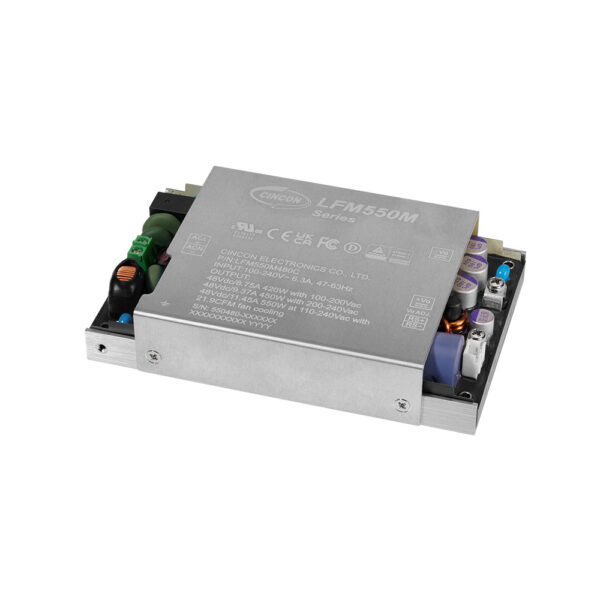

LFM550M Series
Input Range: 85-264V ac.
Output Range: 12-54V.
Power: 550W.
Form Factor: Low profile, 129.4 x 83.5 x 25.4 mm.
Cooling Method: Convection, conduction or forced air.
Certifications: IEC/EN/UL60601-1 , IEC/EN/UL62368-1, IEC/EN60335-1, CE, RoHS -
LFM550S Series
Input Range: 85-264V ac.
Output Range: 12-54V.
Power: 550W.
Form Factor: Low profile, 129.4 x 83.5 x 25.4 mm.
Cooling Method: Convection or conduction with external plate.
Certifications: IEC/EN/UL62368-1, IEC/EN60335-1, CE, RoHS, EN55032-B -
OFD1200A Series
Input Range: 85-305V ac.
Output Range: 12- 65V.
Power: 1200W.
Form Factor: Baseplate mount.
Cooling Method: Conductive cooling.
Certifications: UL, IEC, EN62368-1, CE, UKCA, MIL-STD-461, MIL-STD-810H, MIL-STD-1399-300 -
OFI1200A Series
Input Range: 85-305V ac.
Output Range: 12-48V.
Power: 1200W.
Form Factor: Enclosed baseplate module.
Cooling Method: Baseplate conduction.
Certifications: UL62368-1, EN62368-1, CSA62368-1
