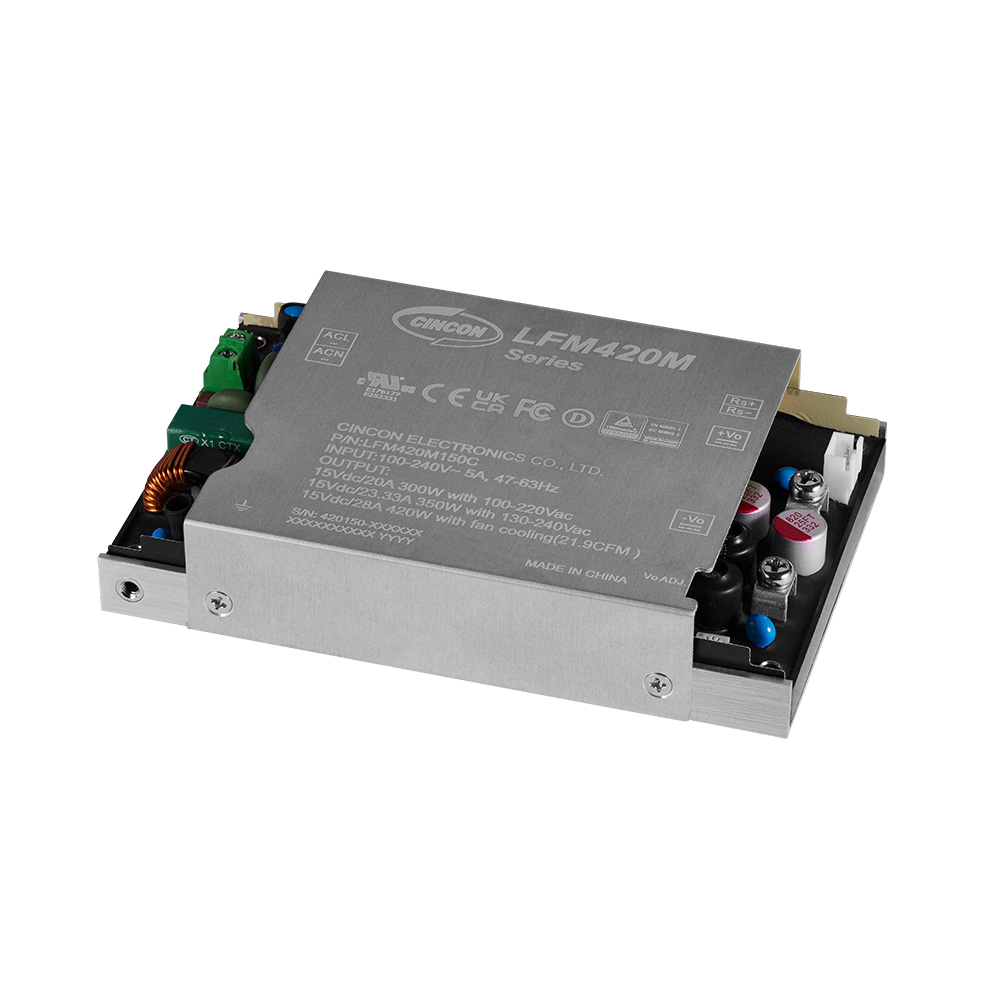

LFM420M Series
LFM420M Series from Cincon, 420W medical AC-DC power supply.
High efficiency, compact and low profile, the LFM420M Series provides reliable medical-grade power with conduction or forced air cooling.
download the LFM420M Series data sheet
Access detailed specifications, performance data, and technical drawings for the LFM420M Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The LFM420M Series is a 420W medical ac-dc power supply with universal 85-264V ac input and efficiencies up to 94.5%. With a 25.4mm low profile design and high power density of 28W/in³, it offers single outputs from 12V to 54V. Featuring active PFC, constant current mode, remote control functions and full protection including OVP, OCP, OTP and continuous short circuit, it supports Class I installation. Designed for medical, industrial and laboratory applications. Certified to IEC/EN/UL60601-1 (2 MOPP), IEC/EN/UL62368-1 and IEC/EN60335-1.
