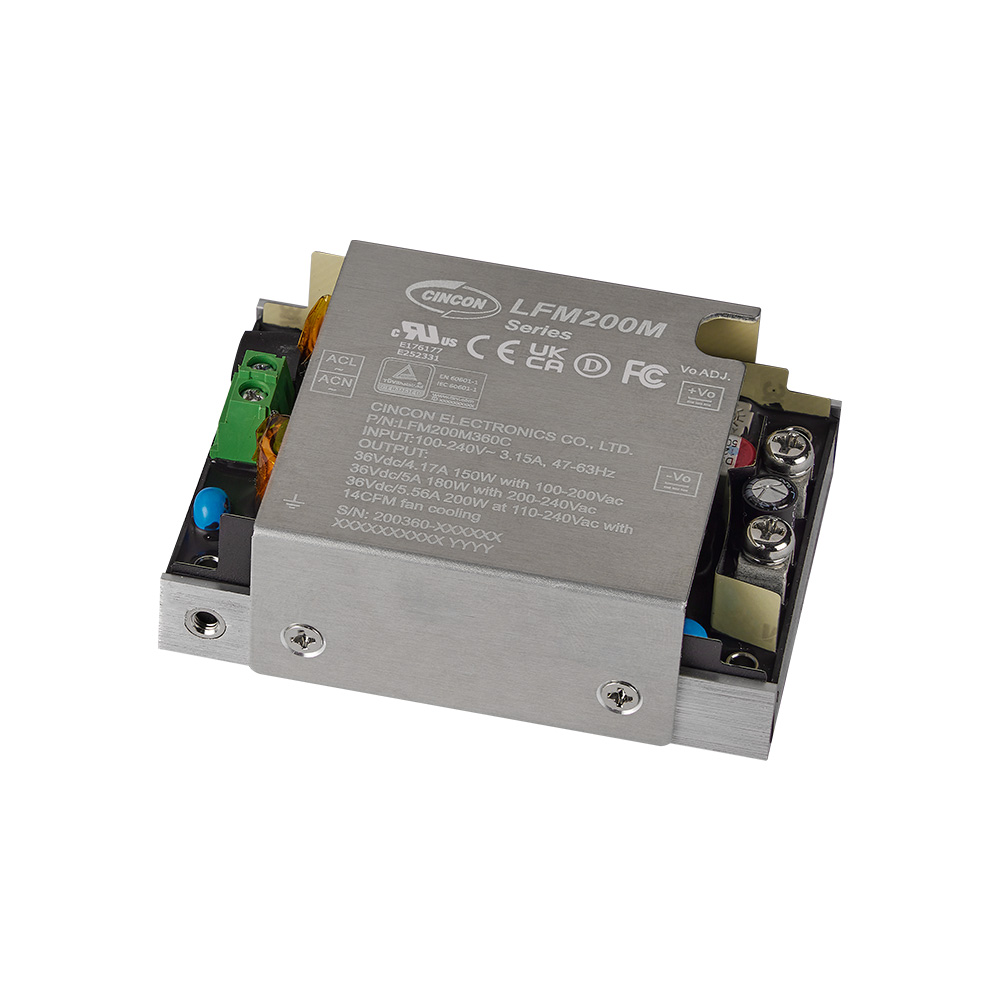

LFM200M Series
LFM200M Series from Cincon, 200W medical AC-DC power supply.
Compact, high efficiency and low profile, the LFM200M is designed for medical and industrial applications with strong thermal performance.
download the LFM200M Series data sheet
Access detailed specifications, performance data, and technical drawings for the LFM200M Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The LFM200M Series is a 200W medical ac-dc power supply with universal 85-264V ac input and efficiencies up to 94%. It has a 25.4mm low-profile package with high power density and supports Class I and Class II installations. Available in output voltages from 12V to 54V, it offers conduction cooling, baseplate and covered options, and delivers full protection features including OCP, OVP, OTP and continuous short circuit protection. Certified to IEC/EN/UL60601-1 (2 MOPP), IEC/EN/UL62368-1 and IEC/EN60335-1.
