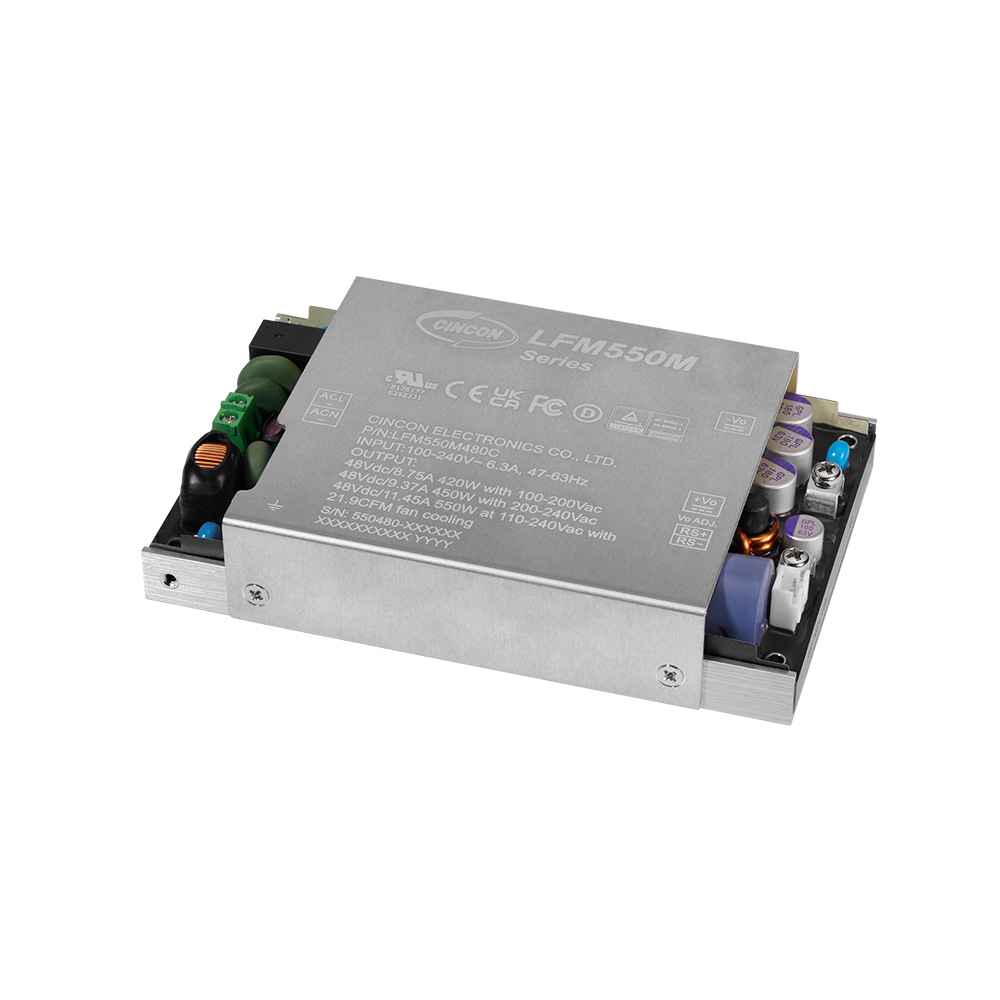

LFM550M Series
LFM550M Series from Cincon, 550W medical AC-DC power supply.
Low profile 25.4mm design with high efficiency and full medical approvals, ideal for healthcare and industrial systems.
download the LFM550M Series data sheet
Access detailed specifications, performance data, and technical drawings for the LFM550M Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The LFM550M Series is a 550W medical ac-dc power supply with universal 85-264V ac input and efficiencies up to 94%. With Class I and Class II options, medical 2 x MOPP approval, and a high power density of 32.84W/in³, it offers outputs from 12V to 54V. Designed for conduction, convection or forced air cooling, it includes full protection features (OCP, OVP, OTP, SCP) and supports operation up to 5000m altitude. Certified to IEC/EN/UL60601-1, IEC/EN/UL62368-1, IEC/EN60335-1 and meets EN55011/EN55032 Class B EMC.
