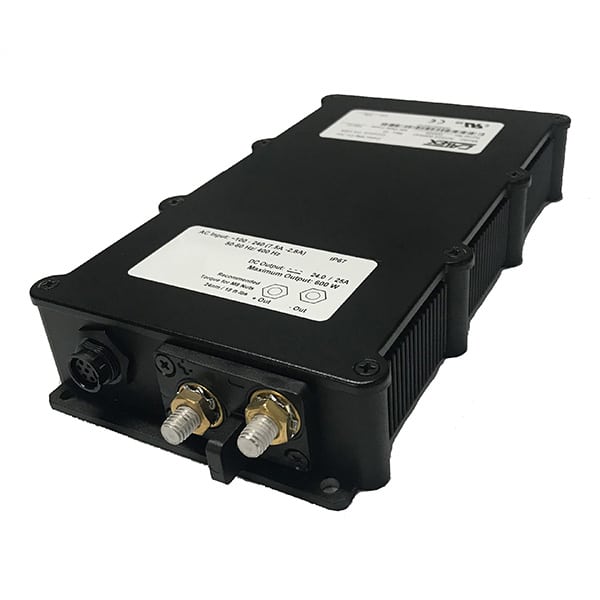

IHC Series
IHC Series from Calex, 600W sealed ac-dc converters.
Rugged IP67 design with conduction cooling and high efficiency for harsh environments.
download the IHC Series data sheet
Access detailed specifications, performance data, and technical drawings for the IHC Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The IHC Series delivers 600W output power with universal ac input and active PFC, achieving up to 93.5% efficiency. Fully sealed to IP67 and conduction cooled via baseplate, it operates from -40°C to +85°C. With reinforced isolation, droop current sharing, and constant current overload behaviour, it is ideal for motor drives, LED lighting, battery charging and outdoor equipment. Certified to IEC/EN/UL/CSA 60950-1 with migration to IEC/EN/UL/CSA 62368-1, CE marked and RoHS3 compliant.
