Input: 9-36V or 18-75V dc
Outputs: 3V to 24V dc
Power: 10 Watt
Tamb: -40 to +85°C
Dims: 2" x 1" x 0.465"
Make an Enquiry
Request a Sample

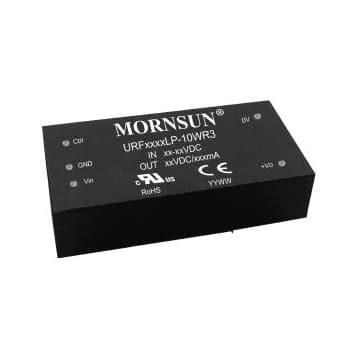

The single output Mornsun URF_LP-10WR3 series are isolated 10W dc dc products with 4:1 input voltage. They feature efficiency up to 87%, 3000Vdc isolation, operating temperature of -40°C to +85°C, input under-voltage protection, output over-voltage, over-current, short circuit protection and EMI meets CISPR22/EN55022 Class A, making them suitable for applications in medical, industrial control, electric power, instrumentation and communication fields. Chassis mount versionA2S and the DIN rail mount version A4S also provide input reverse polarity protection, LED power ON and screw terminals.
10W isolated, regulated single output, 4:1 input range
Efficiency up to 87%
Input voltage range: 9 to 36Vdc; 18 to 75Vdc
No-load power: 0.12W
Input under voltage/short circuit/over temp/
output over voltage/over current protection
Weight: 24g; A2S: 46g; A4S: 66g
MTBF: 1000k hrs
Operating temperature range: -40°C to +85°C
Standard version: PCB mount with industrystandard pinout
Chassis mount version: A2S suffix
DIN rail mount version: A4S suffix
|MODEL NUMBER||INPUT RANGE||OUTPUT||POWER|
