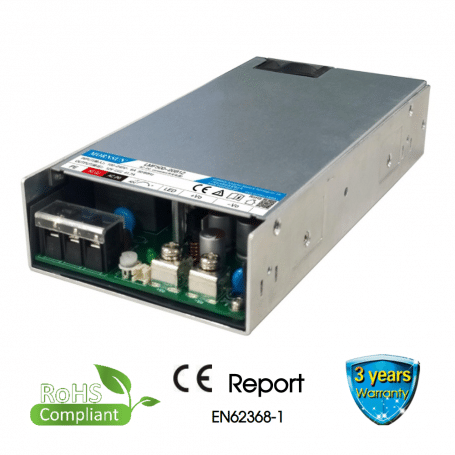

LMF500-20Bxx Series

Input: 80 - 264V ac / 110 - 370V dc
Outputs: 12 to 54V
Power: 500 Watt
Tamb: -30℃ to +70℃
Dims: 203.1 x 101.6 x 40.6mm
CE EN/UL62368-1 Approved
Built in PFC Function

Make an enquiry

Request a sample

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Phone
This field is for validation purposes and should be left unchanged.

Request a Sample

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

LMF500-20Bxx Series is one of Mornsun’s enclosed AC-DC switching power supply.

It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation.

These converters offer excellent EMC performance and meet IEC/EN/UL62368, IEC/EN60601, EN60335, GB4943, EN61558 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc

feature list

Universal 80 - 264VAC or 110 - 370VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -30℃ to +70℃
Low standby power consumption, high efficiency, active PFC
High I/O isolation test voltage up to 4000VAC
Output short circuit constant current, over-current, over-voltage, over-temperature protection
Over-voltage class Ⅲ (designed to meet EN61558)
Remote sense compensation, remote ON/OFF function

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
LMF500-20B12	80 - 264V AC 110 - 370V DC	12V	500W
LMF500-20B15	80 - 264V AC 110 - 370V DC	15V	500W
LMF500-20B24	80 - 264V AC 110 - 370V DC	24V	500W
LMF500-20B27	80 - 264V AC 110 - 370V DC	27V	500W
LMF500-20B36	80 - 264V AC 110 - 370V DC	36V	500W
LMF500-20B48	80 - 264V AC 110 - 370V DC	48V	500W
LMF500-20B54	80 - 264V AC 110 - 370V DC	54V	500W

Downloads

Click on the link below for an instant download.

LMF500-20Bxx Series Datasheet
