LCM4000HV/LCM12K Series

Input: 180-264 / 311-528 V ac
Outputs: 100 to 300 V dc
Power: 4000W (12kW in 1U subrack)
Tamb: 0°C to +50°C
Dims: 480 x 140 x 40.3mm or 1U x 540mm Subrack

Make an Enquiry

URL
This field is for validation purposes and should be left unchanged.
Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA

APPLICATION

The Artesyn LCM4000HV and LCM12K power solutions are purpose-built to deliver robust, flicker-free dc power to medium and large-scale LED lighting and horticulture systems.

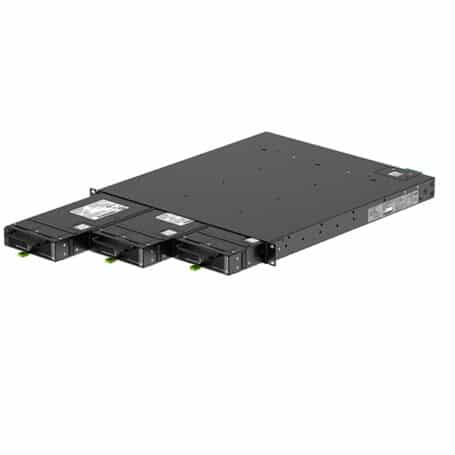

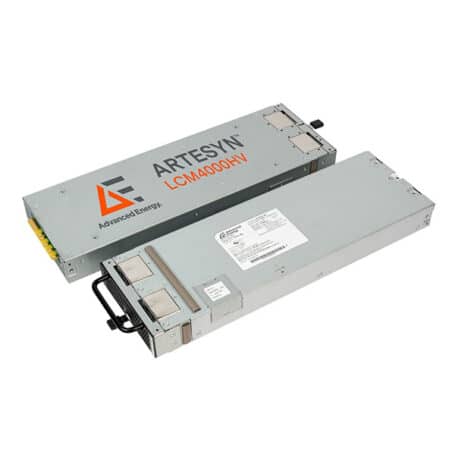

Featuring a high-voltage dc output range of 100 to 300 V dc, they enable long-distance wiring with minimal loss and improved efficiency. The LCM4000HV delivers up to 4 kW per module, while the LCM12K shelf supports up to 12 kW with three modules in a compact 1U form factor. Compatibility with all standard ac inputs, from single-phase 208 V ac to 3-phase 600 V ac, ensures versatile deployment in global installations. Built-in protection features like OVP, OCP, OTP, and short circuit protection enhance operational reliability and system longevity.

These systems comply with CE, UL, EN, and IEC standards, providing high safety and quality assurance. Ideal for horticulture, commercial lighting, and large LED systems, the LCM series offers scalable power with advanced digital and analogue control.

feature list

Digital and analogue programming and monitoring
Smart variable speed fans for thermal efficiency
DSP controlled for high precision regulation
High power density with 24 W/in³
Compatible with Advanced Energy iTS and IHLC
Optional dust filter for harsh environments
Supports parallel and redundant shelf configurations
Low no-load power consumption
Easy system integration with modular rack scalability
Wide AC input compatibility for global use
UL, CSA, EN, and IEC 62368-1 listed
CB certificate and report
CE marked (LVD + RoHS)
RoHS 3
EMI Class A
EN61000 immunity

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
LCM4000HV-T-P	180 to 264 V ac	100 - 300 V dc	4000W
LCM4000HV-T-S	311 to 528 V ac	100 - 300 V dc	4000W
LCM4000HV-P-P	180 to 264 V ac	100 - 300 V dc	4000W
LCM4000HV-P-S	311 to 528 Vac	100 - 300 V dc	4000W
LCM4000HV-P-P-RED	180 to 264 V ac	100 - 300 V dc	4000W
LCM4000HV-P-S-RED	311 to 528 Vac	100 - 300 V dc	4000W
LCM12K-SHF-N	HIGH LINE, 600 VAC W/NEUTRAL	100 - 300 V dc	12000W
LCM12K-SHF-P	LOW LINE, 200/220/230/240 V ac	100 - 300 V dc	12000W
LCM12K-SHF-S	HIGH LINE, 380/480 V ac	100 - 300 V dc	12000W
LCM12K-SHF-1PH	LOW LINE, 200/220/230/240 V ac	100 - 300 V dc	12000W
LCM12K-SHF-RED-P	LOW LINE, 200/208/220/230/240 V ac	100 - 300 V dc	12000W
LCM12K-SHF-RED-S	HIGH LINE, 380/480 V ac	100 - 300 V dc	12000W
LCM12K-SHF-RED-N	540 to 660 V ac	100 - 300 V dc	12000W

Downloads

Click on the link below for an instant download.

LCM4000HV/LCM12K Series Datasheet
LCM4000HV Technical Reference Note
LCM12K Technical Reference Note
