Input: 5Vdc (others to follow early 2020)
Outputs: 3V3 to 24V dc
Power: 1 Watt
Tamb: -40°C to +105°C
Make an Enquiry
Request a Sample

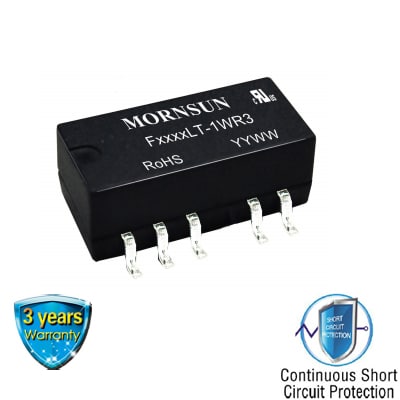

The F_LT-1WR3 series are specially designed for applications where a low power bi-polar supply voltage has to be derived from a fixed bus voltage
The F_LT-1WR3 series are suitable for use where
a) Where the voltage of the input power supply is fixed (voltage variation is < ±10%)
b) Where isolation is required between input and output (isolation voltage is < 3000VDC)
c) Where the regulation of the output voltage is not critical
Typical applications include digital circuits, low frequency analogue circuits, and IGBT drive circuits
Very low cost
High efficiency up to 85%
Continuous short circuit protection
Compact SMD package
Internal SMD construction
Temperature range: -40°C to +105°C
No heat sink required
No external components required
Industry standard pinout
UL62368, EN62368 Approval
|MODEL NUMBER||INPUT RANGE||OUTPUT||POWER|
