Input: 7-18V DC & 24-58V DC
Outputs: 12-14V Buck Mode / 48V Boost mode
Power: 1500-3000 Watt
Temp: -40°C to +100°C
Size: 141.7 x 148.6 x 27.7mm / 220 x 154 x 25.6mm
Make an Enquiry

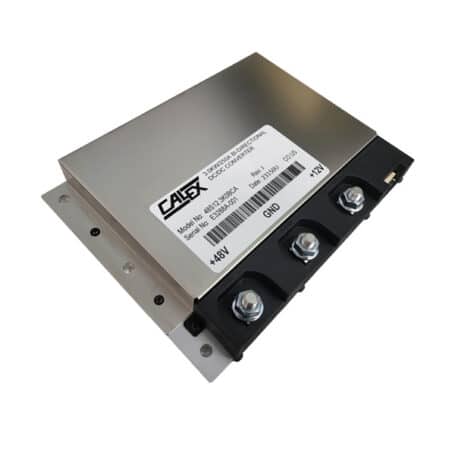

The 1500-3000 Watt Bi-directional non-isolated DC-DC converter, BCA Series, provides a complete solution for in-vehicle power distribution with 12 or 24V/48V battery configurations for a variety of applications including micro and mild hybrid automotive systems. The bi-directional DC/DC converter charges a low side (12 or 24V) battery during normal operation (buck mode) and charges or assists the high voltage (48V) battery in emergency situations (boost mode).
The bidirectional DC/DC converter operates more as an ideal current source with variable direction, thus allowing energy transfer between two voltage domains. Voltage feedback maintains the output voltage within the acceptable operating range and eventually allows a custom charging profile for the battery pack. It regulates the average current flowing between the high voltage and low voltage ports in the direction selected via CAN interface.
It is packaged in an unprecedented low profile, mechanically enclosed package. The package makes the unit ideal for harsh shock and vibration requirements as well as easy integration with a battery pack.
Automotive 12 or 24V/48V Battery System
Buck, boost and precharge modes of operation
Low Side (LS): 12 or 24V
High Side (HS): 48V
Overcurrent, Overvoltage, & Over-temperature Protection. All protections are latching.
Disconnect switch LS (12 or 24V) and HS (48V)
Reverse polarity protection
Constant Voltage and Constant Current Mode
Average Current Mode Control
Custom Charging Profile for the Battery Pack
LS and HS Current Monitoring
Internal temperature monitoring
High power density
Low profile 1”
Efficiency up to 96.5%
Excellent thermal performance
Constant switching frequency
CAN 2.0b Interface including remote ON/OFF
Good shock and vibration damping
Highly Integrated Solution
|9 to 16V - Low side
24 to 56V - High side
|9 to 16V - Low side
24 to 58V - High side
|12V to 35V - Low side
24V to 56V -High side
Click on the link below for an instant download.
3000W BCA Series Bi-Directional Datasheet
3000W (24V) BCA Series Bi-Directional Datasheet
1500W (12V) BCA Series Bi-Directional Datasheet
