Showing 305–320 of 369 results
-
PDA50F Series
Input Range: 85-264V ac.
Output Range: 5-24V.
Power: 50W.
Form Factor: Enclosed.
Cooling Method: Convection / forced air.
Certifications: UL62368-1, EN62368-1, CE, UKCA, RoHS, DEN-AN -

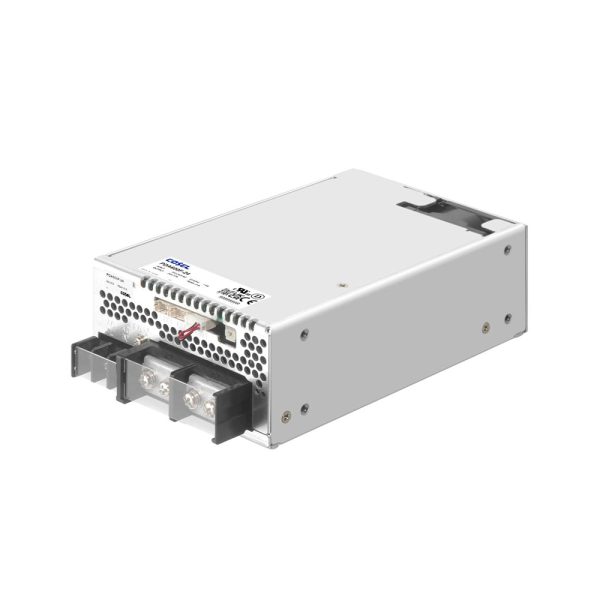

PDA600F Series
Input Range: 85-264V ac.
Output Range: 3.3-48V.
Power: 396W-648W.
Form Factor: Enclosed, 120 x 61 x 190 mm.
Cooling Method: Forced cooling .
Certifications: UL62368-1, EN62368-1, CE, UKCA, RoHS, DEN-AN -
PDF700S CMFC(D/D-P) Series
Input Range: 90-264V ac / 120-370V dc.
Output Range: 12-56V.
Power: 700W.
Form Factor: Chassis-mount module .
Cooling Method: Baseplate cooled with convection/heatsink.
Certifications: IEC/EN/UL62368-1, MIL-STD-461F -
PDF700S Series
Input Range: 90-264V ac.
Output Range: 12-56V.
Power: 700W.
Form Factor: Full-brick module .
Cooling Method: Baseplate conduction.
Certifications: IEC/EN/UL 62368-1 -
PDF700S(B) CMFC(D/D-P) Series
Input Range: 90-264V ac.
Output Range: 12-56V.
Power: 700W.
Form Factor: Chassis mount, 240 x 110 x 40.3 mm / 240 x 110 x 42.0 mm .
Cooling Method: Baseplate conduction .
Certifications: IEC/EN/UL62368-1, EN55032 Class A/B, CE, RoHS, MIL-STD-461 -
PFC750 Series
Input Range: 90-264V ac.
Output Range: 390V dc.
Power: 750W.
Form Factor: Half-brick module .
Cooling Method: Baseplate conduction.
Certifications: IEC/EN/UL 62368-1 -
PMM03 Series
Input Range: 4.5-18V dc / 9-36V dc / 18-75V dc
Output Range: 3.3V-±15V
Power: 3W
Form Factor: SIP / DIP
Cooling Method: Free air convection
Certifications: IEC60601-1, EN60601-1, UL62368-1 -
PMM06 Series
Input Range: 4.5-18V dc / 9-36V dc / 18-75V dc
Output Range: 3.3V-±15V
Power: 6W
Form Factor: SIP / DIP
Cooling Method: Free air convection
Certifications: IEC60601-1, EN60601-1, UL62368-1 -
PMM10 Series
Input Range: 9-18V dc / 18-36V dc / 36-75V dc / 9-36V dc
Output Range: 3.3V-±15V
Power: 10W
Form Factor: Encapsulated 1″ x 1″
Cooling Method: Free air convection
Certifications: IEC60601-1, EN60601-1, UL62368-1 -
PMM15 Series
Input Range: 9-18V dc / 18-36V dc / 36-75V dc / 9-36V dc
Output Range: 3.3V-±15V
Power: 15W
Form Factor: Encapsulated 1″ x 1″
Cooling Method: Free air convection
Certifications: IEC60601-1, EN60601-1, UL62368-1 -
PMM20 Series
Input Range: 9-18V dc / 18-36V dc / 36-75V dc / 9-36V dc
Output Range: 3.3V-±15V
Power: 20W
Form Factor: Encapsulated 1″ x 1″
Cooling Method: Free air convection
Certifications: IEC60601-1, EN60601-1, UL62368-1 -
PMM30 Series
Input Range: 9-18V dc / 18-36V dc / 36-75V dc / 9-36V dc
Output Range: 3.3V-±15V
Power: 30W
Form Factor: Encapsulated 1″ x 1″
Cooling Method: Free air convection
Certifications: IEC60601-1, EN60601-1, UL62368-1 -
PMP03 Series
Input Range: 4.5-18V dc / 9-36V dc / 18-75V dc
Output Range: 3.3V-±15V
Power: 3W
Form Factor: SIP / DIP
Cooling Method: Free air convection
Certifications: IEC60601-1, EN60601-1, UL62368-1 -
PMP06 Series
Input Range: 4.5-9V dc / 9-18V dc / 18-36V dc / 36-75V dc / 9-36V dc
Output Range: 3.3V-±15V
Power: 6W
Form Factor: Encapsulated module
Cooling Method: Free air convection
Certifications: ANSI/AAMI ES60601-1, EN60601-1, UL60950-1 -
PMP10 Series
Input Range: 4.5-9V dc / 9-18V dc / 18-36V dc / 36-75V dc / 9-36V dc
Output Range: 3.3V-±15V
Power: 10W
Form Factor: Encapsulated module
Cooling Method: Free air convection
Certifications: ANSI/AAMI ES60601-1, EN60601-1, UL60950-1 -
QCM Series
Input Range: 18-36V dc
Output Range: 3.3V-28V
Power: 75W
Form Factor: Chassis Mount
Cooling Method: Baseplate conduction
Certifications: UL60950-1, EN60950-1, RoHS
