NP05 Series

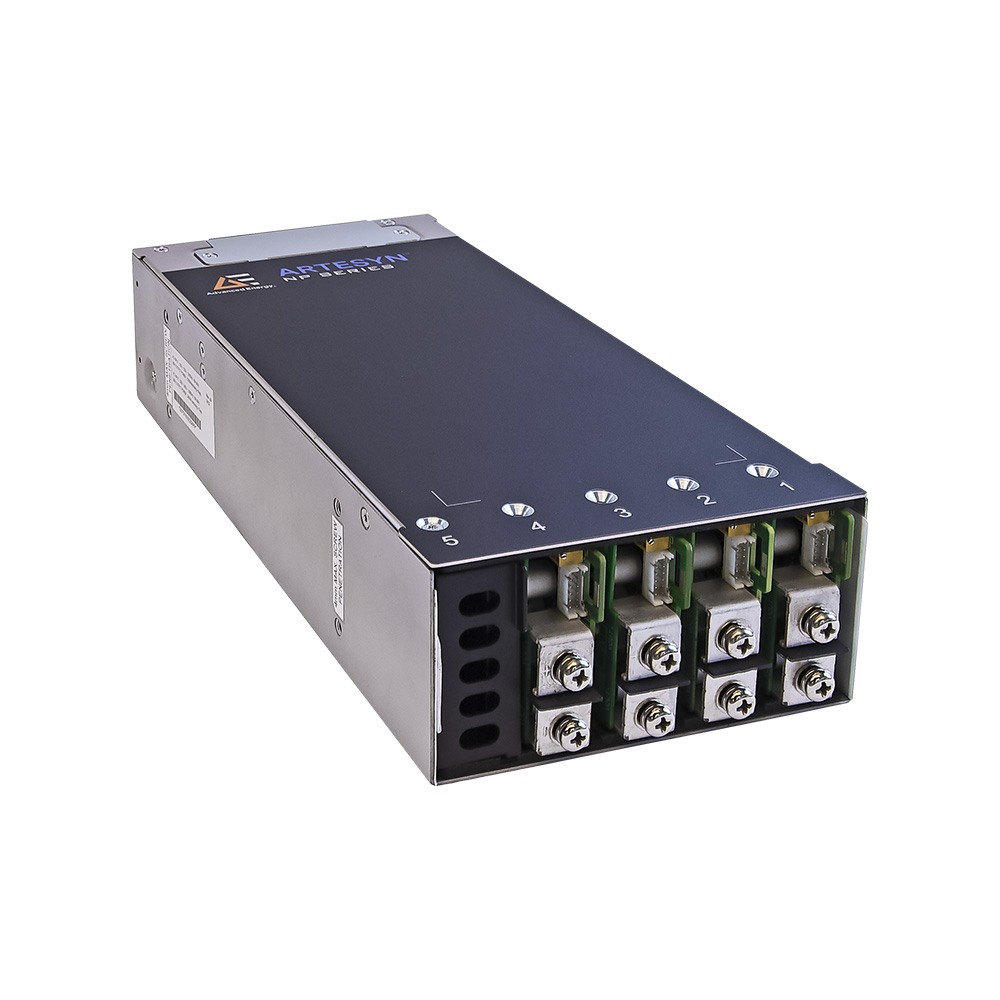

NP05 Series from Advanced Energy, 2400W configurable ac-dc power supply
Compact 5-slot modular PSU with hot-swappable outputs, high density, and digital control.
download the NP05 Series data sheet
Access detailed specifications, performance data, and technical drawings for the NP05 Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
NP05 Series delivers up to 2400W from 90-264V ac input with efficiency around 90%. The 5-slot chassis supports isolated output modules configurable from 1-57.6V, with series/parallel connection and active current share. Features include MODBUS RTU digital communication, with options for PMBus, CANopen, and MODBUS TCP. Applications include medical (BF rated), test, industrial, and semiconductor equipment. Certified to IEC/EN62368-1, UL62368-1, IEC/EN60601-1, and SEMI F47.
FEATURES
INDUSTRY
| Model | Input Voltage | Output Voltage | Power Rating |
|---|---|---|---|
| NP05W1A | 90-264V ac | Up to 57.6V configurable | 2400W |
| 1S-0005M | 90-264V ac | 5V | 280W |
| 1S-0012M | 90-264V ac | 12V | 400W |
| 1S-0015M | 90-264V ac | 15V | 400W |
| 1S-0024M | 90-264V ac | 24V | 400W |
| 1S-0048M | 90-264V ac | 48V | 400W |
| 1S-0005L | 90-264V ac | 5V | 280W |
| 1S-0012L | 90-264V ac | 12V | 400W |
| 1S-0015L | 90-264V ac | 15V | 400W |
| 1S-0024L | 90-264V ac | 24V | 400W |
| 1S-0048L | 90-264V ac | 48V | 400W |
