10W of Output Power in DIP16 Package: EC5DAW Series Packs a Punch!

28th February 2023

Share This Post

Share This Post

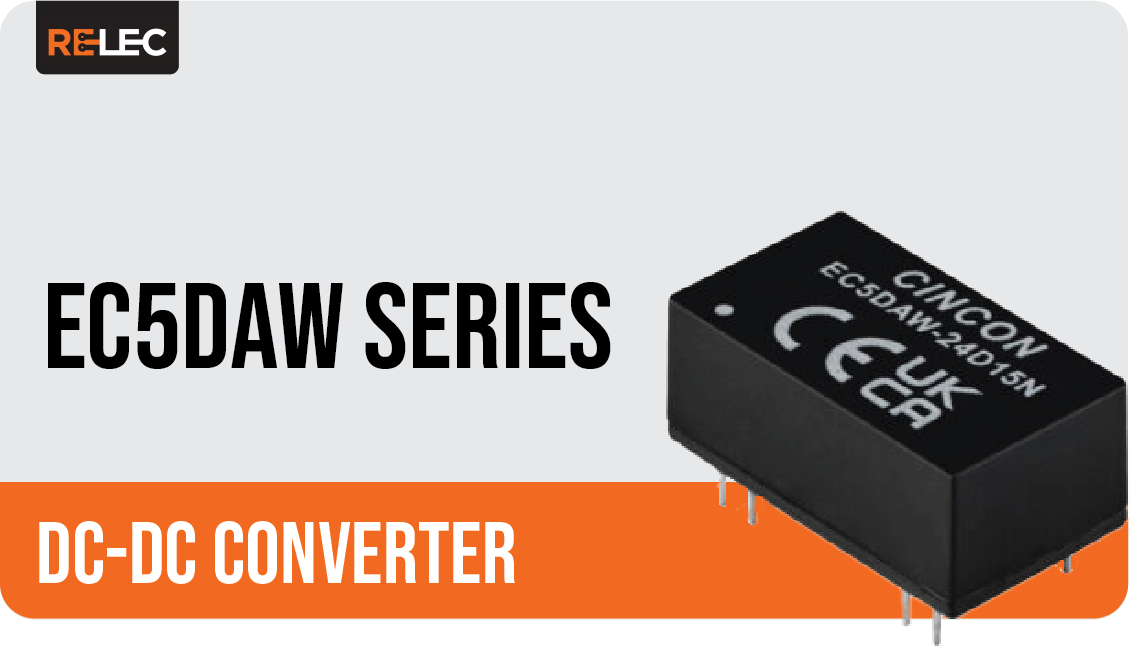

The EC5DAW series is a new compact 10 Watt DC-DC converter in an extremely compact DIP16 package, making it extremely versatile for applications where space is at a premium.

The EC5DAW series is available in two 4:1 input ranges covering 9 to 36Vdc & 18 to 74Vdc, making them suitable for all industrial input ranges covering 12V, 24V and 48Vdc systems.

The EC5DAW series of DC-DC converters offers 10 watts of output power with output voltages of 3.3, 5, 12, 15, ±12, & ±15VDC.

Units come in an industry standard package measuring just 0.95” x 0.54” x 0.39” or 24.2 x 13.7 x 10.0mm and an operating ambient temperature range of -40°C to 85°C with allowable case temperatures up to +105°C which is a result of a very high operating efficiency of up to 89%.

The EC5DAW is CE / UKCA marked in accordance with EN62368-1 and is tested to 3000Vdc / 2000Vac isolation as standard.

The EC5DAW also has very low no-load power consumption (<7mA), and a remote on/off control, making it ideal for use in energy-critical systems.

Units feature protection against input UVLO (under-voltage lockout), output over-current, output over-voltage, and over-temperature and continuous short circuit conditions.

Related Content

Relec Electronics and their partners at Cincon announced the release of the ultra-wide input range EC7AW18-72 10-Watt DC-DC Converter Series.

The EC5DAW is available to sample now with production lead times currently of just six to eight weeks.

In addition, members of the technical team at Relec can guide developers through the design-in process, provide samples and commercial support right through to the production phase.
