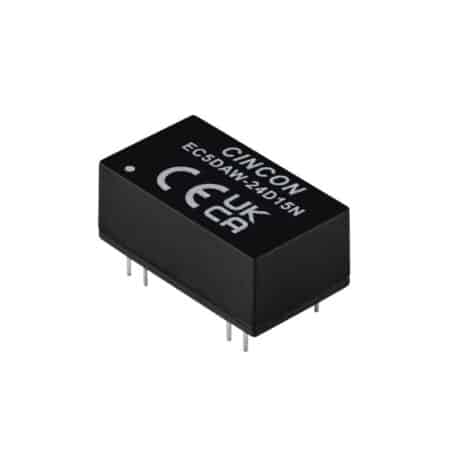

EC5DAW Series

EC5DAW Series

Input: 9-74VDC
Outputs: 3.3VDC to ±15VDC
Power: 10 Watt
Tamb: -40°C to +105°C
Dims: 24.13 x 13.72 x 9.91mm (DIP24)
3000VDC Isolation

Make an enquiry

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now


The EC5DAW series of DC-DC converters offers 10 watts of output power with output voltages of 3.3, 5, 12, 15, ±12, & ±15VDC.  The EC5DAW comes in an industry standard 0.95”x0.54”x0.39” package. It has a wide (4:1) input voltage range of 9 to 36VDC (24VDC nominal) or 18 to 74VDC (48VDC nominal) with 3000VDC isolation as standard.

The EC5DAW series has a high efficiency figure of up to 89%, allowing for case operating temperature from –40℃ to 105℃ with derating. Very low no load power consumption (7mA) makes these units the ideal solution for energy-critical systems.

The EC5DAW is fully protected against input UVLO (under voltage lock out), output over-current, continuous short circuit conditions. Standard control functions include remote on/off (negative logic).



Click on the link below for an instant download.

  • EC5DAW series datasheet
  • EC5DAW series application note
