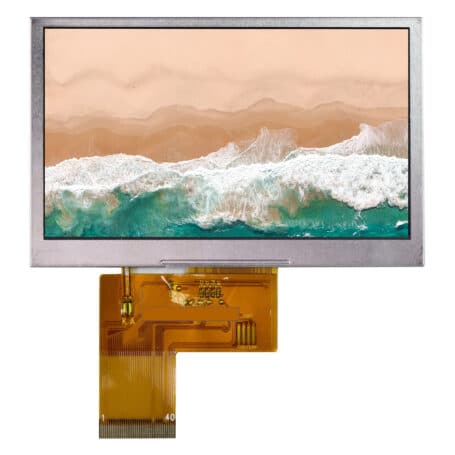

4.3” WVGA IPS TFT LCD Display
Screen size: 4.3″
Aspect Ratio: 16:9
Active area: 95.04(W) x 53.85(H) mm
Resolution: 800 x 480
Interface: TTL 24-bit RGB
Brightness: 400cd/m2 – 1100cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +80°C
Make an Enquiry
The 4.3″ WVGA IPS TFT LCD Display range all incorporates a low power backlight design, whilst maintaining a brightness level of up to 1100 cd/m2 and contrast ratio of up to 800. The operating temperature within this range include options of an extended up to -30°C to +80°C.
The small size and high resolution on these 4.3” WVGA IPS TFT LCD Displays provide an outstanding picture quality. Along with the high brightness and wide operating temperature options, means this unit is the perfect solution for harsh environments where displayed information is mission critical.
Further modifications are available on these 4.3″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – customise your display
Brightness options from 500 to 1400cd/m2
IPS Full Viewing Angles
Resolution of 800 x 480
Low Power Consumption
TTL 24-bit RGB Interface
Operating temperature range -30°C to +80°C
Storage temperature range -30°C to +80°C
Module Supply Voltage: 3.3 Vdc
Contrast Ratio: 800
LED Life time: 50,000 hours
|OPERATING TEMP (°C)||TOUCH|
|13-043WISB4GA0-S||TTL 24-bit RGB||400||-30 to +80||Resistive|
|13-043WISBIBA0-S||TTL 24-bit RGB||450||-30 to +80||PCAP|
|13-043WISB0GA0-S||TTL 24-bit RGB||500||-30 to +80||None|
|13-043WISB4GA1-S||TTL 24-bit RGB||900||-30 to +80||Resistive|
|13-043WISBIBA1-S||TTL 24-bit RGB||950||-30 to +80||PCAP|
|13-043WISB0GA1-S||TTL 24-bit RGB||1100||-30 to +80||None|
