COOLX 3000 Series – Versatile, Intelligent & Dependable

The CoolX 3000 is the latest release from Advanced Energy’s Excelsys division and provides system design engineers with 3000W of flexible dc power, with up to 24V outputs in a single package. A choice of 12 output modules are available, ranging in power from 60 Watts to 900 Watts, with outputs from 1V to 58V, and the ability to series and parallel connect, gives the engineer unlimited scope to create whatever voltages are required for their system.

The CoolX3000 is available as either an IEC 63268-1 certified power supply unit for ITE and Audio-Visual applications or as an IEC60601-1 3rd edition & IEC60601-1-2 4th edition (EMC) certified unit for medical applications. The C30S is the standard unit which covers ITE and AV while the C30M features medical certification. The CoolX3000 is completely user and field configurable. Outputs can be adjusted to the required set point voltages using onboard potentiometers, or digitally via PMBus, and can be configured in parallel or series for higher current and/or higher voltages.

The CoolX 3000 Series has a range of advanced features designed to make the system integration as simple and flexible as possible.  These include:

CoolX 3000 Series | Medical Grade Power Supplies | Versatile, Intelligent & Dependable | 3000W | DC-DC Power

A complete power supply is configured by selecting and inserting up to 12 DC output modules into the CoolX3000 unit to build a user defined power supply. This offers the advantages of a custom supply but is assembled from standard and modular building blocks. If output requirements change modules can be reconfigured.

Typical applications for the CoolX3000 include Medical diagnostic, lasers, dialysis, imaging and biochemical analysis.  The CoolX3000 is also suited to industrial applications including test & measurement, factory automation, printing as well as telecom and broadcast systems.

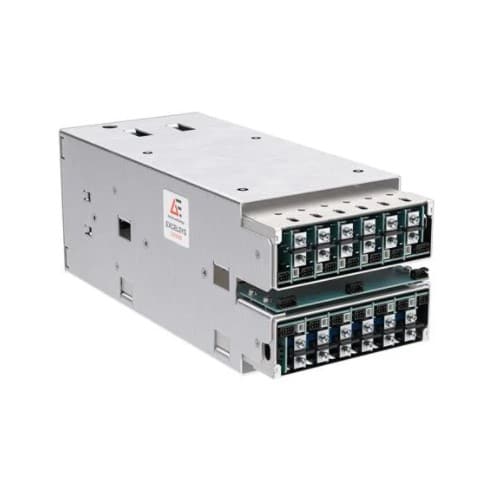

CoolX 3000 Series

Input: 85 – 264Vac
Outputs: 1 – 24 & 2.5 – 58V dc
Power: 3000 Watt
Tamb: -40°C to +60°C
Dims: 300 x 131 x 120 mm
UL / EN62368-1 EN60601 (2xMOPP)

COOLX1800 image

CoolX 1800 Series

Input: 85 – 264Vac
Outputs: 1 – 12 & 2.5 – 58V dc
Power: 1800 Watt
Tamb: -40°C to +70°C
Dims: 262 x 127 x 40.6 mm
UL / EN62368-1 EN60601 (2xMOPP)

CoolX1000 by Excelsys @Relec Electronics

CoolX 1000 Series

Input: 85 – 264Vac
Outputs: 1 – 12 & 2.5 – 58V dc
Power: 1000 Watt
Tamb: -40°C to +85°C
Dims: 254 x 165.1 x 39.1 mm
UL / EN62368-1 EN60601 (2xMOPP)

CoolX 600 Series

Input: 85 – 264Vac
Outputs: 1 – 4 & 2.5 – 58V dc
Power: 600 Watt
Tamb: -40°C to +85°C
Dims: 216 x 114 x 39 mm
UL / EN62368-1 EN60601 (2xMOPP)

CoolX Family | Versatile, Intelligent & Dependable | 3000W | DC-DC Power
