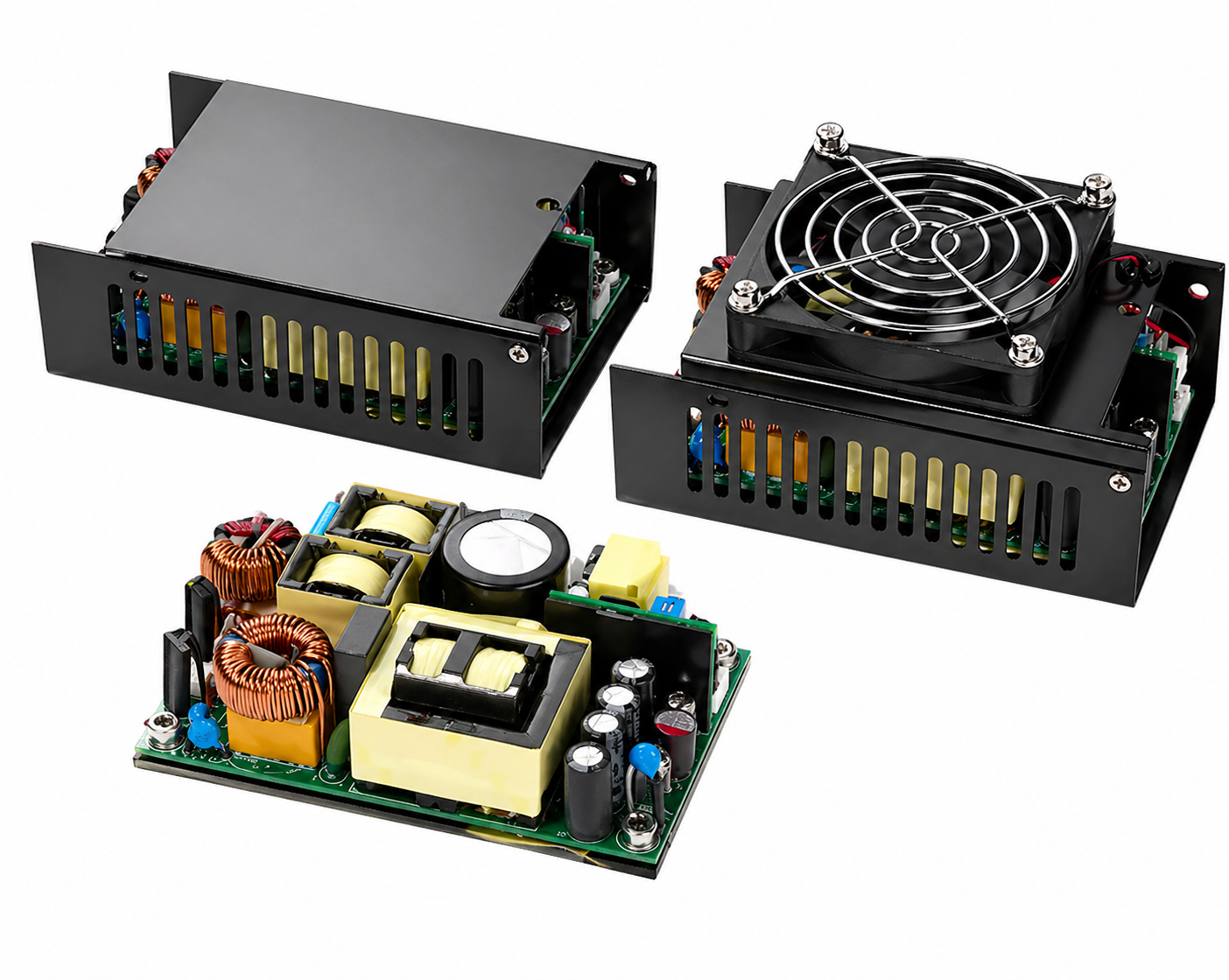

Small footprint, high performance
The CFM600S delivers a high-power density of up to 25.97 W/in³ and supports flexible thermal management, providing up to 510 W under natural convection or up to a full 600 W with conduction or forced-air cooling.
With integrated Power Factor Correction (PFC), the CFM600S features a compact 3” × 5” footprint. It operates across a universal input range of 80–264 Vac and offers eight single output voltage options: 12, 15, 18, 24, 28, 30, 36 and 48 Vdc.
Designed for space-constrained applications, the CFM600S is suited to 5G telecoms, industrial automation, digital signage and self-service kiosks.
This series delivers high efficiency of up to 94.5%, combined with no-load power consumption below 1 W. An inrush current of 8.5 A at 240 Vac and a maximum earth leakage current of 0.3 mA support reliable and safe system operation. The unit also offers robust isolation of up to 4000 Vac (input to output), supporting safe operation in demanding environments.
Key features
- Universal input range: 80–264 Vac
- High efficiency: up to 94.5%
- Compact 3” × 5” footprint
- Class I & Class II
- No-load power consumption <1 W
- IEC/EN/UL 62368-1 approved
- EN 55032 and 47 CFR FCC Part 15 compliant
- Active PFC meets EN 61000-3-2 (Class A and C)
- Design meets IEC/EN 60335-1
- Operating altitude up to 5000 m
- High power density up to 25.97 W/in³
- Up to 510 W under natural convection, 600 W with conduction or forced-air cooling
- Over-temperature protection
- PS On/Off remote control
- Power good and power fail signals
- +5 V standby, 12 V fan output
- Low inrush current
- Parallel operation option (active current sharing)
applications
- 5G telecoms
- Industrial automation (PLC/robotics)
- Commercial ovens
- Interactive vending machines
- Smart HVAC systems
- Industrial PCs
- Security and surveillance
- Digital signage
- Self-service kiosks
Compliance & safety
- Output overcurrent protection (OCP)
- Overvoltage protection (OVP)
- EN 61000-3-2 (Class A and C)
- IEC/EN/UL 62368-1
- IEC/EN 60335-1
- EN 55032 Class B and FCC Part 15 Class B
