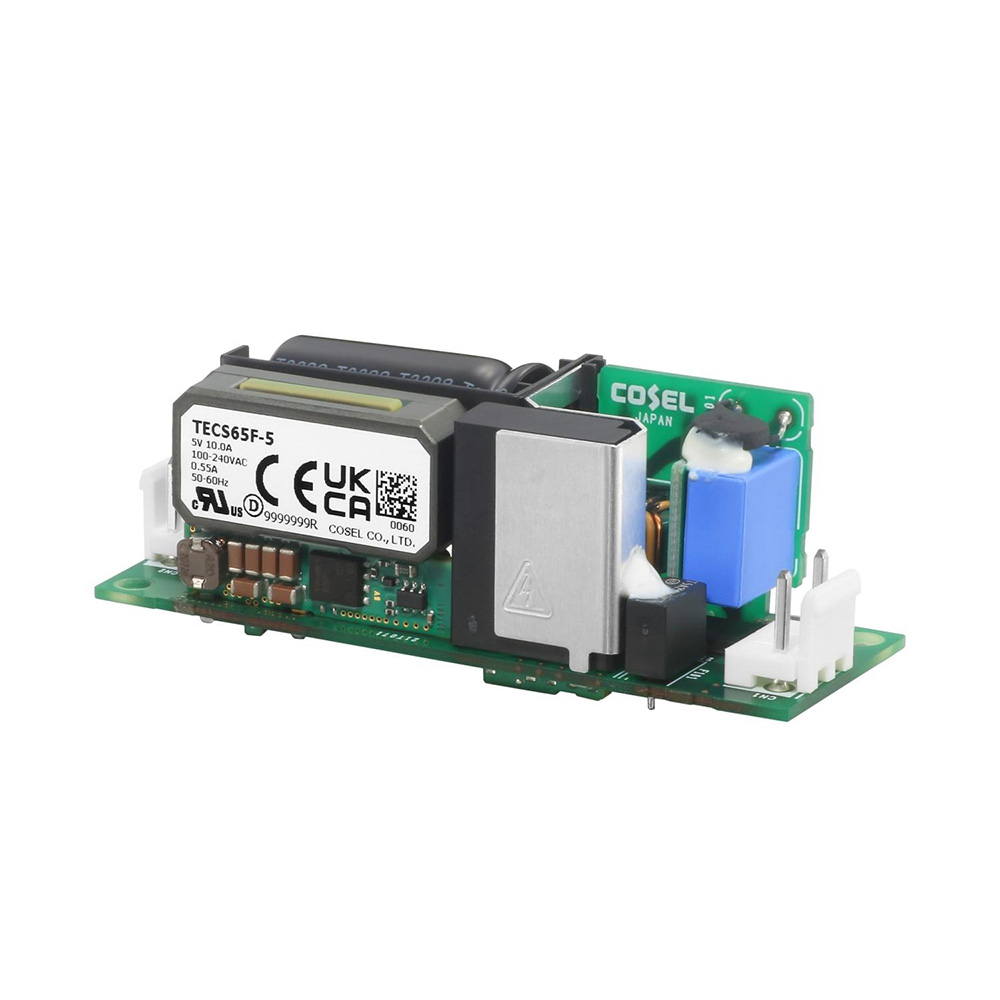

TECS65F Series
TECS65F Series from Cosel, 50-66W ac-dc power supplies.
Compact enclosed units with high efficiency, reinforced insulation and medical/ITE approvals.
download the TECS65F Series data sheet
Access detailed specifications, performance data, and technical drawings for the TECS65F Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
TECS65F Series delivers 50-66W from a universal 85-264V ac or 88-370V dc input, with efficiency up to 92%. Output models range from 3.3V to 48V, with low leakage current, reinforced 2 x MOPP insulation and full protection set. With convection cooling and compact size, the series is suited to medical devices, test equipment, factory automation and ITE applications. Certified to UL/EN62368-1, ANSI/AAMI ES60601-1 and EN60601-1.
