Home Computing Industrial Motherboards Thin Mini-ITXRPS101/103-R680E/Q670E/H610E

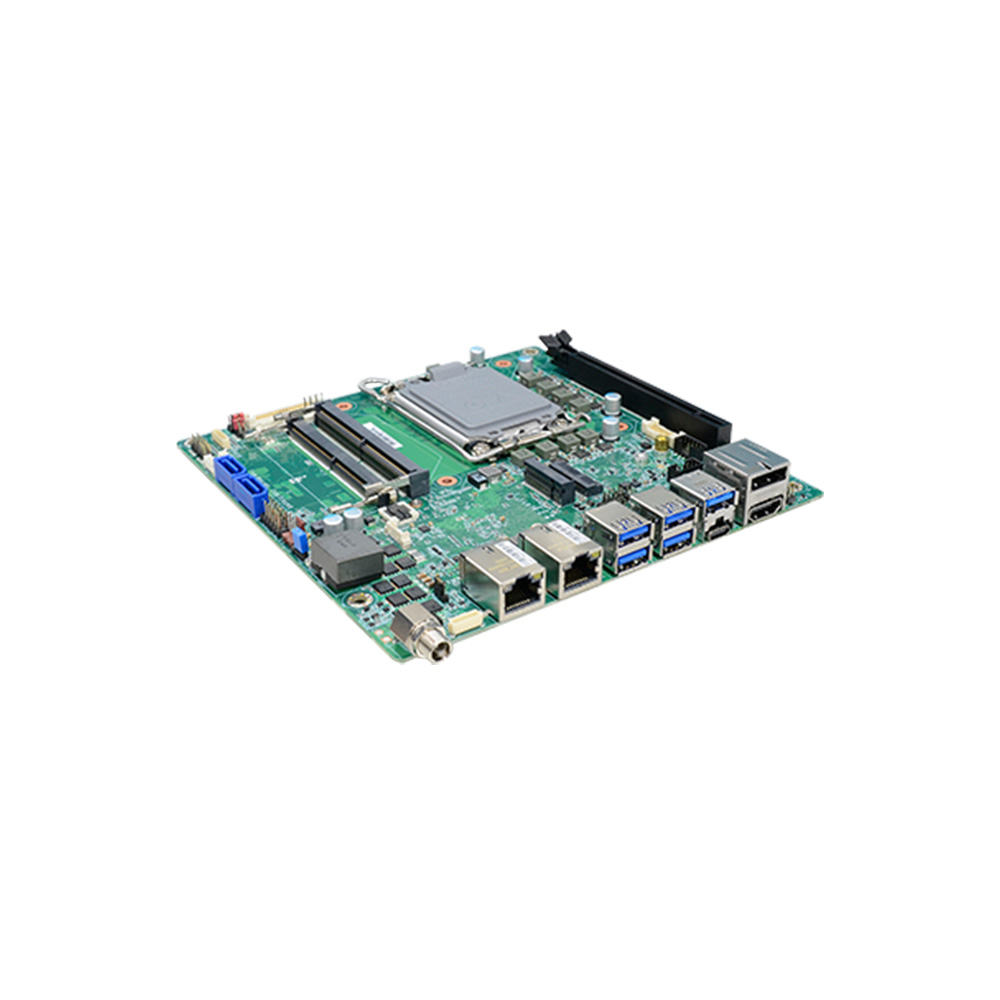

RPS101/103-R680E/Q670E/H610E

RPS101/103-R680E/Q670E/H610E from DFI, a compact Mini-ITX industrial motherboard combining high performance, expandability, and reliability.
It supports 14th to 12th Gen Intel Core processors with DDR5 memory, multiple display outputs, and rich industrial I/O.

Add to Quote

Add to Compare

Category: Industrial Motherboards, Thin Mini-ITX

Brands: DFI

download the RPS101/103-R680E/Q670E/H610E data sheet

Access detailed specifications, performance data, and technical drawings for the RPS101/103-R680E/Q670E/H610E in our comprehensive datasheet.

View downloads

Need a 3D drawing?

Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

request a drawing

Stuck on specs? Let’s chat

We’re online and ready to chat.

Open chat

The RPS101/103-R680E/Q670E/H610E is a Mini-ITX motherboard from DFI powered by 14th, 13th, and 12th Gen Intel Core processors (LGA1700 socket) up to 65W TDP. It supports up to 64GB DDR5 memory via two SO-DIMM slots and offers triple independent display support through HDMI, DisplayPort, and LVDS/eDP. Expansion is enabled via M.2 and PCIe x4 slots, with dual Intel 2.5GbE LAN for reliable connectivity. Designed for industrial control, automation, and AI vision systems, the board operates at 0°C to 60°C and meets CE and FCC standards for long-term reliability.

FEATURES

Computing Type Motherboard

Processor 14th/13th/12th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron

Memory Support 2 x DDR5 SO-DIMM up to 64GB

Storage Support 2 x SATA 3.0, 1 x M.2 2280 NVMe

Operating Temperature 0°C to 60°C

Cooling Method Fanless or active (CPU dependent)

Form Factor Mini-ITX

INDUSTRY

Industrial Automation Computing

No product variations found. This content will display product models when used on a WooCommerce variable product page.

Computing Type:Motherboard

Operating System Compatibility:Windows 11 IoT Enterprise, Windows 10 IoT Enterprise, Linux

Processor:14th/13th/12th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron

Chipset:Intel R680E / Q670E / H610E

Memory Support:2 x DDR5 SO-DIMM up to 64GB

Storage Support:2 x SATA 3.0, 1 x M.2 2280 NVMe

Expansion Slots:1 x PCIe x4 (Gen4), 1 x M.2 2280, 1 x M.2 2230

I O Ports:6 x USB 3.2 Gen2, 4 x USB 2.0, 2 x LAN, 1 x HDMI, 1 x DP++, 1 x LVDS/eDP, 4 x COM

Form Factor:Mini-ITX

Operating Temperature:0°C to 60°C

Ingress Protection:IP20

Safety Approvals:CE, FCC

Compliance Standards:Class A

Application Specific Ratings:Industrial grade

Manufacturer:DFI

Warranty:2 years

Cooling Method:Fanless or active (CPU dependent)

Mounting Options:Embedded integration, chassis mount

Weight:0.6 kg

Dimensions:170 x 170 mm

Lan Ports:2 x Intel i226-LM

Edge Interface:GPIO, RS-232, RS-422, RS-485, TPM 2.0

Longevity:10 years supply guarantee
