ASL553
ASL553 from DFI, a 3.5″ SBC powered by Intel Atom x6425RE processors, designed for industrial automation and embedded control.
It offers long lifecycle support, rich I/O, and wide operating temperature for fanless reliability in harsh environments.
download the ASL553 data sheet
Access detailed specifications, performance data, and technical drawings for the ASL553 in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION

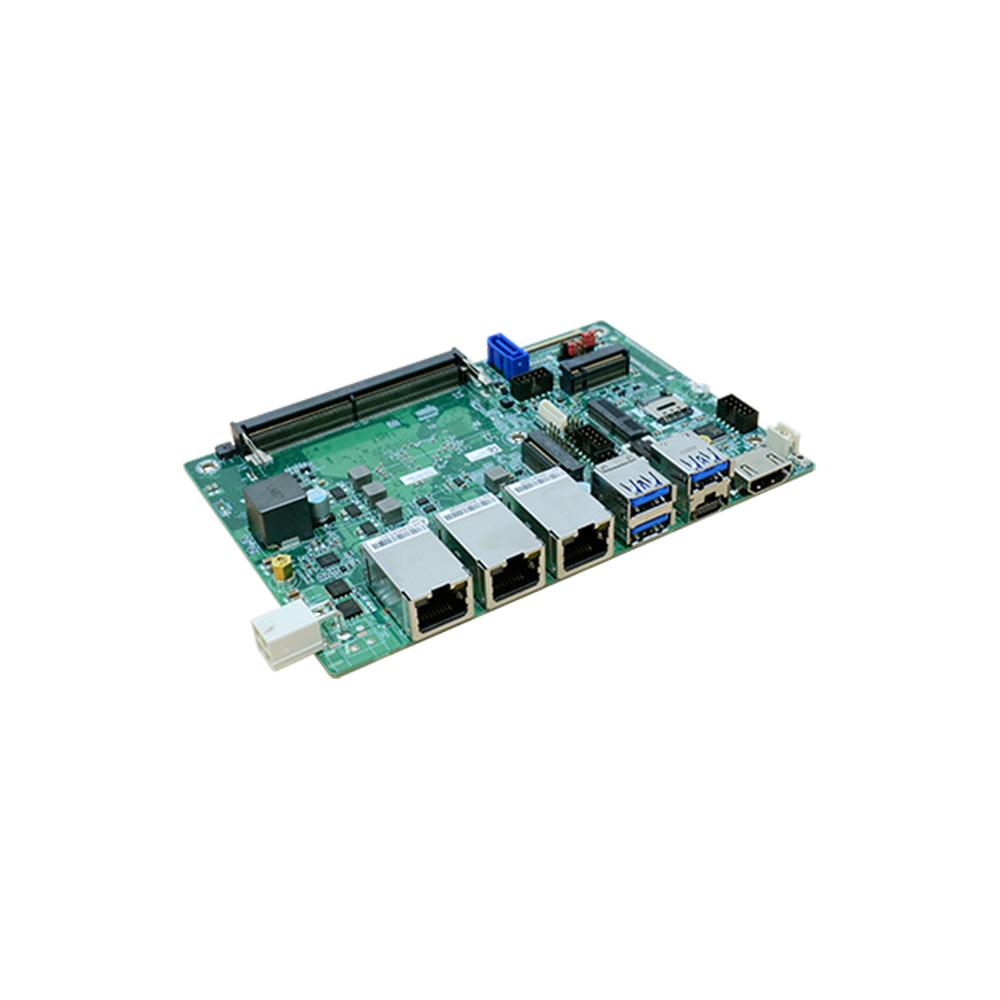

The ASL553 is a 3.5″ single board computer from DFI based on Intel Atom x6000RE Series processors (Elkhart Lake). It supports up to 32GB DDR4 memory, onboard eMMC up to 128GB, and provides triple independent displays via HDMI, DP++, and LVDS/eDP. Expansion includes M.2 and mini PCIe for NVMe, Wi-Fi, or LTE modules. Featuring dual Intel 2.5GbE LAN, multiple COM ports, USB 3.1/2.0, and 9-36V wide voltage input, the ASL553 is ideal for automation, HMI, and industrial IoT applications. With -40°C to 85°C operation and CE/FCC certification, it ensures consistent performance in demanding conditions.
