Home Computing Industrial Motherboards Thin Mini-ITXADN171/173

ADN171/173

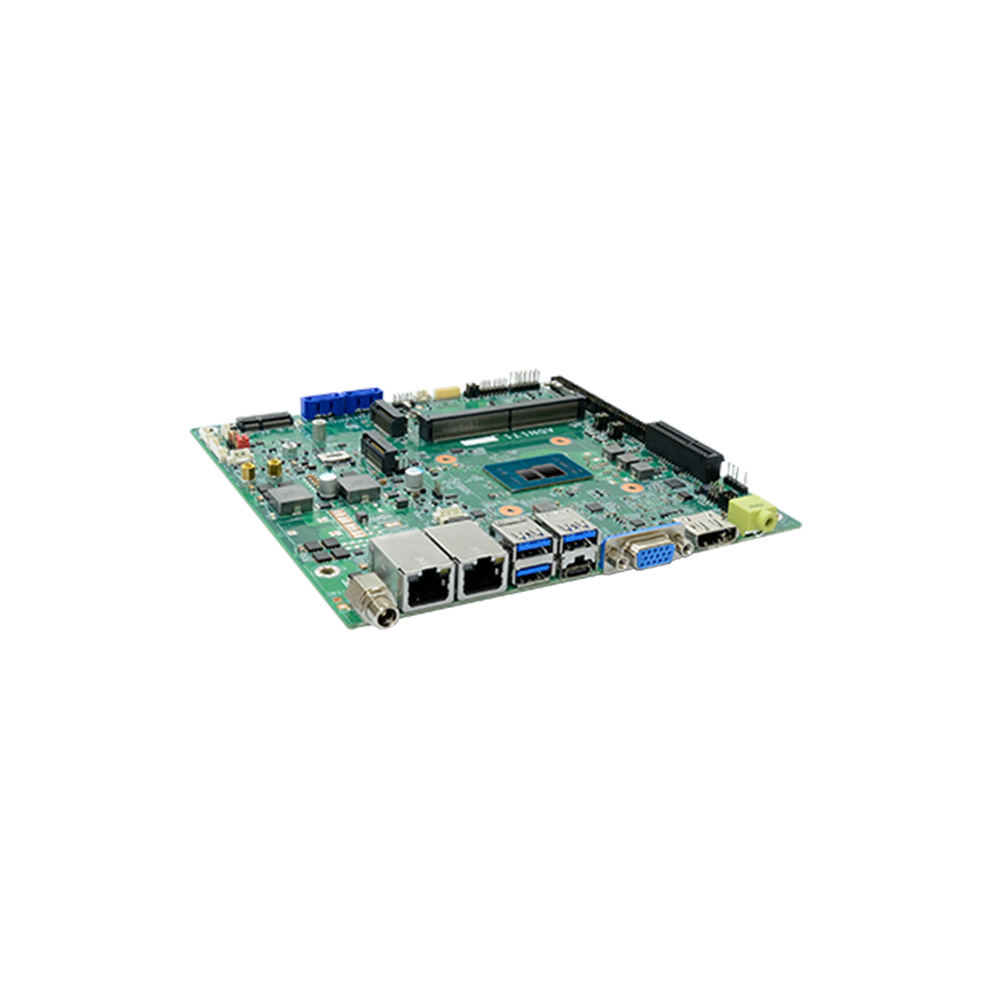

ADN171/173 from DFI, a compact Mini-ITX industrial motherboard powered by Intel Atom x7000E Series processors.
It offers fanless performance, efficient power consumption, and industrial durability for automation, IoT, and edge control systems.

Add to Quote

Add to Compare

Category: Industrial Motherboards, Thin Mini-ITX

Brands: DFI

download the ADN171/173 data sheet

Access detailed specifications, performance data, and technical drawings for the ADN171/173 in our comprehensive datasheet.

View downloads

Need a 3D drawing?

Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

request a drawing

Stuck on specs? Let’s chat

We’re online and ready to chat.

Open chat

The ADN171/173 is a Mini-ITX motherboard from DFI based on Intel Atom x7000E Series processors (Alder Lake-N). It supports up to 32GB DDR5 memory, onboard storage via M.2 and SATA, and features triple independent display outputs (HDMI, DP++, LVDS/eDP). Designed for reliable 24/7 operation, it includes dual Intel 2.5GbE LAN, multiple COM ports, and expansion through M.2 and Mini PCIe slots. With 9-36V dc input, -5°C to 65°C operating range, and CE/FCC certifications, the ADN171/173 is built for stable performance in industrial and embedded environments.

FEATURES

Computing Type Motherboard

Processor Intel Atom x7000E Series (Alder Lake-N)

Memory Support 1 x DDR5 SO-DIMM up to 32GB

Storage Support 1 x M.2 2280 NVMe, 1 x 2.5″ SATA

Operating Temperature -5°C to 65°C

Cooling Method Fanless

Form Factor Mini-ITX

INDUSTRY

Industrial Automation Computing

No product variations found. This content will display product models when used on a WooCommerce variable product page.

Computing Type:Motherboard

Operating System Compatibility:Windows 11 IoT Enterprise, Windows 10 IoT Enterprise, Ubuntu Linux 22.04

Processor:LGA-free Intel Atom x7000E Series (Alder Lake-N)

Chipset:Intel SoC

Memory Support:1 x DDR5 SO-DIMM up to 32GB

Storage Support:1 x M.2 2280 NVMe, 1 x 2.5″ SATA

Expansion Slots:1 x M.2 2230, 1 x M.2 2280, 1 x Mini PCIe

I O Ports:4 x USB 3.2 Gen2, 4 x USB 2.0, 2 x LAN, 1 x HDMI, 1 x DP++, 1 x LVDS/eDP, 4 x COM

Form Factor:Mini-ITX

Operating Temperature:-5°C to 65°C

Ingress Protection:IP20

Safety Approvals:CE, FCC

Compliance Standards:Class A

Application Specific Ratings:Industrial grade

Manufacturer:DFI

Warranty:2 years

Cooling Method:Fanless

Mounting Options:Embedded integration, chassis mount

Weight:0.6 kg

Dimensions:170 x 170 mm

Lan Ports:2 x Intel i226-LM

Edge Interface:GPIO, RS-232, RS-422, RS-485, TPM 2.0, DIO

Longevity:10 years supply guarantee
