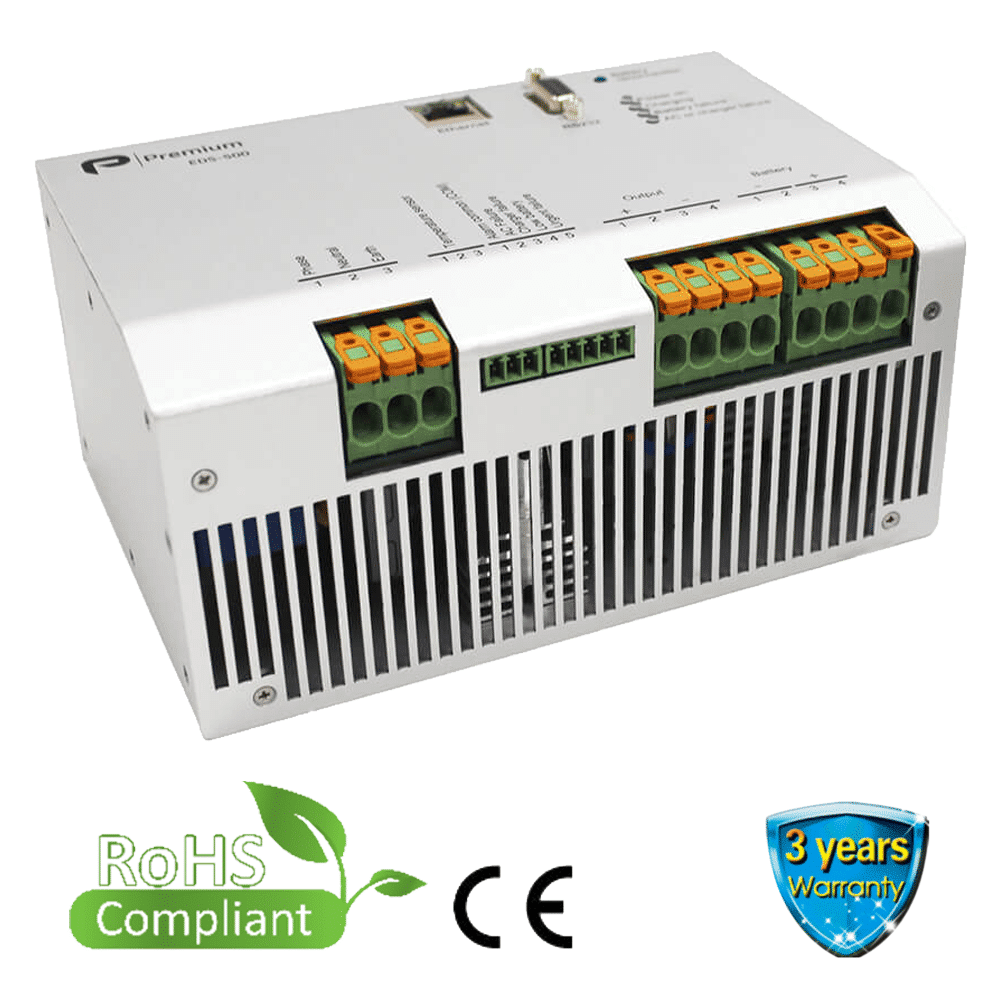

EDS-500 Series
EDS-500 Series from Premium PSU, 500W dc UPS battery chargers.
Universal ac input, configurable charging current and full UPS functionality with alarms.
download the EDS-500 Series data sheet
Access detailed specifications, performance data, and technical drawings for the EDS-500 Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The EDS-500 Series provides 500W with universal 90-264V ac input and output voltages from 12V to 110V. It combines a regulated power supply and a three-stage battery charger, supporting lead-acid batteries with configurable charging current via RS-232. Features include battery cut-off, temperature compensation, redundant ORing diode option, CAN or Ethernet communication, alarms for mains, UPS, low battery and urgent failures. Applications include industrial control, security, telecoms and transport. Certified to IEC62368-1, EN61000-6-2 and EN61000-6-4.
