CMS330

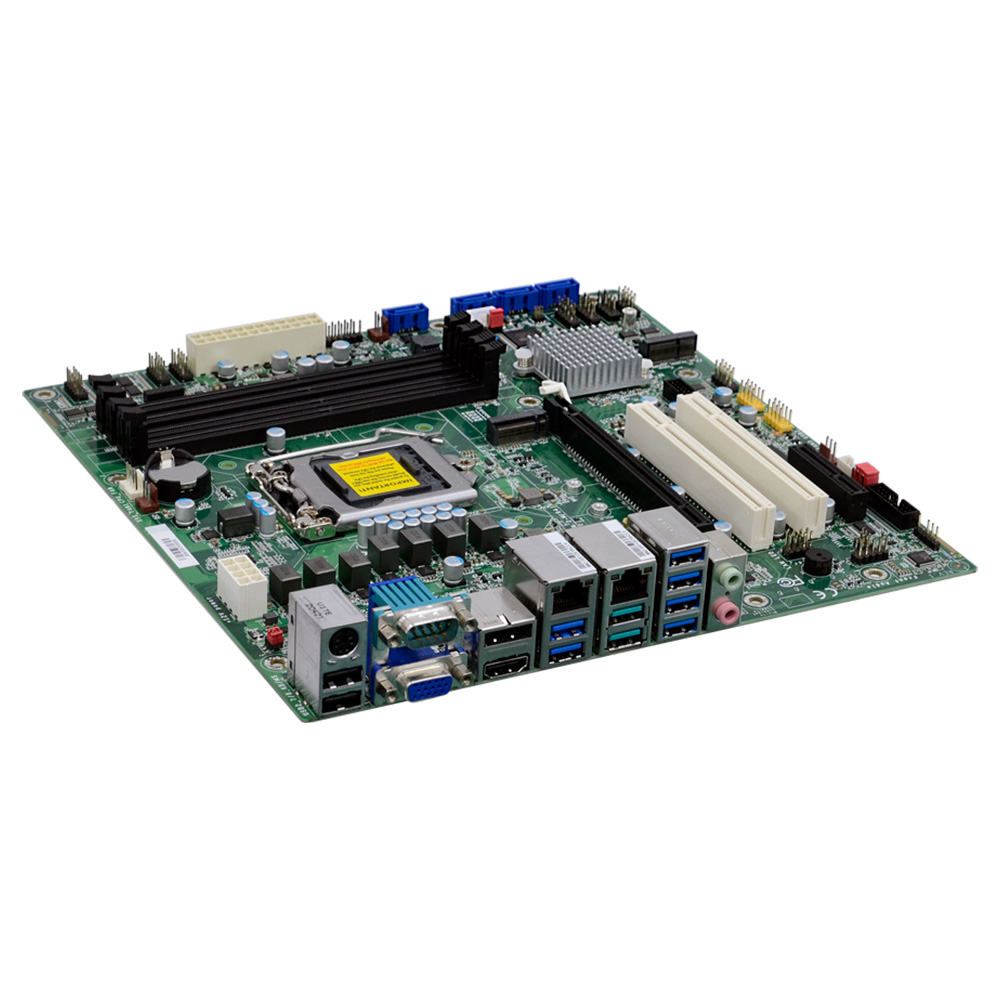

CMS330 from DFI, a Micro-ATX industrial motherboard supporting Intel 10th and 11th Gen Comet Lake processors.
It balances performance and reliability with industrial-grade stability for automation, medical, and embedded control systems.
download the CMS330 data sheet
Access detailed specifications, performance data, and technical drawings for the CMS330 in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The CMS330 is a Micro-ATX industrial motherboard powered by Intel Q470E or H420E chipsets, supporting Intel 10th/11th Gen Core i9/i7/i5/i3 LGA1200 processors up to 125W. It supports up to 128GB DDR4 memory via four U-DIMM slots and offers rich expansion with one PCIe x16, one PCIe x4, one PCI slot, and dual M.2 sockets (M-key NVMe and E-key CNVi). The CMS330 enables triple-display output via DisplayPort, HDMI, and VGA and provides multiple connectivity options including dual Intel LAN, up to ten USB ports, and four COM ports. With RAID support, TPM 2.0, and an operating range from 0°C to 60°C, this board is well-suited for industrial automation, medical imaging, and AI-enabled edge applications.
