ADS310

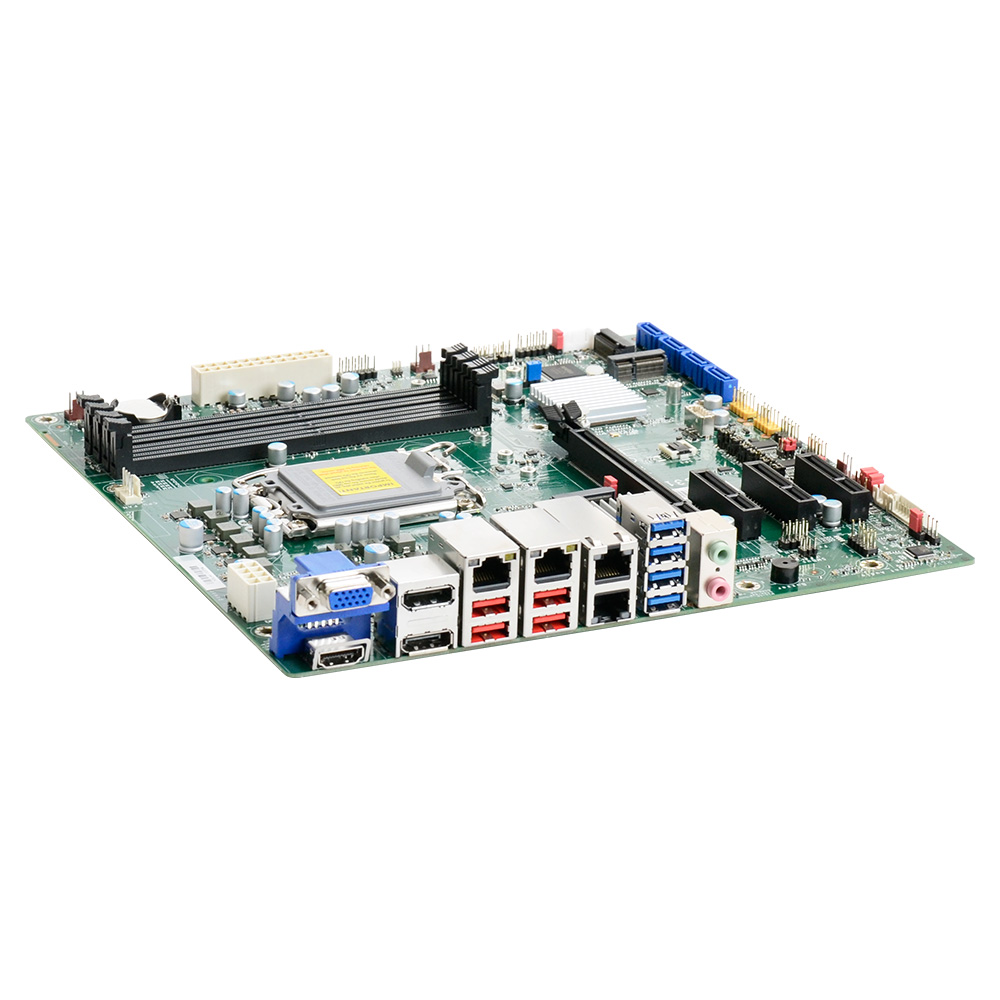

ADS310 from DFI, a Micro-ATX industrial motherboard designed for Intel 14th, 13th, and 12th Gen Core processors.
It combines advanced performance, rich expandability, and industrial-grade reliability for factory automation, medical, and edge computing applications.
download the ADS310 data sheet
Access detailed specifications, performance data, and technical drawings for the ADS310 in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The ADS310 is an industrial-grade Micro-ATX motherboard powered by Intel R680E or Q670E chipsets, supporting 14th, 13th, and 12th Gen Intel Core i9/i7/i5/i3 processors up to 125W. It features four DDR5 U-DIMM slots supporting up to 128GB memory, multiple PCIe Gen5/Gen4 expansion options including one PCIe x16, one PCIe x4, and two PCIe x1 slots, plus two M.2 interfaces (M-Key and E-Key). Connectivity includes dual Intel Ethernet, up to ten USB ports, SATA RAID support, and triple-display outputs via DisplayPort, HDMI, and VGA. The ADS310 offers long-life availability, extended operating temperature range from -5°C to 65°C, and certifications for industrial reliability, making it ideal for automation, AI control, and embedded edge systems.
