CFM200M Series

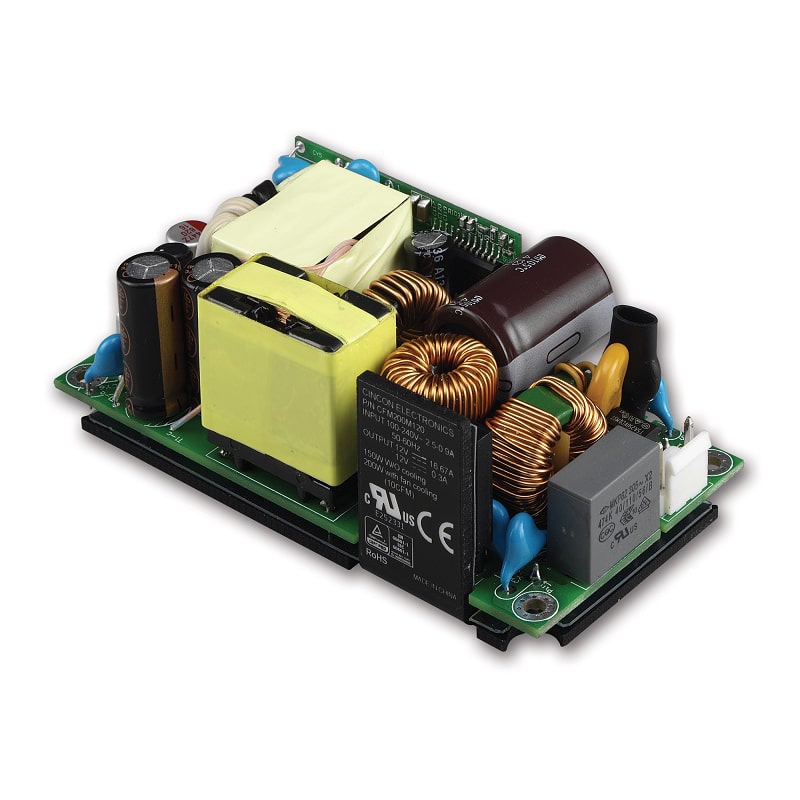

CFM200M Series from Cincon, 200W medical AC-DC power supply
Compact 2” x 4” footprint with 2 MOPP isolation, low leakage and multiple mounting formats.
download the CFM200M Series data sheet
Access detailed specifications, performance data, and technical drawings for the CFM200M Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The CFM200M Series is a 200W medical ac-dc power supply with universal 80-264V ac input and efficiencies up to 94%. With single outputs from 12V to 48V, it offers convection-cooled 150W or full 200W with forced air. Available in open-frame, PCB mount, chassis mount and DIN-rail versions, it is ideal for medical, home healthcare and industrial devices. Features include low leakage current (<100µA), Class I and II options, remote on/off and full protection functions. Certified to IEC/EN/UL60601-1, IEC/EN/UL62368-1 and EN60335-1.
