CBI1235A Series

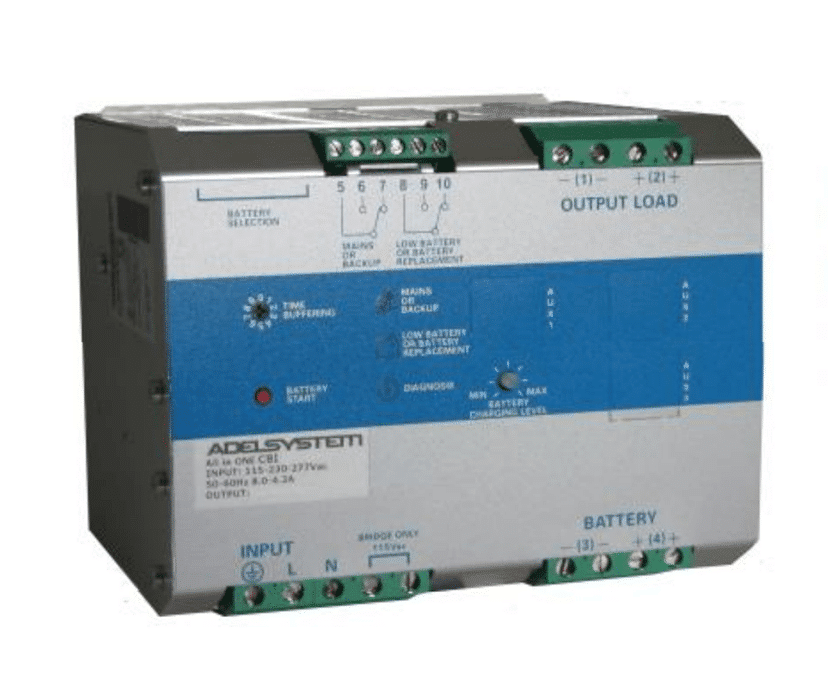

CBI1235A Series from ADEL System, 420W DIN-rail dc-UPS
High power 12V dc-UPS with 35A output, advanced charging, and diagnostics for demanding loads.
download the CBI1235A Series data sheet
Access detailed specifications, performance data, and technical drawings for the CBI1235A Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
CBI1235A Series delivers 12V 35A output from 90-305V ac input with efficiency up to 91%. It integrates power supply, battery charger, and UPS in one DIN-rail module with IUoU 4-stage charging, flat battery recovery, and load prioritisation. Advanced Battery Care extends battery life with diagnostics, LED blink codes, and automatic allocation of power between load and battery. Applications include automation, fire detection, security, and telecoms. Certifications include EN62368-1, EN60950-1, EN60335-2-29, and EN54-4.
