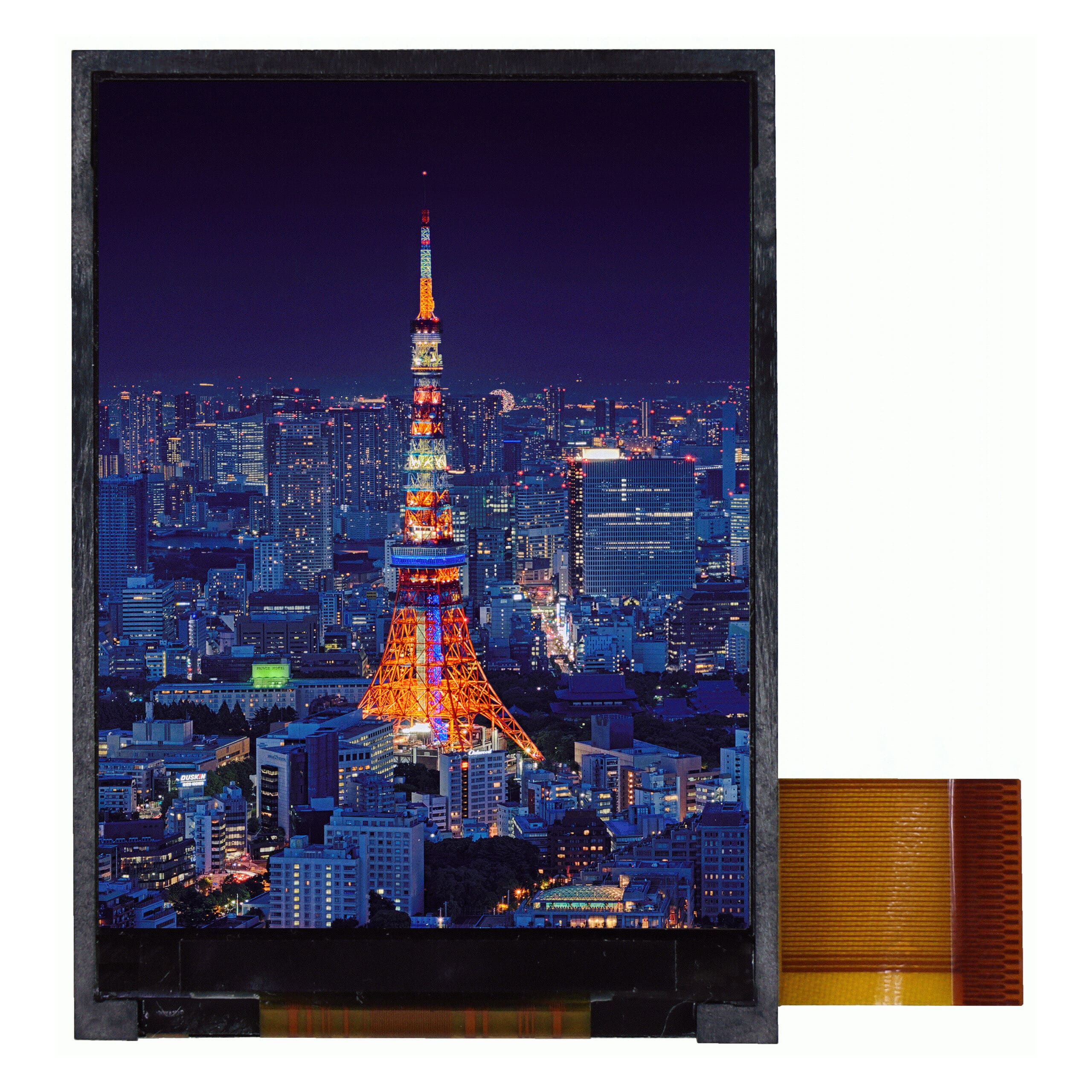

2.4″ QVGA IPS TFT LCD Display
The 2.4″ QVGA IPS TFT LCD Display from DigiWise, a compact, high-brightness display module designed for handheld and embedded systems.
With IPS technology, 1000 cd/m² brightness, and wide viewing angles, it delivers excellent clarity and colour accuracy for industrial and portable use.
download the 2.4″ QVGA IPS TFT LCD Display data sheet
Access detailed specifications, performance data, and technical drawings for the 2.4″ QVGA IPS TFT LCD Display in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The 2.4″ QVGA IPS TFT LCD Display features a 240 x 320 resolution in a compact 2.4″ format. It utilises an IPS, normally black transmissive panel for wide viewing angles and stable colour reproduction. With a typical brightness of 1000 cd/m² and a contrast ratio of 800:1, this display ensures crisp visibility even in bright environments. It supports both MCU 8080 and serial interfaces, includes an ST7789V driver IC, and operates from -20°C to +70°C. Ideal for handheld instruments, portable controls, and compact industrial devices. Optional enhancements include optical bonding, cover lens customisation, and anti-glare coatings. Certified to CE, RoHS, and REACH.
